IntelliFlo3®​ Variable Speed & Flow Pool Pump

Main Content Starts Here

Two-Time-Winner. The IntelliFlo3® Variable Speed & Flow Pool Pump Wins Again from Pool Nation.

Previous
Next

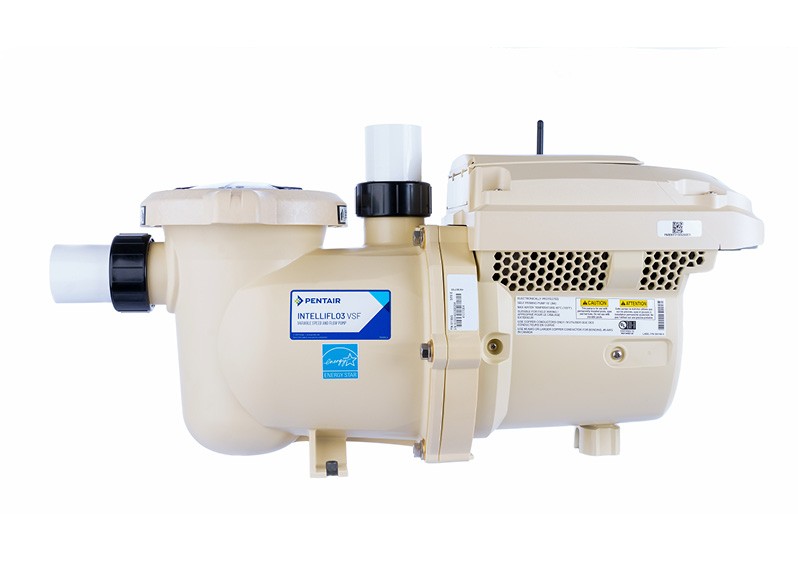

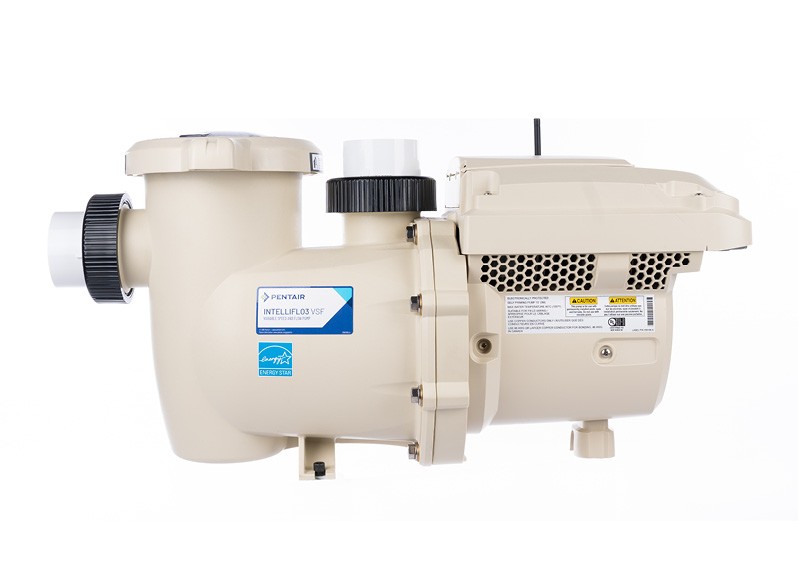

IntelliFlo3®​ Variable Speed & Flow Pool Pump

QUIETLY POWERFUL, BRILLIANTLY EFFICIENT

The award-winning IntelliFlo3 VSF Pump is the pinnacle of new Pentair Pool technology, connecting with the Pentair Pool and Pro apps to allow pool owners and professionals to monitor and control anytime, anywhere. With the ability to connect two additional pool equipment products with Wi-Fi enabled automation, the IntelliFlo3 pump boasts innovative flow technology and a quiet operation, representing the future of efficient pool maintenance and ownership.

  • Proprietary flow technology maintains the pool's optimal flow, adjusting to pool conditions and helping pool owners save up to 90% in energy consumption**
  • Only pump with Wi-Fi enabled automation; unlocks the ability to connect two additional pool products for more streamlined pool management
  • Optional touchscreen adds a modern touch and easy local operation for on-site professionals and pool owners
  • Quieter performance compared to single speed pumps, ensuring a more desirable backyard pool experience
  • Available in two horsepower options: 1.5 and 3.0 HP to suit a variety of pools
  • ENERGY STAR® Certified and compliant with the Department of Energy's latest standards on variable speed pumps
Explore purchase options available for this product.
Where to Buy

Transforming the Pool

Roughly 20 years ago, Pentair brought the variable speed and flow technology to the U.S. — a transformative innovation that remains the cornerstone of the pool industry. And that innovation continues today with the IntelliFlo3 pump.

*Based on pump performance, when being used for pool water filtration of up to 93 gallons/minute on system friction curve C, equating to the ability to achieve at least 2 turns per day on pools less than 65,000 gallons in water volume or for water features with flow performance up to 170 gallons per minute at 25 ft of Total Dynamic Head

**Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh In a 20,000-gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm. plumbing size and length, pump model, service factor and other hydraulic factors. Individual Weighted Energy Factor (WEF) scores and savings may vary by model.

QUIETER OPERATION, SUPERIOR PERFORMANCE

The IntelliFlo3 pump performs more quietly compared to single speed pumps. Check out how the pump's sound compares at various distances.

JPG | IF3 PDP Quiet Design

Looking for ultimate pool control?

Explore all automation solution options to find what’s right for your pool.
Water and air bubbles over blue background.; Shutterstock ID 520392925; purchase_order: Flow Teams Background; job:

THE BENEFITS OF VARIABLE SPEED PUMPS

See why variable speed pumps are the smarter choice compared to single speed pumps.

Specifications

Item #DESCRIPTIONTHPWEFMax Input VoltageFREQUENCYFull Load AmpsPort Size (NPT)Weight (LBS)CERTIFICATIONS
011075IntelliFlo3 VSF 3.0 HP37.1208-23050/6012.4-11.22" x 2" or 2.5" x 2.5" or 3" x 3"55UL‡, NSF/ANSI 50§
011076IntelliFlo3 VSF 3.0 HP with I/O board37.1208-23050/6012.4-11.22" x 2" or 2.5" x 2.5" or 3" x 3"55UL‡, NSF/ANSI 50§
011065IntelliFlo3 VSF 1.5 HP1.59.4115/208-23050/6012/6.4-5.91.5" x 1.5" or 2" x 2"48UL‡, NSF/ANSI 50§
011066IntelliFlo3 VSF 1.5 HP with I/O board1.59.4115/208-23050/6012/6.4-5.91.5" x 1.5" or 2" x 2"48UL‡, NSF/ANSI 50§
356159ZIntelliFlo3 VSF Universal Touchscreen Add On
356365ZIntelliFlo3 VSF Optional Universal Relay Board Kit
357831ZIntelliFlo3 VSF Riser Base Kit1.5
357832ZIntelliFlo3 VSF Riser Base Kit1.5
357833ZIntelliFlo3 VSF Riser Base Kit3.0
Item #DESCRIPTIONTHPWEFMax Input VoltageFREQUENCYFull Load AmpsPort Size (NPT)Weight (LBS)CERTIFICATIONS
011075IntelliFlo3 VSF 3.0 HP37.1208-23050/6012.4-11.22" x 2" or 2.5" x 2.5" or 3" x 3"55UL‡, NSF/ANSI 50§
011076IntelliFlo3 VSF 3.0 HP with I/O board37.1208-23050/6012.4-11.22" x 2" or 2.5" x 2.5" or 3" x 3"55UL‡, NSF/ANSI 50§
011065IntelliFlo3 VSF 1.5 HP1.59.4115/208-23050/6012/6.4-5.91.5" x 1.5" or 2" x 2"48UL‡, NSF/ANSI 50§
011066IntelliFlo3 VSF 1.5 HP with I/O board1.59.4115/208-23050/6012/6.4-5.91.5" x 1.5" or 2" x 2"48UL‡, NSF/ANSI 50§
356159ZIntelliFlo3 VSF Universal Touchscreen Add On
356365ZIntelliFlo3 VSF Optional Universal Relay Board Kit
357831ZIntelliFlo3 VSF Riser Base Kit1.5
357832ZIntelliFlo3 VSF Riser Base Kit1.5
357833ZIntelliFlo3 VSF Riser Base Kit3.0

‡ ‘UL’ indicates that the pump bears a UL mark, and/or a cUL mark, signifying evaluation to UL 1081, the US Standard for Safety of Swimming Pools Pumps, Filters, and Chlorinators, and/or to CSA C22.2 No. 108, the Canadian Standard for Liquid Pumps.

§ ‘NSF/ANSI 50’ indicates that the pump bears a mark signifying evaluation to NSF/ANSI/CAN 50, the Standard for Equipment and Chemicals for Swimming Pools, Spas, Hot Tubs, and Other Recreational Water Facilities.
