Shurflo Vacuum Regulators
Shurflo vacuum regulators help maintain consistent vacuum level and adjust for varying flow rates for beverage and Brix pumps, facilitating the intake of liquid from a pressurized source. Positioned at the pump inlet, these vacuum regulators effectively decrease pressure, allowing the pump to be interconnected in series for long-distance pumping applications.
- Ports: 3/8” (10mm) barb elbow fittings
- Cracking pressure: 0 -1 psi (0 - .1 bar)
- Maximum pressure: 100 psi (6.8 bar)
- Quick and easy connect/disconnect functionality
Models / Specs
| Item # | Image | Model Number | Inlet Connection | Outlet Connection | Pressure (PSI) |
|---|---|---|---|---|---|

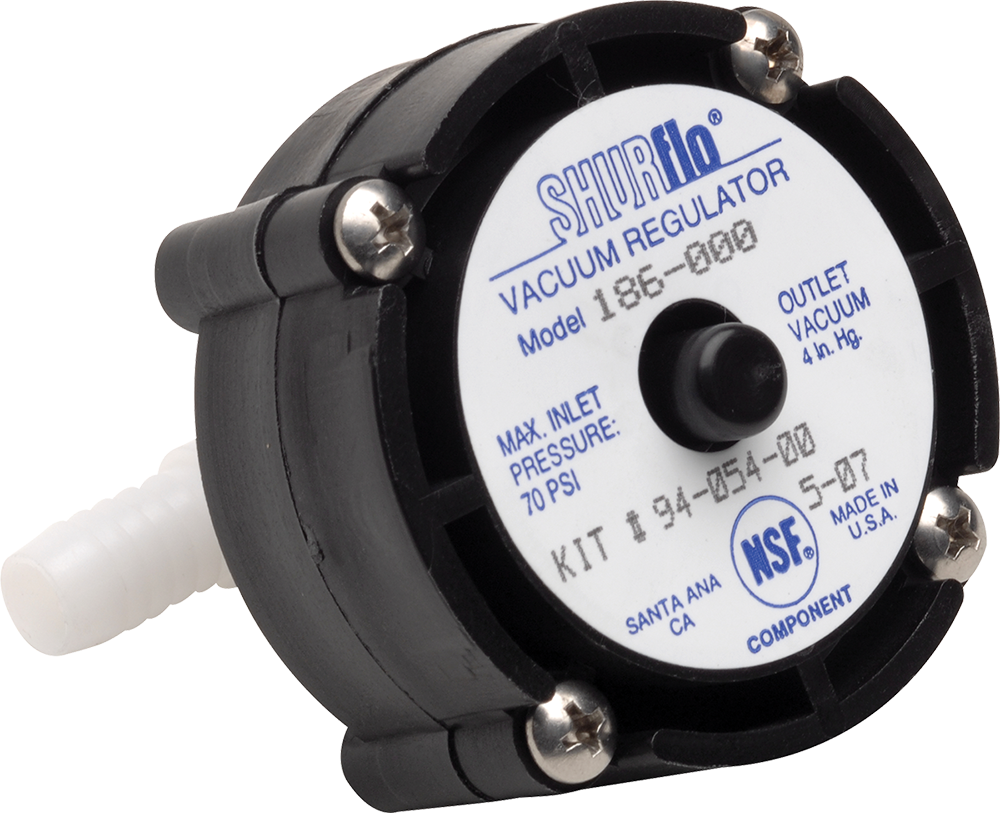

| 94-054-00 |  |
Vac Reg | 3/8" Barb | 3/8" Barb | 70 |
| 94-054-02 |  |
Vac Reg, EU | 3/8" Barb | 3/8" Barb | 70 |
