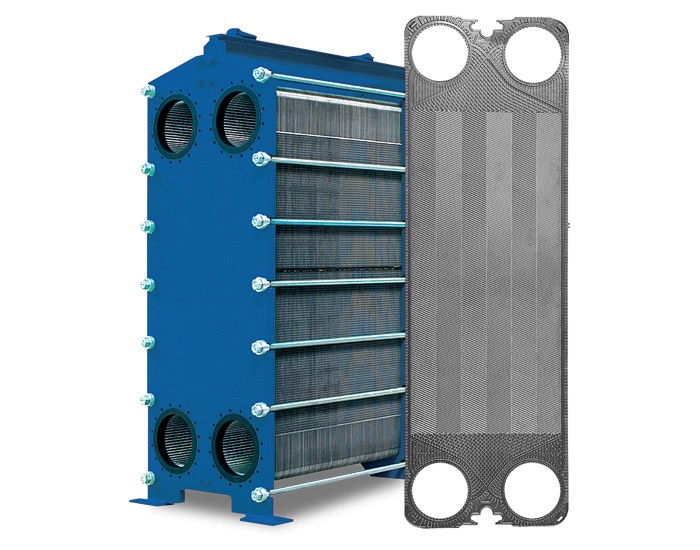

Aurora's Plate & Frame Heat Exchangers use corrugated plates creating more heat transfer with less materials. Gasketed plate and frame heat exchangers are used for liquid-to-liquid applications such as HVAC, chemical, sugar, marine, food, and renewable energy and power.

KEY FEATURES

• Gasketed plate and frame heat exchangers are used for liquid-to-liquid applications such as HVAC, chemical, sugar, marine, food, renewable energy and power
• Energy cost savings with corrugated plates creating more heat transfer with less materials
• Lower up-front costs for installation and maintenance thanks to fewer plates
• Quality construction and materials mean your purchase will last longer than other, similar heat exchange products
• Versatility in a wide-range of sizes, materials and configurations to fit your needs and the particular footprint of your product
• ASME and PED pressure vessel certifications
• 100% CFD Modeled plate design for optimal heat transfer
• ASME and PED pressure vessel certifications
• Wide-range of sizes, materials and configurations
• Made in USA

AURxx1 - AURxx5

• Maximum pressure is 300 PSIg
• Maximum temperature is 410°F (requires Viton, max temp for EPDM is 300°F)
• Maximum flow is 8,400 G.P.M. per HX

AURxx9

• Maximum pressure is 360 PSIg
• Maximum temperature is 410°F (requires Viton, max temp for EPDM is 300°F)
• Maximum flow is 4000 G.P.M. per HX
