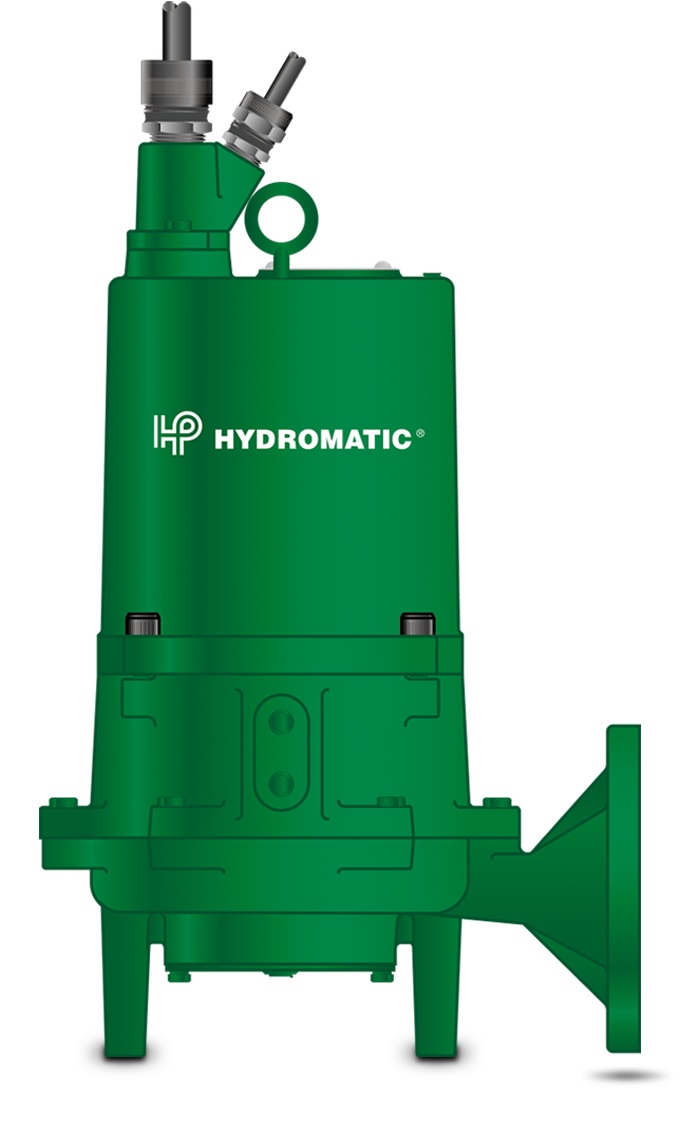

Pentair Hydromatic HPGH/HPGHH Centrifugal Grinder Semi Open Impeller

KEY FEATURES

  • Dual seals for maximum moisture protection
  • Oil-filled motor for maximum heat dissipation and constant bearing lubrication
  • Exclusive dual cutter design cuts solids to the smallest particle size
  • Semi-open impeller provides steep non-overloading operating curve
  • Available configurations, rails and accessories
    • Rail Systems Available
    • Controls and Accessories Available

Size and Configure Hydromatic Pumps

Launch Encompass

Locate a distributor near you

View Locations

Specifications

RPM:  3450 for 60 Hz and 2900 for 50 Hz
Phase:  1Ø / 3Ø
Horse Power:  3, 5, and 7HP
Motor Type:  Oil cooled induction
Temp:  140º F Ambient
Operation:  Intermittent
Thermal Overload:  Bi-Metallic
Temperature:  Max. Water 140º F
NEMA Design:  1Ø Type L, 3Ø Type B
Insulation:  Class F
Discharge:  2" NPT on HPGH, 3" 125# Flange on HPGHH
Unit Weight:  85 lbs.
Power Cord:  Type STW/STW-AWater Resistant600 V, 60¾ CCSA and UL Approved
