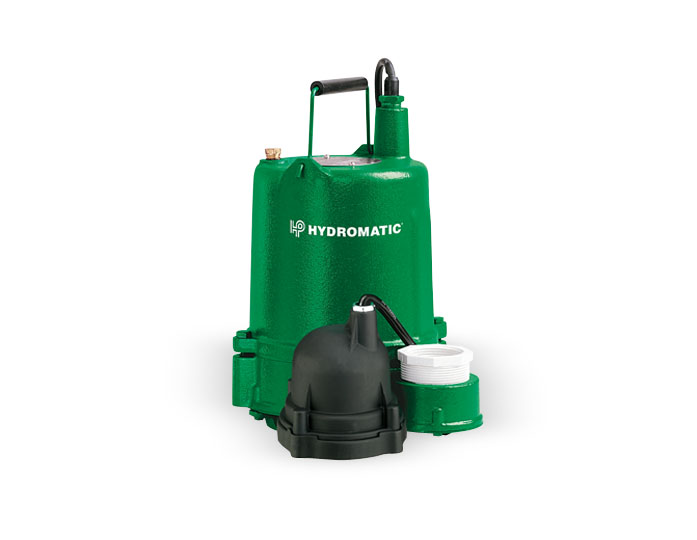

Pentair Hydromatic OSP Series 1/2 HP Cast Iron/Naval Bronze Effluent Pumps
The Hydromatic OSP50 submersible pump is specifically designed to meet the demands of residential sump, elevator pit, septic tank effluent, industrial circulator and transfer tank applications.
Key Features
- Continuous Duty Rated
- Naval Bronze model Available for Corrosion Resistance
- Carbon/Ceramic Type 21 Mechanical Shaft Seal
- Oil-filled Motor with Automatic Thermal Overload for Maximum Protection
- Upper and Lower Single-Row Ball Bearing Construction
- Piggyback Plug Available for Easy Maintenance and Replacement
Warranty
12 months from date of purchase or 18 months from date of manufacture, whichever comes first
Specifications
| Item # | Horsepower | Full Load Amps | Motor Type | RPM |
|---|---|---|---|---|
| OSP50MI | 1/2 | 9.5 | Split Phase | 1750 |
| OSP50M2 | 1/2 | 5.2 | Split Phase | 1750 |
| OSP50AI | 1/2 | 9.5 | Split Phase | 1750 |
| OSP50A2 | 1/2 | 5.2 | Split Phase | 1750 |
| OSP50AB1 | 1/2 | 9.5 | Split Phase | 1750 |
| Item # | Horsepower | Full Load Amps | Motor Type | RPM |
|---|---|---|---|---|
| OSP50MI | 1/2 | 9.5 | Split Phase | 1750 |
| OSP50M2 | 1/2 | 5.2 | Split Phase | 1750 |
| OSP50AI | 1/2 | 9.5 | Split Phase | 1750 |
| OSP50A2 | 1/2 | 5.2 | Split Phase | 1750 |
| OSP50AB1 | 1/2 | 9.5 | Split Phase | 1750 |
BODY CONSTRUCTION: Class 30 Cast Iron or Naval Bronze
MAXIMUM HEAD: 25 ft. (7.6 m)
MAXIMUM CAPACITY: 60 GPM (3.8 LPS)
FLOW at 10' LIFT: 52 GPM
SWITCH TYPE: Diaphragm Pressure Switch
MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30"
DISCHARGE PIPE SIZE: 1-1/2" NPT (38.1 mm) OR 2" NPT (50.8 mm)
MAXIMUM SOLIDS HANDLING SIZE: 5/8"
AMP DRAW (full load): 9.5 on 115v / 5.2 on 230v
CORD LENGTH: 10' SJTW (20' optional)
VOLTAGE: Available in 115v or 230v AC, 60 Hz (Naval Bronze models in 115v only)
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
MOTOR: 1/2 HP split-phase with Thermal Overload
IMPELLER OPTIONS: Open vane Naval Bronze or Thermoplastic Vortex
