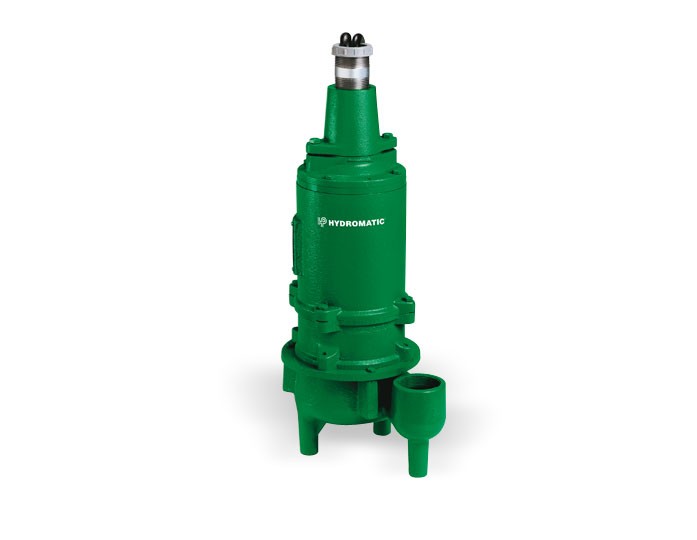

Pentair Hydromatic SPX Series Explosion-Proof Effluent Pumps

Rugged, submersible, explosion-proof sump pumps for municipal, commercial and industrial use.

KEY FEATURES

  • Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication
  • Recessed Impeller Reduces Radial Bearing Loads, Increases Bearing Life
  • High Torque Capacitor Start Single-Phase Motor for Assured Starting Under Heavy Load
  • On-Winding Heat Sensors Will Stop Motor In Case of Overheating To Prevent Costly Motor Damage
  • High-head version available

WARRANTY

12 months from date of purchase or 18 months from date of manufacture, whichever comes first.

Explore purchase options available for this product.
Where to Buy

Performance Curves

PerformanceCurves_Explosion-Proof Effluent Pumps

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM HEAD:  SPX50: 36' / SPX50H: 36'
MAXIMUM CAPACITY:  SPX50: 95 GPM / SPX50H: 73 GPM
FLOW at 10' LIFT:  SPX50: 95 GPM / SPX50H: 68 GPM
SWITCH TYPE:  Manual or Control Panel Req'd
DISCHARGE PIPE SIZE:  SPX50 2" / NPTSPX50H 1-1/2"
MAXIMUM SOLIDS HANDLING SIZE:  SPX50: 2" / SPX50H: 3/4"
AMP DRAW (full load):  5.9 amps on 208v / 5.3 amps on 230v
CORD LENGTH:  20' Type SOW-A 14/4
VOLTAGE:  Available in 208v or 230v AC, 1-Phase
MAXIMUM LIQUID TEMPERATURE:  140°F (60°C)
MOTOR:  1/2 HP Capacitor Start / Induction Run
IMPELLER MATERIAL:  Cast Iron
SHAFT MATERIAL:  416 Stainless Steel
SHAFT SEAL:  Dual Carbon/Ceramic
