Pentair Hydromatic 118 1/3 HP Packaged Sump System

Economical, above-floor system that adds a drain without major remodeling.

KEY FEATURES

  • Allows the Ability to Add a Drain Without Breaking Concrete
  • Ideal for Wet Bars, Air Conditioner or Dehumidifier Condensate, and Laundry Trays
  • Available Assembled or Unassembled
  • Package Includes:
    • 10 Gallon Polyethylene Sump Box
    • Cover
    • Gasket Package
    • Discharge Nipple
    • Check Valve
    • Pump
  • The V-A1  1/3 HP Pump is Standard

WARRANTY

Limited 3 year warranty

Explore purchase options available for this product.
Where to Buy

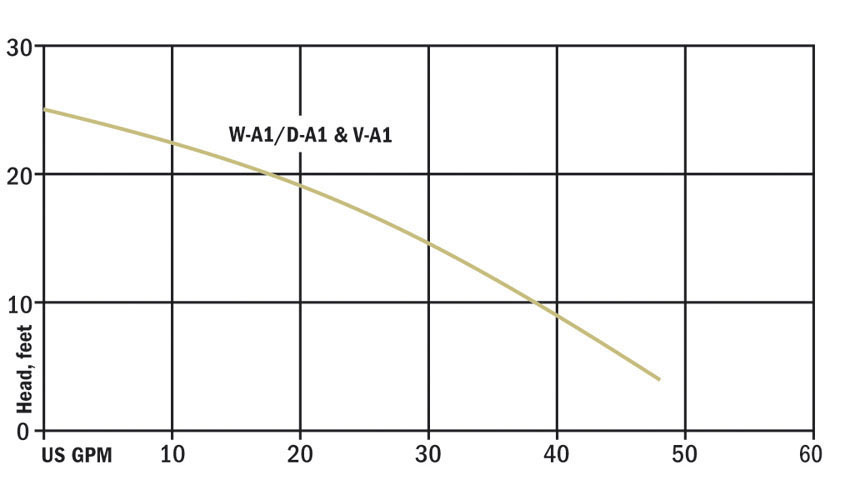

Performance Curves



Specifications

BODY CONSTRUCTION:  Pump: Cast Iron and Engineered Thermoplastic / Box: Polyethylene
HORSEPOWER:  1/3 HP
MAXIMUM HEAD:  25 ft. (7.6 m)
MAXIMUM CAPACITY:  48 GPM (2.8 LPS)
FLOW at 10' LIFT:  38 GPM
SWITCH TYPE:  Available with Wide-Angle Tethered Float, Vertical Float, or Diaphragm Pressure Switch
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  1/2"
AMP DRAW (full load):  8 Amps
CORD LENGTH:  10' SJTW (20' optional)
VOLTAGE:  115v AC, 60 Hz
MOTOR:  1/3 HP shaded pole with thermal overload
IMPELLER:  Thermoplastic Vortex
