Pentair Hydromatic 118-5 1/4 HP Packaged Sump System

Economical, above-floor system that adds a drain without major remodeling.

KEY FEATURES

  • Proven 1/4 HP Submersible Sump Pump Model BV-A1
  • Molded-In Tank Retainers to Secure Pump
  • Heavy-Duty 5 gallon Polypropylene Tank
  • Oil-Filled Motor with Cast Iron Housing
  • Reliable Vertical Switch Operation
  • Easy-To-Clean Removable Filter
  • Available Assembled or Disassembled

WARRANTY

Limited 3 year warranty

Explore purchase options available for this product.
Where to Buy

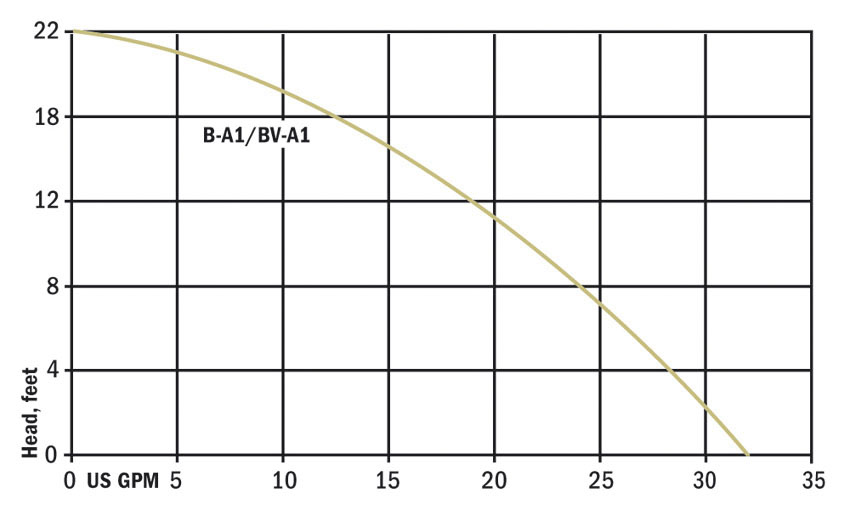

Performance Curves



Specifications

BODY CONSTRUCTION:  Pump: Thermoplastic / Basin: Polypropylene
HORSEPOWER:  1/4 HP
MAXIMUM HEAD:  22'
MAXIMUM CAPACITY:  32 GPM (2.01 LPS)
FLOW at 10' LIFT:  22 GPM
SWITCH TYPE:  Vertical Float
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  1/4"
AMP DRAW (full load):  6.5 Amps
CORD LENGTH:  10' SJTW
VOLTAGE:  115v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  140°F (60°C)
SHAFT SEAL:  Carbon/Ceramic Mechanical
