Pentair Hydromatic CSS-3V Pre-Plumbed Sump Basin Package - Vertical Switch

Pre-plumbed sump basin package is ready for field installation and includes check valve and side hub.

KEY FEATURES

  • Package Includes:
    • Model VA 1 Pump
    • Basin  18" x 22" with 20 Gallon Capacity
    • Single-Piece Structural Foam Lid
    • 1-1/2" NNPT Threaded Discharge Flange
    • 2" NPT Vent Flange (adaptable to 3")
    • 1-1/2" Sump Check Valve
  • Has Proprietary "Flush Mount" Design for Easy Shipment and Storage.
  • Allows for Pallet Stacking.
  • Injection-Molded Structural Foam Provides the Highest Quality Construction for Uniform Wall Thickness and Strength
  • Radon Approved Basin and Cover for Radon Prevention

WARRANTY

Limited 3 year warranty

Explore purchase options available for this product.
Where to Buy

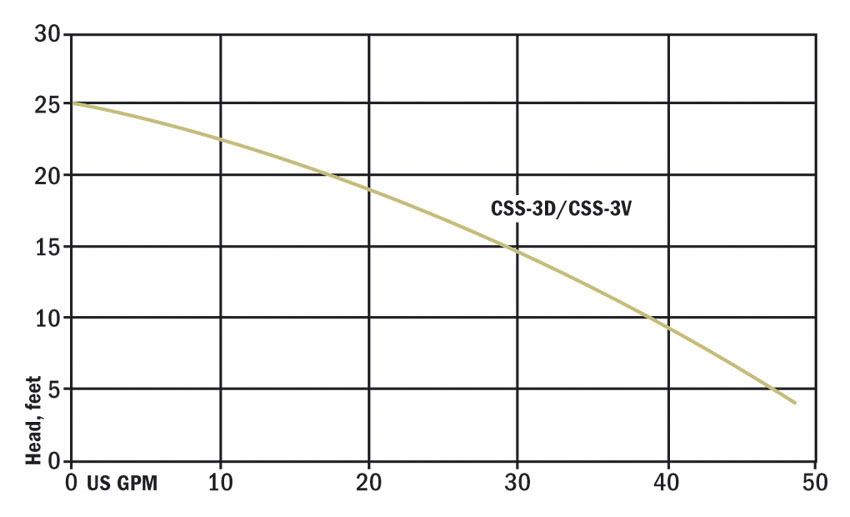

Performance Curves



Specifications

BODY CONSTRUCTION:  Pump: Cast iron / Basin: Polyethylene
HORSEPOWER:  3/10 HP
MAXIMUM HEAD:  25'
MAXIMUM CAPACITY:  48 GPM (181.7 LPM)
FLOW at 10' LIFT:  38 GPM
SWITCH TYPE:  Vertical Float
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  1/2"
AMP DRAW (full load):  8 Amps
CORD LENGTH:  10'
VOLTAGE:  115V AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  120°F (49°C)
IMPELLER:  Thermoplastic Vortex
