Pentair Hydromatic SD/SW/VS Series Cast Iron Sump Pumps

Durable 1/3 and HP submersible sump pumps.

KEY FEATURES

  • Carbon-Ceramic Mechanical Shaft Seal
  • Oil-Filled Motor with Automatic Reset Thermal Overload
  • Uses Single-Row Ball Bearing Construction
  • Piggyback Plug for Easy Maintenance and Replacement

WARRANTY

2 year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves

PerformanceCurves_1/3 & 1/2 HP Cast Iron Sump Pumps

Specifications

BODY CONSTRUCTION:  Cast Iron & Engineered Thermoplastic
HORSEPOWER:  Available in 1/3 or 1/2 HP
MAXIMUM HEAD:  S_33: 26 ft. (7.9 m) / S_50: 29 ft. (8.8 m)
MAXIMUM CAPACITY:  S_33: 48 GPM (3.0 LPS) / S_50: 65 GPM (4.1 LPS)
FLOW at 10' LIFT:  S_33: 40 GPM / S_50: 54 GPM

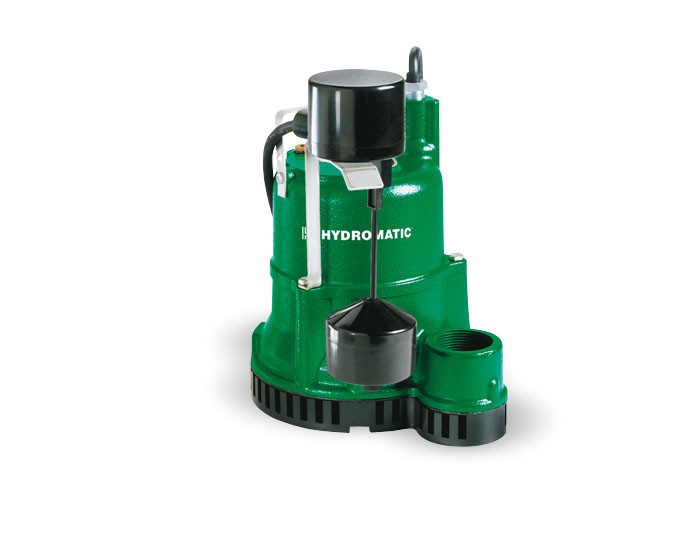

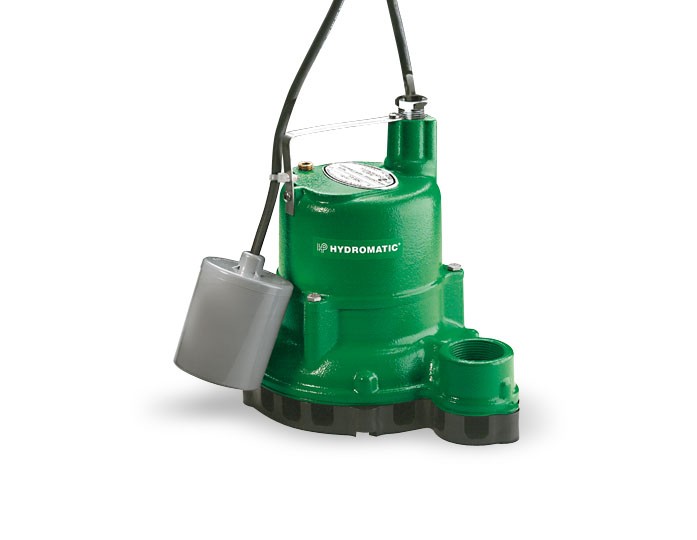

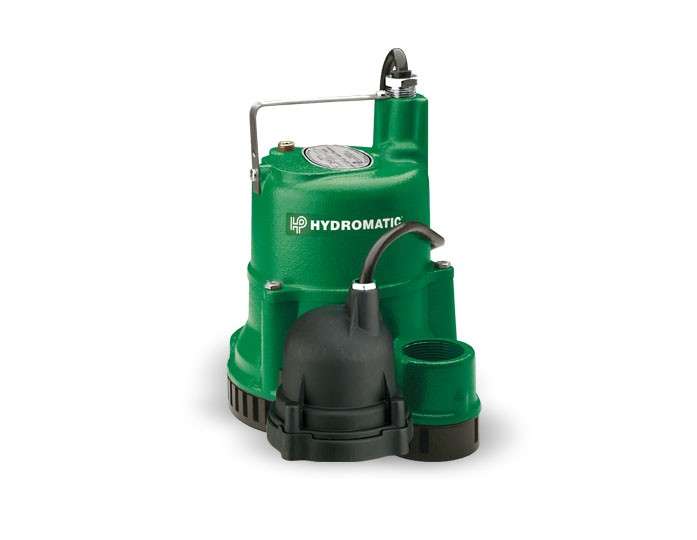

SWITCH TYPE:  Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch
MINIMUM SUMP DIAMETER:  S_33: 18" (457.2 mm) / S_50: 18" (457.2 mm)
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  S_33: 3/8" (9.5mm) / 3/4" (19.1 mm)
AMP DRAW (full load):  S_33: 10 Amps / S_50: 12 Amps
CORD LENGTH:  10', SJTW (20' optional)
VOLTAGE:  115v AC, 60 Hz
MAXIMUM WATER TEMPERATURE:  120°F (49°C)
IMPELLER CONSTRUCTION:  Thermoplastic
