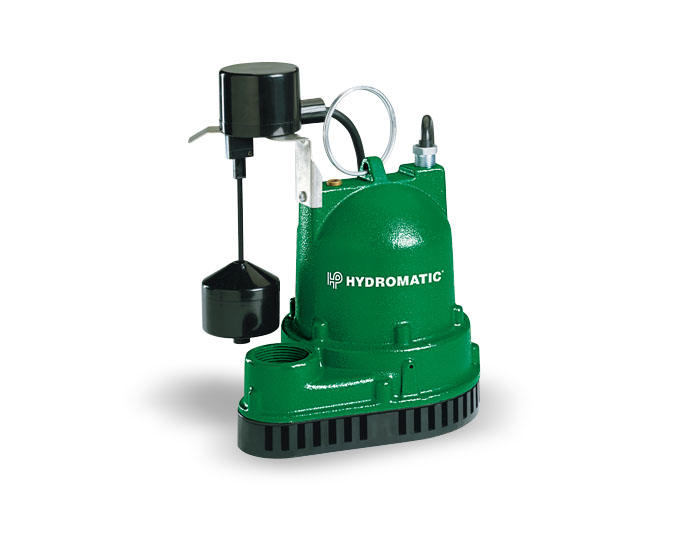

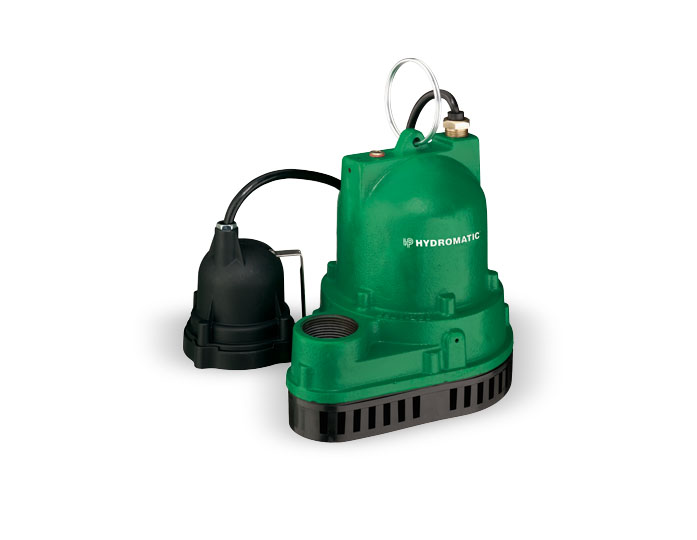

Pentair Hydromatic W/D/V-A1 Cast Iron Sump Pumps
The most popular series of Hydromatic submersible sump pumps. Automatic operation features wide-angle float switch (W-A1), or Hydromatic’s exclusive pressure diaphragm switch (D-A1) or Hydromatic’s vertical, mechanical float switch (V-A1). All switches feature a piggyback plug-in arrangement that allows for simple conversion to manual operation.
Cast iron body and an oil-filled motor provide superior cooling characteristics for longer pump life. Motor windings contain automatic thermal overload protection.
KEY FEATURES
- Uses carbon-ceramic mechanical shaft seal.
- Single-row ball-bearing construction.
- Oil-filled motor with automatic reset thermal overload protection.
- Piggyback electrical plug for easy maintenance and replacement.
Specifications
| Item # | Horsepower | Full Load Amps | Motor Type | Voltage | Hertz | Motor Housing |
|---|---|---|---|---|---|---|
| W-A1 | 3/10 | 8.0 | Shade Pole (4 pole) | 115 | 60 | Cast Iron |
| D-A1 | 3/10 | 8.0 | Shade Pole (4 pole) | 115 | 60 | Cast Iron |
| V-A1 | 3/10 | 8.0 | Shade Pole (4 pole) | 115 | 60 | Cast Iron |
| Item # | Horsepower | Full Load Amps | Motor Type | Voltage | Hertz | Motor Housing |
|---|---|---|---|---|---|---|
| W-A1 | 3/10 | 8.0 | Shade Pole (4 pole) | 115 | 60 | Cast Iron |
| D-A1 | 3/10 | 8.0 | Shade Pole (4 pole) | 115 | 60 | Cast Iron |
| V-A1 | 3/10 | 8.0 | Shade Pole (4 pole) | 115 | 60 | Cast Iron |
