Pentair Hydromatic HBB-SKV50 Sewage Package System

KEY FEATURES

  • Fully Assembled -- SKV50 Pump is Pre-Installed in Basin, with Integral Torque Stop to Ensure Stability
  • Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection
  • 24" x 24" Basin Provides 30% More Capacity Than Standard 18"x30" Basin
  • Concrete Splash Lip and Unique Basin Shape Keeps System From Floating or Becoming "Un-Installed"
  • Concrete-Proof Cover Insert Protects the System From Damage During Rough-In and Masonry Work
  • Integral 360° Top Grip for Easy Lifting and Handling in Tight Spaces
  • Extra Protection With Optional O-Alert High Water Alarm System

WARRANTY

Limited 3 year warranty

Explore purchase options available for this product.
Where to Buy

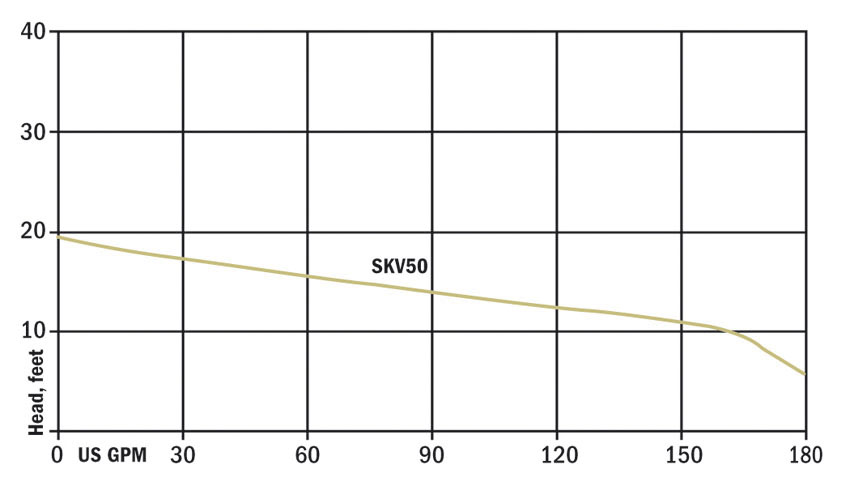

Performance Curves



Specifications

BODY CONSTRUCTION:  Pump: Class 30 Cast Iron / Basin: Structural Foam
HORSEPOWER:  1/2 HP
MAXIMUM HEAD:  20'
MAXIMUM CAPACITY:  180 GPM (11.3 LPS)
FLOW at 10' LIFT:  165 GPM
SWITCH TYPE:  Available with Wide Angle Tethered OR Diaphragm Pressure Switch
DISCHARGE PIPE SIZE:  2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  2"
AMP DRAW (full load):  12 amps on 115v / 6 amps on 230v
CORD LENGTH:  10' SJTW (20' optional)
VOLTAGE:  115v or 230v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  140°F (60°C)
MAXIMUM (intermittent) LIQUID TEMP:  140 degrees F (60 degrees C)
IMPELLER:  Thermoplastic Recessed
