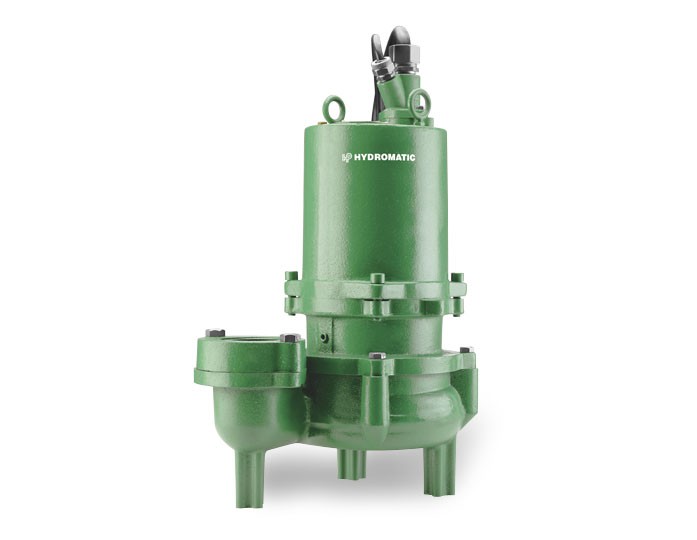

Pentair Hydromatic S3SD/SB3SD 3" Discharge Submersible Sewage Ejector Pump

The Hydromatic S3SD and SB3SD sewage pumps are designed to transfer raw sewage with solids as large as 2½".

KEY FEATURES

  • Available configurations, rails and accessories:
    • Rail Systems Available
    • Controls and Accessories Available

Size and Configure Hydromatic Pumps

Launch Encompass

Locate a distributor near you

View Locations

Performance Curves

PerformanceCurves_Submersible Sewage Ejector Pump, 3" Discharge

Specifications

Item #RPM
S3SD1150
SB3SD1750
Item #RPM
S3SD1150
SB3SD1750
Show less

HORSEPOWER:  1150 rpm: 1–2 HP / 1750 RPM: 1.5–7.5 HP
MATERIALS OF CONSTRUCTION:  Class 30 cast iron; ASTM A-48
MAXIMUM HEAD:  up to 44 ft. (13.4 m)
MAXIMUM CAPACITY:  up to 385 GPM (24.3 LPS)
SWITCH TYPE:  Control panel required
MINIMUM SUMP DIAMETER:  Simplex = 30" (762 mm)
DISCHARGE PIPE SIZE:  3" (76.2 mm) NPT
MAXIMUM SOLIDS HANDLING SIZE:  2.5" (63.5 mm)
CORD LENGTH:  35' STW cable
VOLTAGE:  1ø, 230V, 60Hz;1.5–7.5 HP / 3ø, 200V/230V/460V/575V, 60Hz
MAXIMUM WATER TEMPERATURE:  140°F (60°C)
MOTOR:  Enclosed, oil cooled induction
IMPELLER CONSTRUCTION:  Ductile iron; ASTM 536
