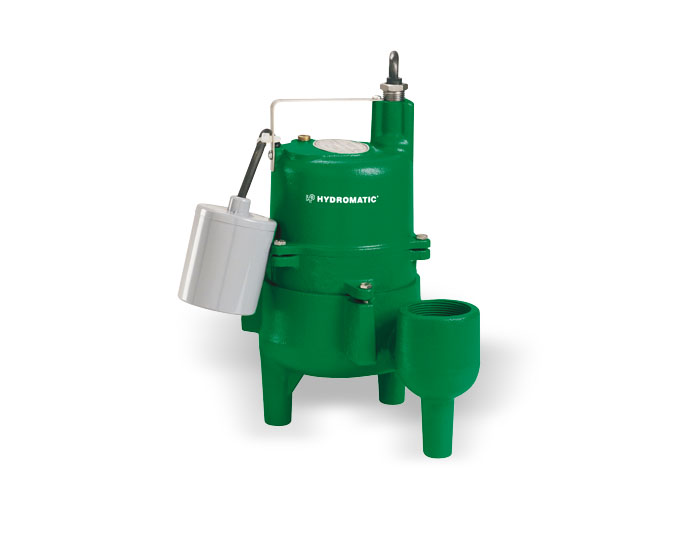

Pentair Hydromatic SKV Series Cast Iron Sewage Pumps

Recessed vortex impeller allows pumping of stringy material and reduces clogging.

Key Features

  • Carbon/Ceramic Type 21 Mechanical Shaft Seal
  • Oil-Filled Motor with Automatic Reset Thermal Overload Protection
  • Lower Single-Row Ball Bearing Construction
  • Piggyback Plug Available for Easy Maintenance and Switch Replacement


The model SKV50 pump features our new, improved D1 Diaphragm Switch.

Warranty

36 month limited warranty

Explore purchase options available for this product.
Where to Buy

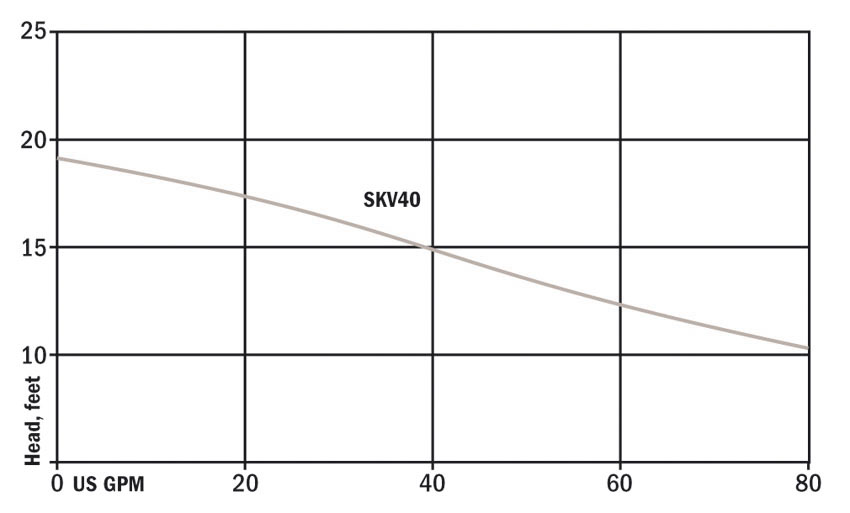

Performance Curves

PerformanceCurves_4/10 & 1/2 HP Cast Iron Sewage Pumps
PerformanceCurves_4/10 & 1/2 HP Cast Iron Sewage Pumps

Specifications

BODY CONSTRUCTION:  Class 30 Cast iron
HORSEPOWER:  Available in 4/10 or 1/2 HP
MAXIMUM HEAD:  22'
MAXIMUM CAPACITY:  80 GPM
FLOW at 10' LIFT:  80 GPM (Use with less than 10' of head not recommended)
SWITCH TYPE:  Wide-Angle Tethered Float or Diaphragm Pressure Switch
MINIMUM SUMP DIAMETER:  Simplex: 18" / Duplex: 30"
DISCHARGE PIPE SIZE:  2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  2"
AMP DRAW (full load):  SKV40: 12.6 amps on 115v / 6.4 amps on 230v / SKV50: 12 amps on 115v / 6 amps on 230v
CORD LENGTH:  10' SJTW (20' optional)
VOLTAGE:  available in 115v or 230v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  140 F (60 C)
MOTOR:  4/10 or 1/2 HP PSC with Thermal Overload Protection
IMPELLER CONSTRUCTION:  Thermoplastic Recessed
