PSG Helps Solve Your Complex Pump Problems
Pentair Pump Services Group (PSG) provides repair and refurbishment services designed to meet the challenging demands of customers in the municipal, industrial and commercial markets. We have the technical expertise to solve pump repair problems on almost any pumping equipment— including submersible, centrifugal, vertical turbine, split case, or propeller pumps.
Watch PSG re-engineer a vertical turbine for relocation
This end-to-end video shows how PSG re-engineered a vertical turbine pump that needed to be moved from the basement to the first floor of a municipal building.

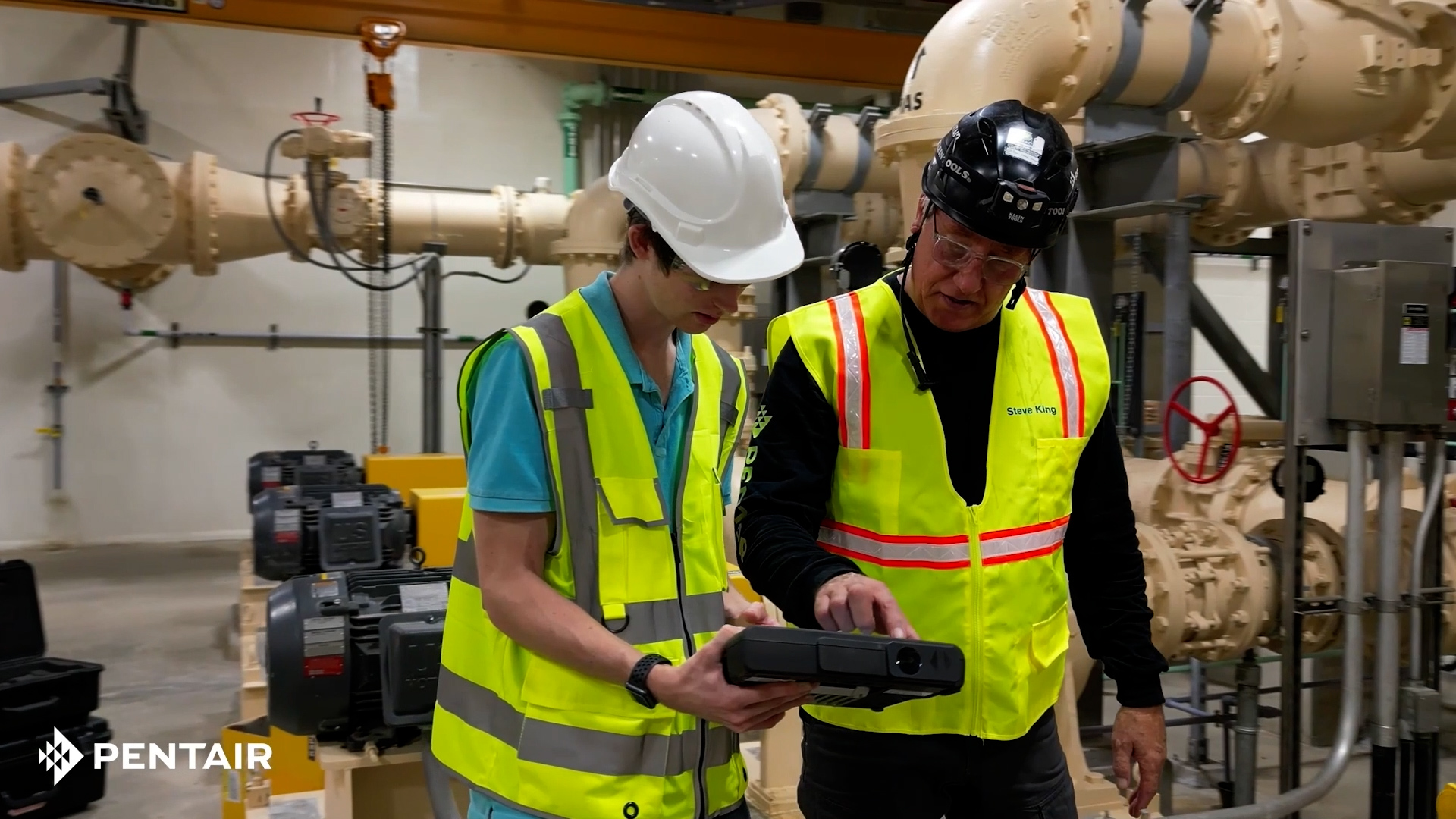

PSG Field Service In Action
Explore how Pentair's expert technicians tackle the most complex pump problems, regardless of size or brand. See how we use the latest precise technology to understand why pumps aren't running efficiently and how we take action to troubleshoot the problem.
Field Service Featured Capabilities
Using the correct tools and expertise to diagnose common pump system issues
Trending Data: Capture vibration, flow, pressure, speed and more
Continuously and simultaneously record 24 analog inputs to visualize data, including time and frequency domain analysis. Capture transient events like start-up, shut-down, or valve closures.
Trending data can help identify system-related operational deficiencies without dismantling machinery. Seeing all the data points in the same wave chart can help us spot anomalies and diagnose an issue more efficiently. From here, we can optimize the operation of your equipment.
Operating Deflection Shape (ODS): Measure system vibration while running
Our software has tools for measuring and analyzing time ODS covering SISO, SIMO, MISO, and MIMO. This allows us to see how your system's actual vibration forcing functions and corresponding dynamic behavior during operation.
From here, we can shape the estimation of equipment, foundation, and piping to identify the root cause of an issue. The ability to diagnose the movement of your system allows us to determine quick and focused solutions to reduce vibration.
Motion Amplification Video (MAV): Amplified high-speed video
Utilize software to visually amplify high-speed camera video and see your system in action. This tool is faster to set up and measure than ODS, but it takes longer to get results back. This tool requires line of sight and good lighting and has a lower frequency range than ODS.
This is a great visualization tool for seeing the equipment in action. We can correlate identified operating frequencies with visual motion and pinpoint areas of focus for remediation.
Connect With Us
Give us a call to see how we can help
913-371-5000
Field Service - Option 2
Shop Service - Option 4
North America Testing Capabilities
Pentair has a state-of-the-art test facility covering the needs and requirements of the pump aftermarket. Located at the Pentair Fairbanks Nijhuis Facility in Kansas City, Kansas, this lab provides testing for customers in North America covering submersible, centrifugal, vertical turbine, split case and propeller pumps.
- Test lab complies with Hydraulic Institute® and American National Standards Institute testing standards, including 14.6 and 40.6
- Test area contains a 100,000-gallon pit, with a horsepower capacity of 5,000 HP and flow capacities up to 80,000 GPM
- Multiple 460 V Variable Frequency Drives (VFDs):
- Benshaw® 5,000 HP, 4160 V drive
- Belyea 2,300 V Drive
- Full range of state-of the-art calibrated test drivers and complete instrumentation for capturing hydraulic performance, vibration, temperature, power and more
Ready to learn more? Download the PSG brochure with more details.
Complete PSG Field Capabilities
-
Machinery Health
-
- Vibration OA
- Vibration spectrum
- Temperature
- H/Q/P
- Noise
- Installation checks
-
Vibration
-
- Multichannel Machine Trending
- Modal analysis
- Impact testing
- Experimental Modal Analysis (EMA)
- Operating Deflection Shape (ODS)
- Pressure pulsation
- Shaft Orbit
- Motion Amplification Video (MAV)
- FEA – Advanced Diagnostics
- Modal
- Harmonic
- Rotordynamics
- Random
- Response Spectrum
- Transient
-
Cavitation
-
- G-test
- Pressure pulsation
- Intake/piping evaluation
- NPSH evaluation
- Visual inspection
- Acoustic resonance
- Noise
-
Bearing Issues
-
- Bearing fault analysis
- Temperature
- Noise
- Alignment
- Balancing
-
Seal Failure
-
- Trend monitoring
- Pressure
- Process temperature
-
Structural Analysis
-
- FEA
- Modal testing
- Vibration on structural members
-
Mechanical Failure
-
- FEA
- Modal analysis
- Strain gage analysis
- Shaft orbit
- Shaft ODS
- MAV
-
Clogging
-
- Trending Vibration
- Trending Q/H
- Electrical
-
Intake Disturbance
-
- Visual
- Pipe velocity distribution
- Acoustic resonance
-
Operating Region
-
- Trending Q/H
- Pressure Pulsation
-
Transient Events
-
- Trending data
- Modal analysis
PSG can restore the performance and reliability of your existing centrifugal, submersible, vertical turbine, propeller, or multi-stage pump, regardless of pump manufacturer. Contact us today for all your repair needs.
