Pentair Myers MSCI Premium Cast Iron Sump Pumps
Main Content Starts Here

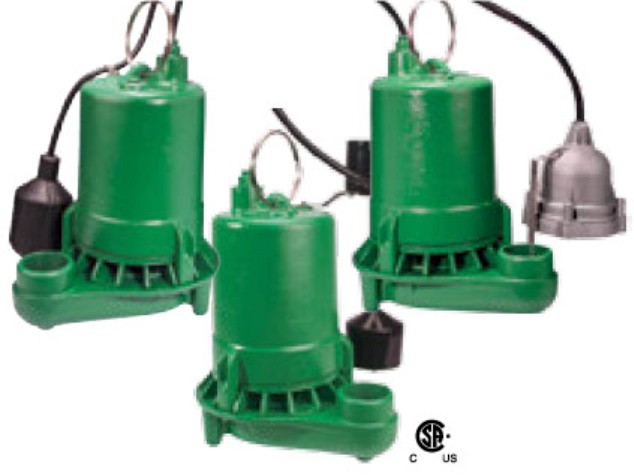

Pentair Myers MSCI Premium Cast Iron Sump Pumps
MSCI sump pumps feature heavy-duty cast iron construction and provide performance where it counts with 76 GPM at 10'. The permanent split capacitor (PSC) motor promotes less energy consumption and a longer life.
- Upper and lower double lip seals deliver smoother operation
- Dual ball bearings
- Multiple automatic switch options
- Raised inlet to reduce the maintenance time
Specifications
Applications:
Basement sumps dewatering
Operation Tethered:
On 13-1/2? (343 mm) | Off 4-1/2? (114 mm)
Intermittent Liquid Temp.:
32°F to 70°F (0°C-21°C)
Shaft Seals:
2x Double lip
Acceptable pH Range:
pH range 6-9
Motor Housing:
Cast Iron
VOLUTE MATERIAL:
Cast Iron
IMPELLER MATERIAL:
Recessed vortex impeller
Minimum Sump Diameter:
10? (254 mm)
Operation Vertical:
On 7-1/2? (190.5 mm) | Off 3? (76 mm)
Operation Diaphragm:
On 9? (228.6 mm) | Off 4-1/2’ (114 mm)
Agency Approval:
CSA, CUS
Motor:
Motor PSC Motor
| Item # | HP | MAX CAPACITY | Max Head | Discharge | Solids Handling | Voltage | Amps (Max) | Phase | Cord Length | Switch |
|---|---|---|---|---|---|---|---|---|---|---|
| MSCI33T10 | 1/3 | 71 | 22 | 1 1/2" | 3/8" | 115 | 6.9 | 1 | 10 | PT |
| MSCI33V10 | 1/3 | 71 | 22 | 1 1/2" | 3/8" | 115 | 6.9 | 1 | 10' | PV |
| MSCI33D10 | 1/3 | 71 | 22 | 1 1/2" | 3/8" | 115 | 6.9 | 1 | 10' | PD |
| MSCI50V10 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PV |
| MSCI50V20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PV |
| MSCI50V50 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 50' | PV |
| MSCI50D10 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PD |
| MSCI50D20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 20' | PD |
| MSCI50T10 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PT |
| MSCI50T20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 20' | PT |
| Item # | HP | MAX CAPACITY | Max Head | Discharge | Solids Handling | Voltage | Amps (Max) | Phase | Cord Length | Switch |
|---|---|---|---|---|---|---|---|---|---|---|
| MSCI33T10 | 1/3 | 71 | 22 | 1 1/2" | 3/8" | 115 | 6.9 | 1 | 10 | PT |
| MSCI33V10 | 1/3 | 71 | 22 | 1 1/2" | 3/8" | 115 | 6.9 | 1 | 10' | PV |
| MSCI33D10 | 1/3 | 71 | 22 | 1 1/2" | 3/8" | 115 | 6.9 | 1 | 10' | PD |
| MSCI50V10 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PV |
| MSCI50V20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PV |
| MSCI50V50 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 50' | PV |
| MSCI50D10 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PD |
| MSCI50D20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 20' | PD |
| MSCI50T10 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 10' | PT |
| MSCI50T20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 20' | PT |
| MSCI50T50 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 50' | PT |
| MSCI50M20 | 1/2 | 87 | 29 | 1 1/2" | 3/8" | 115 | 7.7 | 1 | 20' | M |
