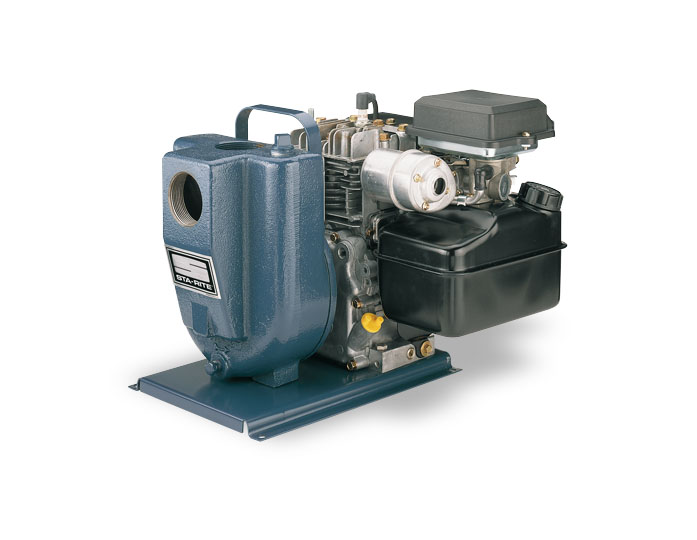

Pentair Sta-Rite EEDD, EDDH, EEDDH Engine-Driven Self-Priming Pumps

These engine-driven centrifugal pumps can be used anywhere electricity is not available. Powerful 4-cycle gas engines get the job done faster and more efficiently.

Available in 3 configurations. See your dealer for more details.

Key Features

  • Close-coupled EDDH has pump and engine close-coupled on an all-steel base. Features 5/8" diameter ductile iron shaft extension
  • Frame-mounted EEDDH features pump and engine frame-mounted on an all-steel base. Stub shaft allows easy replacement with other gasoline powered engines. This unit has a 3/4" keyed ductile iron shaft extension
  • Order model EEDD for pump only. To be used with 5/8" or 3/4" shaft in gasoline engine-powered applications. (You supply engine)

Warranty

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves

PerformanceCurves_Engine-Driven Self-Priming Pumps, 2" Suction & Discharge

Resources

Downloads
Specifications

BODY CONSTRUCTION:  Cast Iron
MAXIMUM CAPACITY:  125 GPM
FLOW at 10' LIFT and 40 PSI:  70 GPM
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  39 PSI
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure):  EDD: Unpublished / EDDH:90 : PSI / EEDDH: 90 PSI
SUCTION SIZE:  2" NPT
DISCHARGE SIZE:  2" NPT

Specifications

Item #Horsepower
EDDH3
EEDDH3
EEDD
Item #Horsepower
EDDH3
EEDDH3
EEDD
