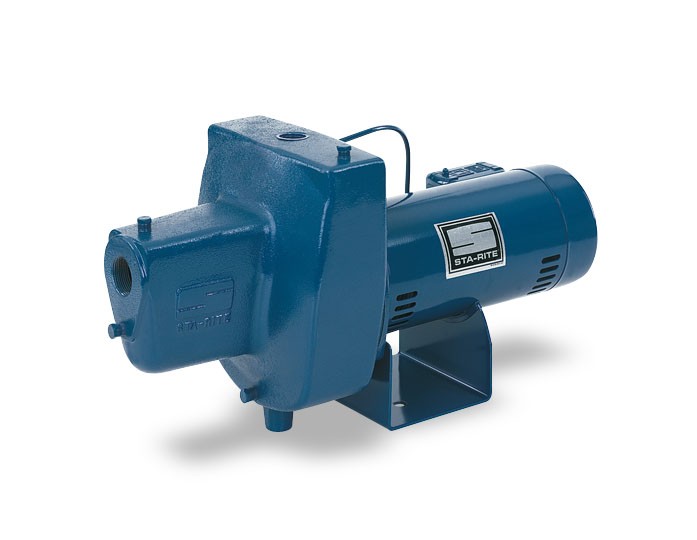

Pentair Sta-Rite HN Series Cast Iron Shallow Well Jet Pumps

The Projet HN models are constructed with quality components and provide excellent performance for wells to 25' deep

KEY FEATURES

  • Quality Construction - Close-grained cast iron body.Drain port provided for easy winterizing
  • Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
  • Motor Windings - Superior insulation materials protect against excessive moisture and contaminants and assure prolonged motor life.
  • Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.

WARRANTY

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves

PerformanceCurves_Shallow Well Jet Pump, Cast Iron, 1/2 thru 1 HP, 115V/230V, 30-50 Switch, 1-1/4" Suction, 1" Discharge

Specifications

Item #Horsepower
HNC1/2
HND3/4
HNE1
Item #Horsepower
HNC1/2
HND3/4
HNE1
Show less

BODY CONSTRUCTION:  Cast Iron
MAXIMUM CAPACITY:  28.5GPM (HNE model)
FLOW at 10' LIFT and 40 PSI:  18.7 GPM (HND model)
MAX LIFT:  25'
MAX SHUT-OFF PRESSURE:  70 PSI (model HNC)
MAXIMUM INLET PRESSURE:  50 psi (inlet pressure + discharge not to exceed 100 psi)
PRESSURE SWITCH SETTING:  30-50 PSI
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  19.2 amps (1 HP running on 115v)
VOLTAGE:  230v / 115v AC, 60 Hz, single-phase (factory pre-set at 230v)
RECOMMENDED BREAKER:  Model and Voltage Dependent
MAXIMUM LIQUID TEMPERATURE:  140°F / 60°C
