Pentair Sta-Rite Jet Pump / Tank Combinations for Shallow Well and Deep Well Applications

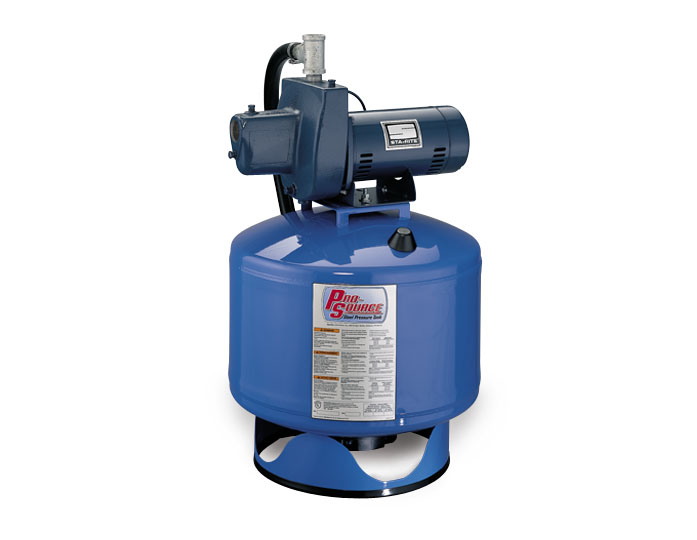

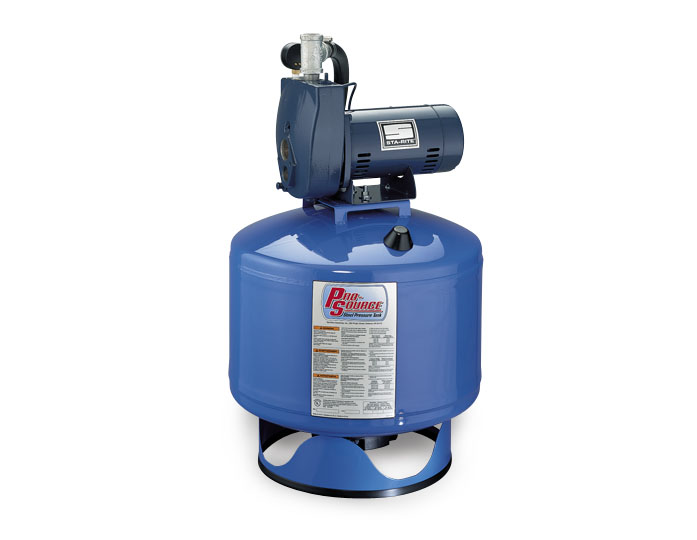

Pro-Source Water System Packages are handy and economical pump/tank packages for the professional contractor. The packages utilize the ProJet cast iron jet pumps and the dependable Pro-Source quality steel tanks.

KEY FEATURES

  • Convenient, All-In-One Design
  • Ideal for installations with limited space
  • Galvanized fittings for strength and corrosion-resistance
  •  Nylon reinforced vinyl tubing connects pump to tank
  • Four models from which to choose

WARRANTY

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

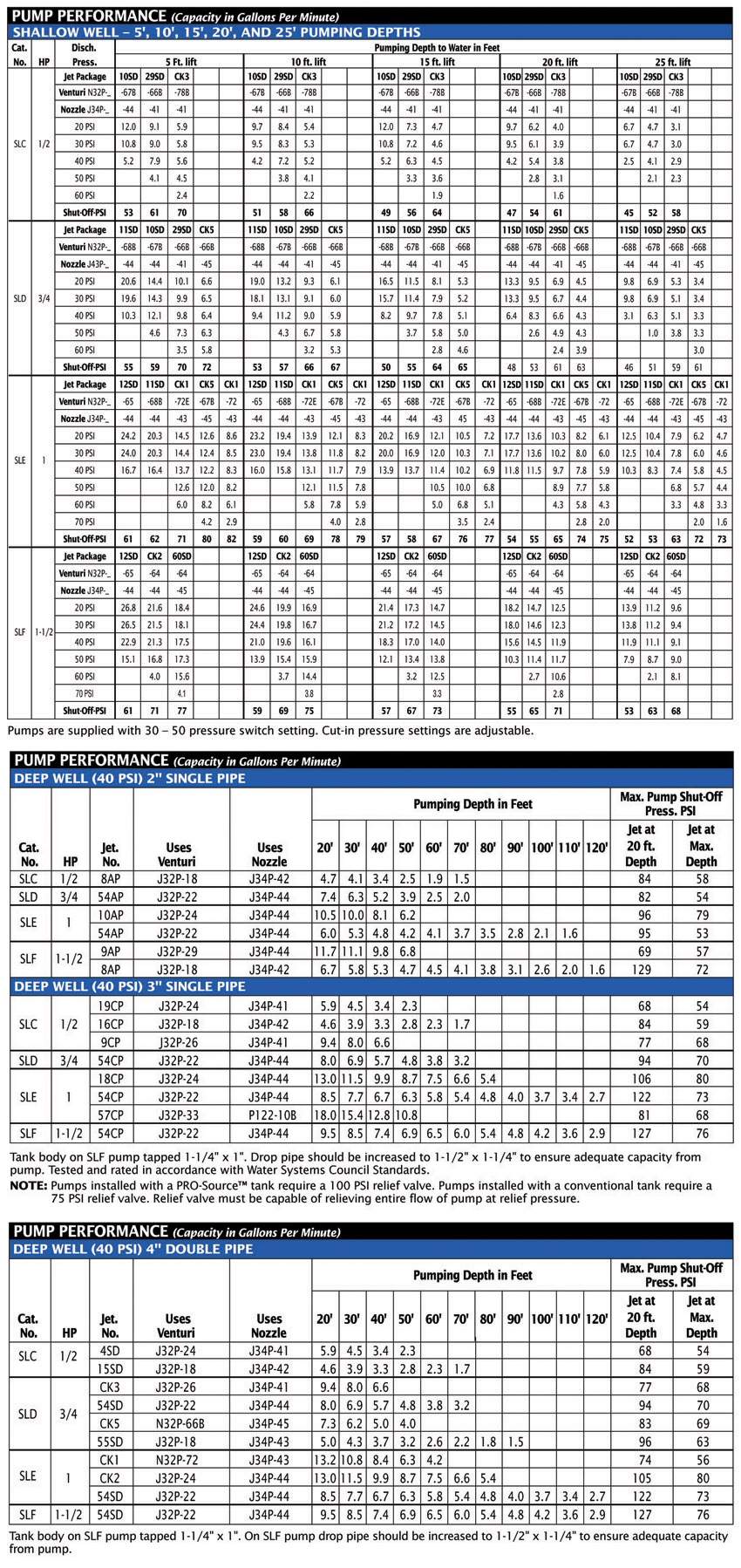

PerformanceCurves_Jet Pump / Tank Combinations
PerformanceCurves_Jet Pump / Tank Combinations

Performance Curves

Specifications

Model SNCP15H:  1/2 HP SN Series Pump on 15 Gal (equiv) Pre-Charged Tank
Model SNCP42:  1/2 HP SN Series Pump on 42 Gal (equiv) Pre-Charged Tank
Model SLCP42:  1/2 HP SL Series Pump on 42 Gal (equiv) Pre-Charged Tank
Model SLDP42:  3/4 HP SL Series Pump on 42 Gal (equiv) Pre-Charged Tank

BODY CONSTRUCTION:  Pumps: Close Grained Cast Iron / Tanks: Steel
MAXIMUM CAPACITY:  model dependent (see Spec Sheet for more info)
FLOW at 10' LIFT and 40 PSI:  model dependent (see Spec Sheet for more info)
SHUT-OFF PRESSURE:  58 - 67 PSI (model and setup dependent)
MAXIMUM INLET PRESSURE:  50 PSI (total internal pump pressure not to exceed 100 PSI)
DISCHARGE SIZE:  SNCP15H is 3/4" NPT / Others are 1" NPT
AMP DRAW (full load):  model dependent
MAXIMUM WATER TEMPERATURE:  120 F (49 C)
TANK RATED "EQUIVALENCY":  SNCP15H: 6 Gal / Others: 19 Gal
TANK DRAWDOWN:  SNCP15H 1.8 Gal / Others: 5.8 Gal
