Pentair Sta-Rite MS Series Cast Iron Vertical Multi-Stage Deep Well Jet Pumps
Main Content Starts Here
Pentair Sta-Rite MS Series Cast Iron Vertical Multi-Stage Deep Well Jet Pumps
MS Design Series deep well jet pumps feature over-the-well "bolt-on" capability with a special casing adapter for 2" and 3" single pipe installations, and adapter flanges for adapting all double pipe installations.
Key Features
- Quality Construction - Precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion.
- Automatic Pressure Regulator - Faster-acting and quieter, design eliminates "hunting" for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells.
- Motor Windings - Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
- Dustproof Cover - All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure.

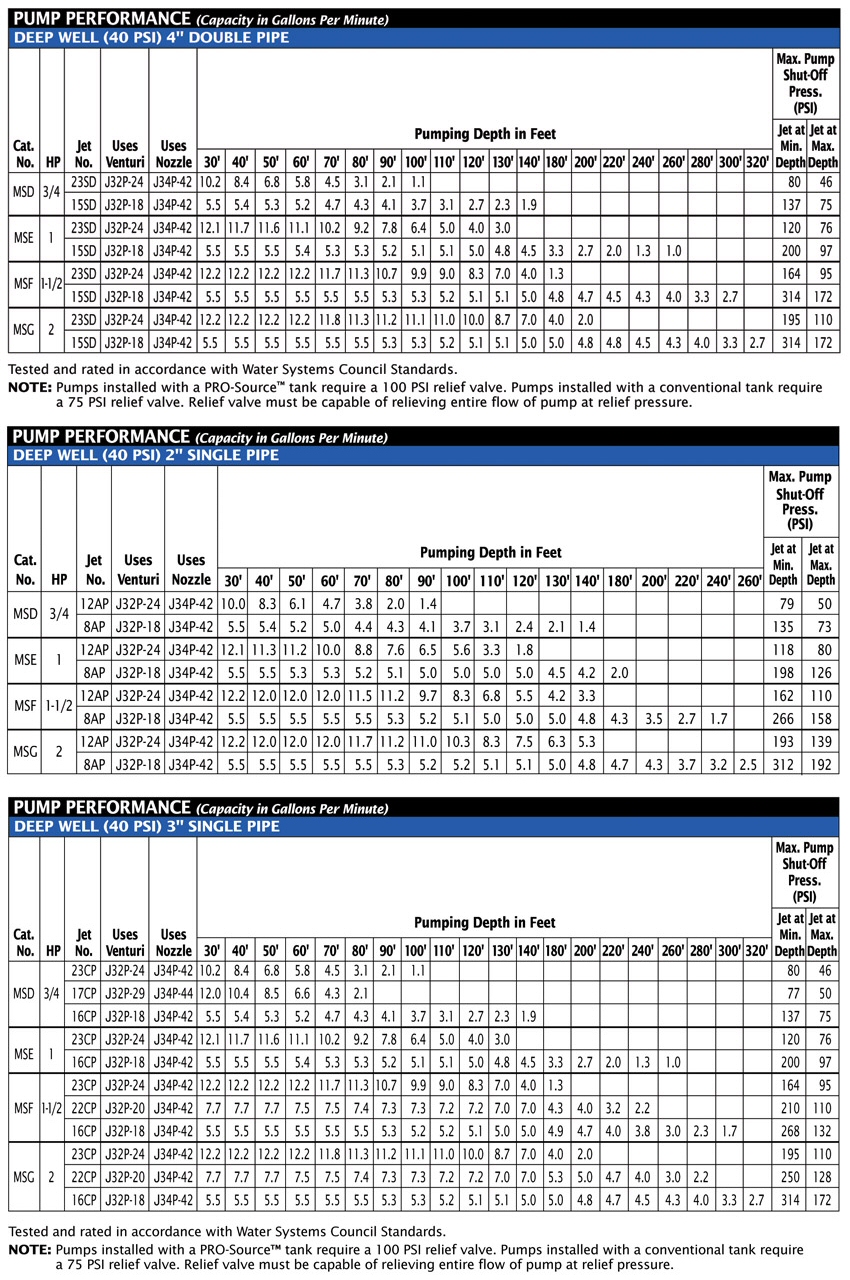

Specifications
Item # | Horsepower |
---|---|
MSD | 3/4 |
MSE | 1 |
MSF | 1-1/2 |
MSG | 2 |
Item # | Horsepower |
---|---|
MSD | 3/4 |
MSE | 1 |
MSF | 1-1/2 |
MSG | 2 |
