Pentair Hypro 3D Spray Nozzles

Pentair Hypro 3D nozzles outperform a flat-fan nozzle by 10 percent for pre-emergence blackgrass control in Syngenta field trials.*

  • Outperforms flat-fan in pre emerge weed control at multiple boom heights.
  • Delivers improved efficiency and reduced water volume without compromising weed control.
  • 60-75% drift reduction compared to flat-fan nozzles, achieving 2 Star LERAP rating at specific nozzle size/ pressure combinations.
  • Increased spray deposition from an alternating inclined spray by 8 percent on a one-leaf artificial target versus a flat-fan spraying straight down (internal Hypro wind tunnel trials).
  • Engineered to create consistent droplet sizes to hit the target, rather than the flat-fan nozzle's droplets which can cause off-target trespass.
Explore purchase options available for this product.
Where to Buy
hypro, asabe ae50 outstanding innovations award, 2019, blue logo, white background

Named a 2019 AE50 Outstanding Innovation by the American Society of Agricultural & Biological Engineers (ASABE)

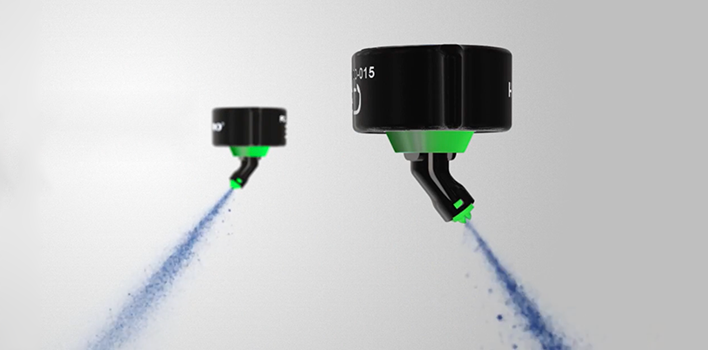

hypro, agricultural spray nozzles, image, png

PROVEN IN THE FIELD

All-purpose non air-inducted nozzle developed using wind tunnel data

hypro, 3d components, png, grey background

Parts Breakout

  1. Nozzle tip
  2. Snaplock torque
  3. Snaplock seat
  4. Washer
  5. Filter transportation cap
  6. Transportation cap

Specifications

Product: 3D Nozzle
Technology: Advanced Tapered Flat Fan
Material: Polyacetal
Spray Angle: 100 degree
Pressure Range: 10-90 PSI (0.7-6 BAR)
CONNECTION TYPE: Fast Cap
Pattern: Alternating Tapered Flat Fans
Item #Nozzle SizeColorDroplet Size RangeTip OnlyReplacement Strainer
Item #

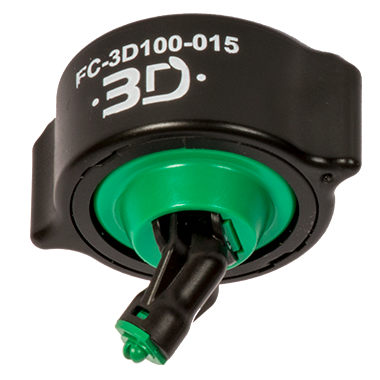

FC-3D100-015
Nozzle Size
015
Color
Green
Droplet Size Range
Fine
Tip Only
3D100-015
Replacement Strainer
TS01-100
Item #

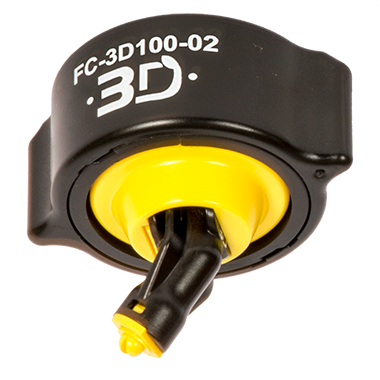

FC-3D100-02
Nozzle Size
02
Color
Yellow
Droplet Size Range
F-M
Tip Only
3D100-02
Replacement Strainer
TS01-100
Item #

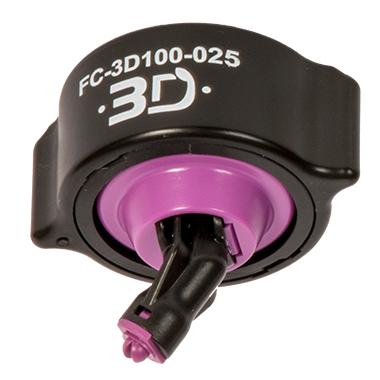

FC-3D100-025
Nozzle Size
025
Color
Lilac
Droplet Size Range
F-M
Tip Only
3D100-025
Replacement Strainer
TS01-100
Item #

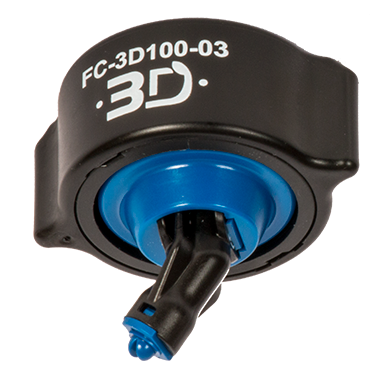

FC-3D100-03
Nozzle Size
03
Color
Blue
Droplet Size Range
F-M
Tip Only
3D100-03
Replacement Strainer
TS01-100
Item #
FC-3D100-035
Nozzle Size
035
Color
Maroon
Droplet Size Range
F-M
Tip Only
3D100-035
Replacement Strainer
TS01-100
Item #

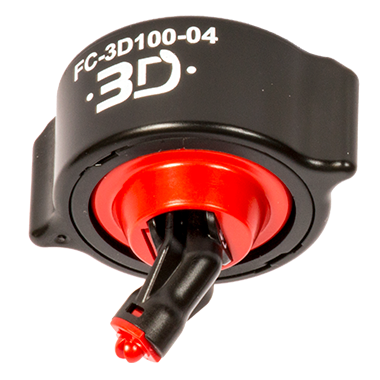

FC-3D100-04
Nozzle Size
04
Color
Red
Droplet Size Range
Medium
Tip Only
3D100-04
Replacement Strainer
TS01-50
Item #

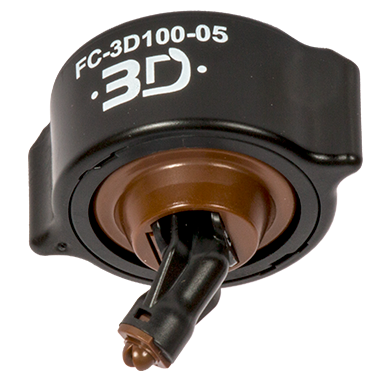

FC-3D100-05
Nozzle Size
05
Color
Brown
Droplet Size Range
M-C
Tip Only
3D100-05
Replacement Strainer
TS01-50
Item #

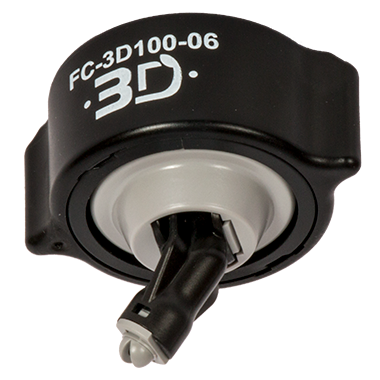

FC-3D100-06
Nozzle Size
06
Color
Grey
Droplet Size Range
M-C
Tip Only
3D100-06
Replacement Strainer
TS01-50
Item #

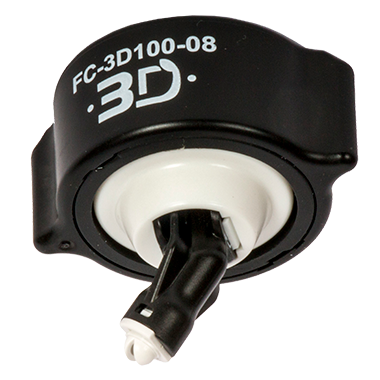

FC-3D100-08
Nozzle Size
08
Color
White
Droplet Size Range
M-C
Tip Only
3D100-08
Replacement Strainer
TS01-50

*Proven to deliver up to a 10% increase in pre-emerge weed control compared to a conventional flat fan (Syngenta UK Trials - 0.6 l/ha Liberator (diflufenican+flufenacet) + 4 l/ha Defy (Prosulfacarb) applied November 2015)
