Pentair Hypro GuardianAIR Ceramic spray nozzles are very low-drift, compact air induction flat spray nozzles with a wide droplet spectrum. They provide air-induced spray droplets to reduce drift while increasing droplet deposition and retention on foliage. Up to 90% drift reduction depending on nozzle size and pressure.
High-speed imaging of spray pattern produced by the Pentair Hypro GuardianAIR Ceramic spray nozzles.
High-speed imaging of spray pattern produced by the Pentair Hypro GuardianAIR Ceramic spray nozzles.
| Item # | Nozzle Size | Droplet Size | Pressure Range | Flow Rate |
|---|---|---|---|---|
| GAC120-01 | 01 | C-F | 15-90 PSI (1-6 BAR) | 0.06-0.15 GPM (0.23-0.55 LPM) |
| GAC120-015 | 015 | VC-F | 15-90 PSI (1-6 BAR) | 0.09-0.23 GPM (0.34-0.83 LPM) |

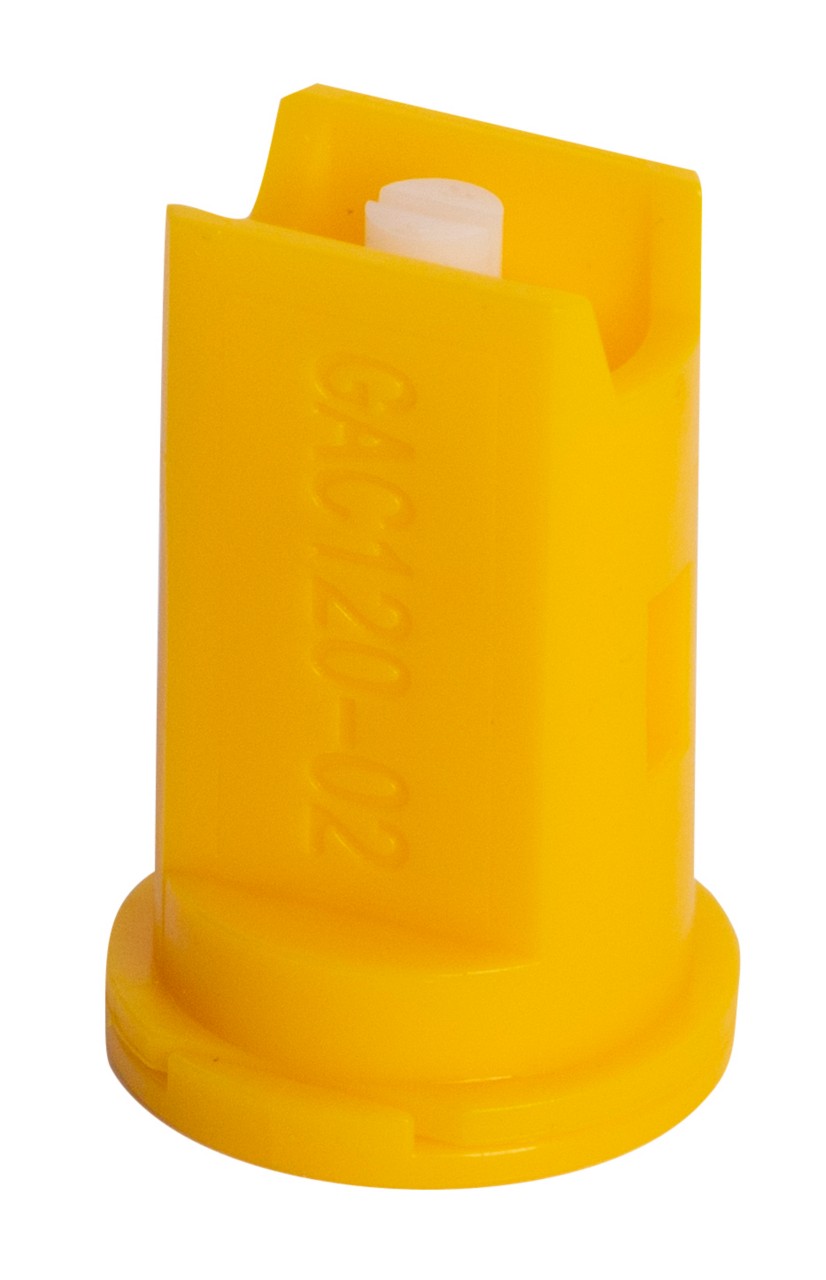

| GAC120-02 | 02 | VC-M | 15-90 PSI (1-6 BAR) | 0.12-0.30 GPM (0.46-1.13 LPM) |
| GAC120-025 | 025 | VC-M | 15-90 PSI (1-6 BAR) | 0.15-0.38 GPM (0.57-1.40 LPM) |

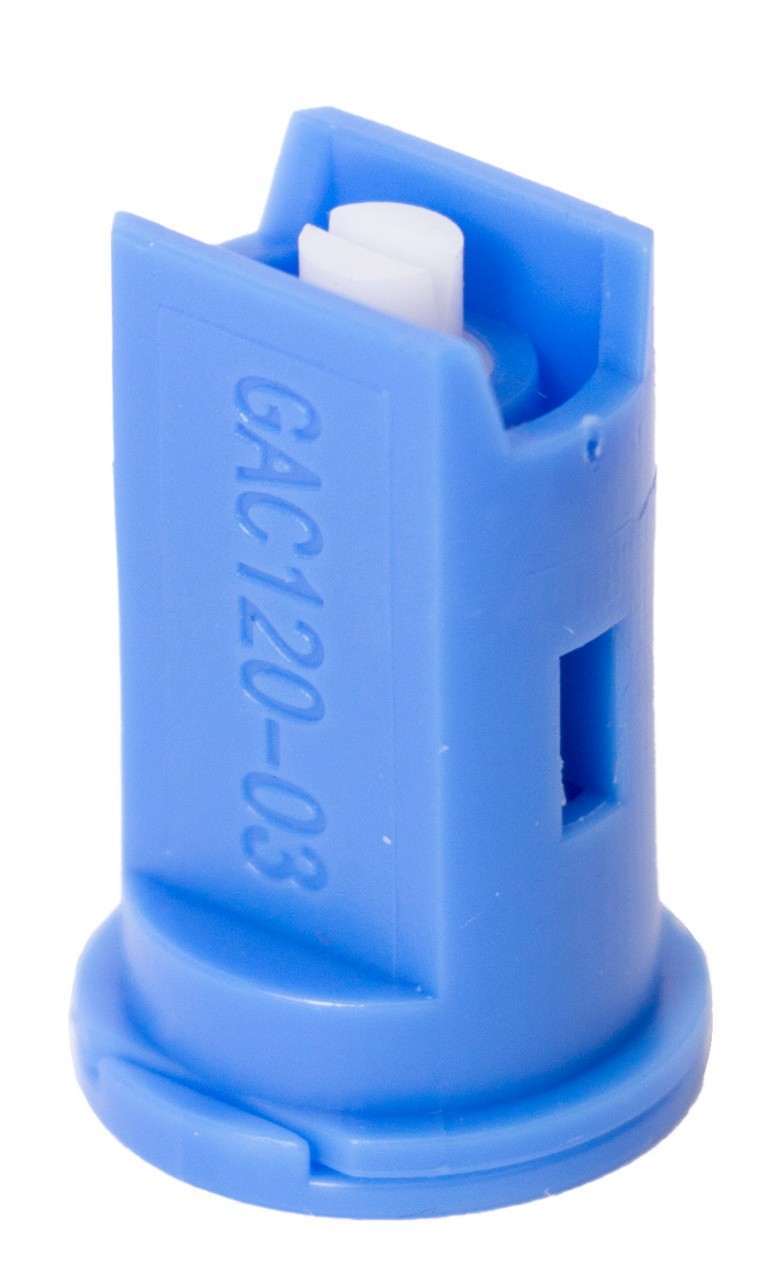

| GAC120-03 | 03 | VC-M | 15-90 PSI (1-6 BAR) | 0.18-0.45 GPM (0.69-1.68 LPM) |

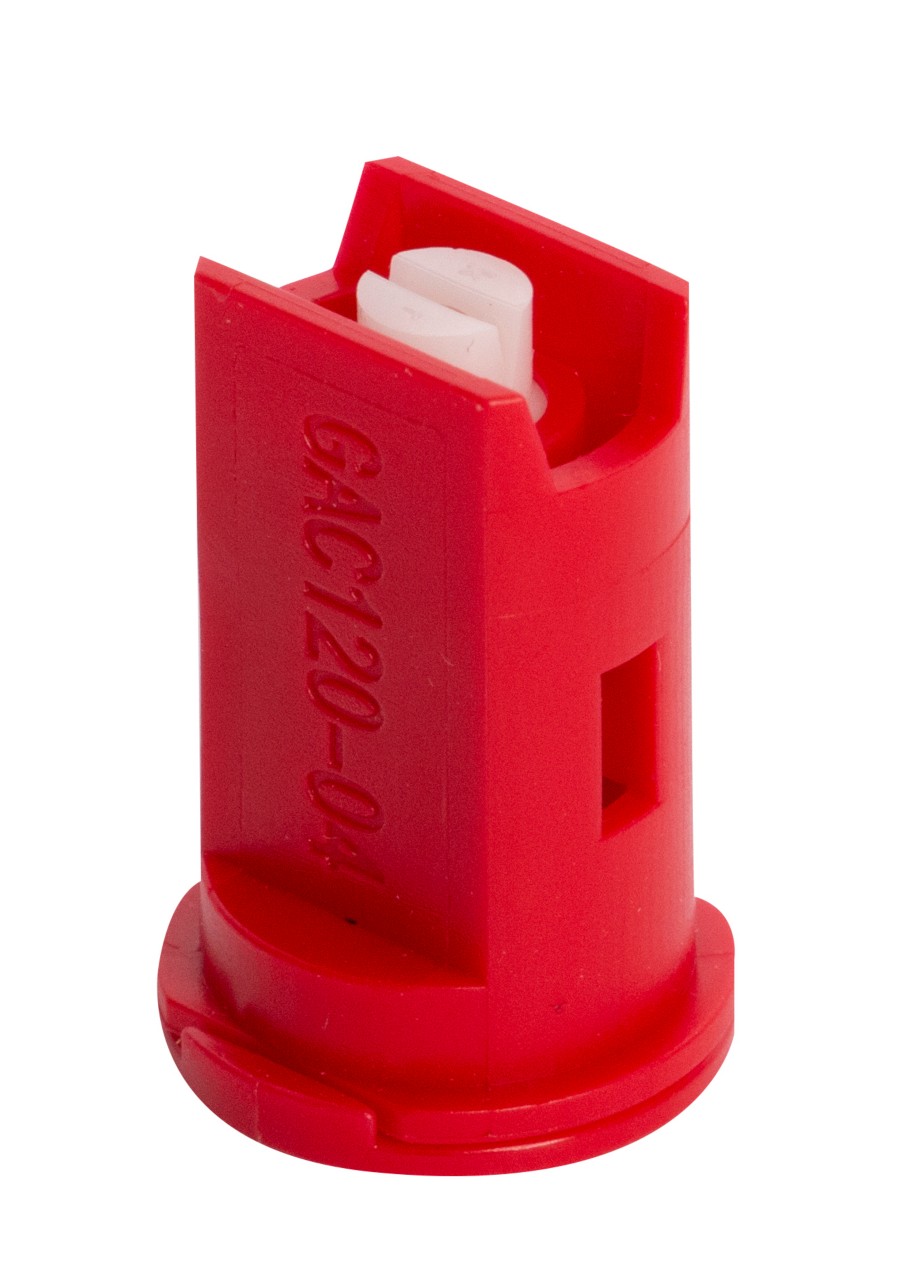

| GAC120-04 | 04 | XC-M | 15-90 PSI (1-6 BAR) | 0.24-0.60 GPM (0.91-2.23 LPM) |

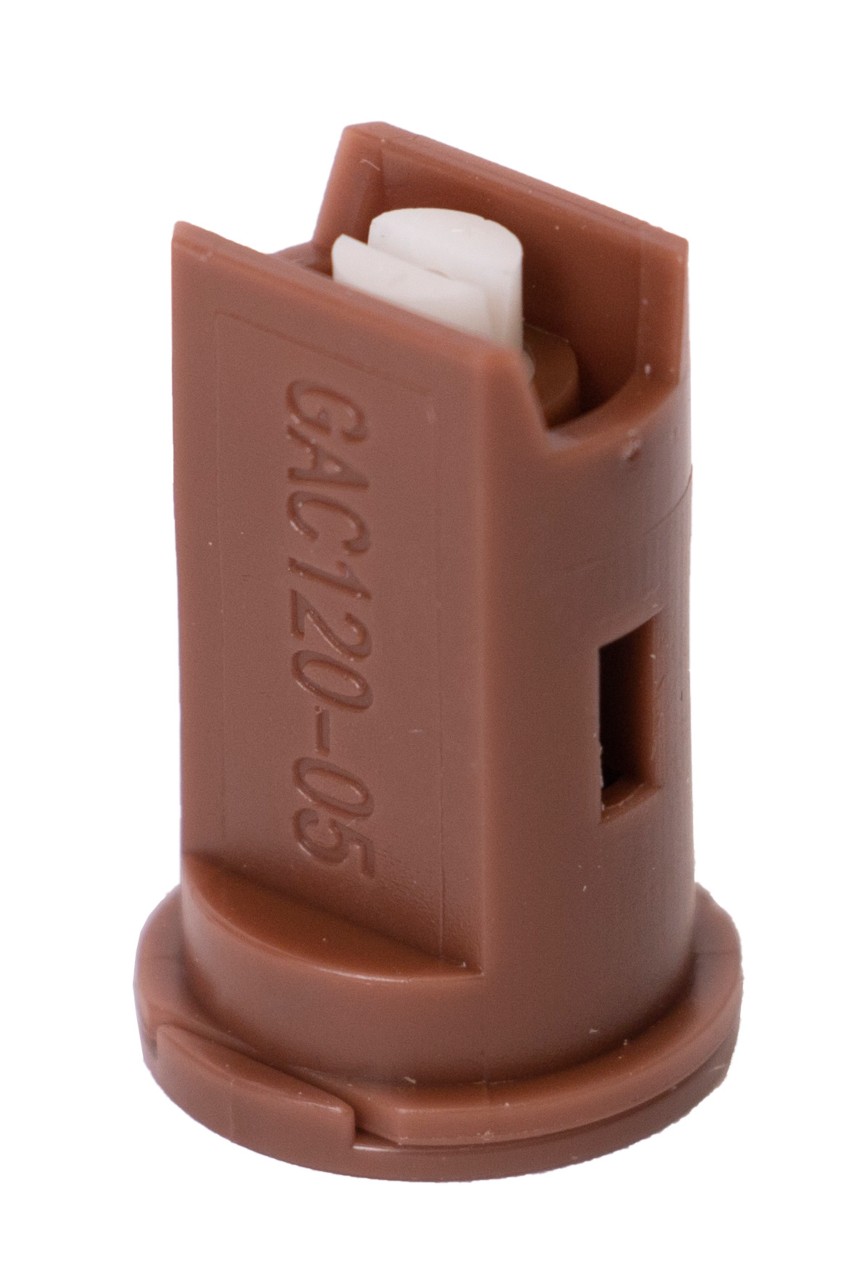

| GAC120-05 | 05 | XC-M | 15-90 PSI (1-6 BAR) | 0.31-0.75 GPM (1.14-2.79 LPM) |
| Item # | Nozzle Size | Droplet Size | Pressure Range | Flow Rate |
|---|---|---|---|---|
| GAC120-01 | 01 | C-F | 15-90 PSI (1-6 BAR) | 0.06-0.15 GPM (0.23-0.55 LPM) |
| GAC120-015 | 015 | VC-F | 15-90 PSI (1-6 BAR) | 0.09-0.23 GPM (0.34-0.83 LPM) |
| GAC120-02 | 02 | VC-M | 15-90 PSI (1-6 BAR) | 0.12-0.30 GPM (0.46-1.13 LPM) |
| GAC120-025 | 025 | VC-M | 15-90 PSI (1-6 BAR) | 0.15-0.38 GPM (0.57-1.40 LPM) |
| GAC120-03 | 03 | VC-M | 15-90 PSI (1-6 BAR) | 0.18-0.45 GPM (0.69-1.68 LPM) |
| GAC120-04 | 04 | XC-M | 15-90 PSI (1-6 BAR) | 0.24-0.60 GPM (0.91-2.23 LPM) |
| GAC120-05 | 05 | XC-M | 15-90 PSI (1-6 BAR) | 0.31-0.75 GPM (1.14-2.79 LPM) |
