Pentair Hypro 9400 Belt Driven Series Centrifugal Pumps

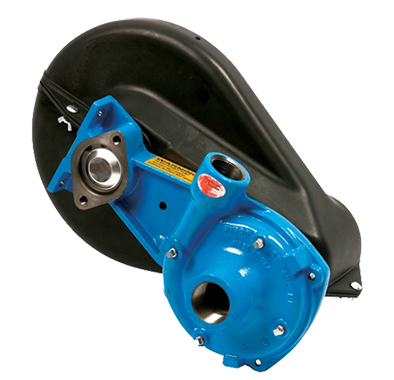

This belt-driven, cast iron, polypropylene and stainless steel centrifugal pump achieves a max of 164 gpm (617 lpm) and a max of 113 psi (7.8 bar).

Spring-loaded belt tensioner
Stainless steel wear ring
Stainless steel pump shaft, standard
220 x 200 universal flange available (U)
Pump shaft rotation: Counter clockwise when looking at shaft end

Explore purchase options available for this product.

Where to Buy

Resources

Downloads

Item #	Pump Type	Drive Type	Max GPM	Max LPM	Max PSI	Max BAR	Max RPM	Ports	Housing Material	Seal Material	Max Fluid Temperature	WEIGHT	PTO Output	Impeller
Item # 9402C-540	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 6-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-540Q	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 600	Ports 1-3⁄8" 6-spline quick coupler	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-540S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-1000	Pump Type Centrifugal	Drive Type 12-groove belt76	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 21-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-1000L	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄4" female, 20-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-1000S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-540	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 6-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-540Q	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)1-3⁄8" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-540S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 91	Max LPM 344	Max PSI 8.3	Max BAR 5.7	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-1000	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 21-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene

Item #	Pump Type	Drive Type	Max GPM	Max LPM	Max PSI	Max BAR	Max RPM	Ports	Housing Material	Seal Material	Max Fluid Temperature	WEIGHT	PTO Output	Impeller
Item # 9402C-540	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 6-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-540Q	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 600	Ports 1-3⁄8" 6-spline quick coupler	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-540S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-1000	Pump Type Centrifugal	Drive Type 12-groove belt76	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 21-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-1000L	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄4" female, 20-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9402C-1000S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 76	Max LPM 283	Max PSI 95	Max BAR 6.5	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-540	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 6-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-540Q	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)1-3⁄8" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-540S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 91	Max LPM 344	Max PSI 8.3	Max BAR 5.7	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-1000	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 21-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-1000L	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄4" female, 20-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-1000-MTZ	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 164	Max LPM 617	Max PSI 113	Max BAR 7.8	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 38 mm female, 8-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403C-1000S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Cast Iron	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403P-540	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 91	Max LPM 344	Max PSI 83	Max BAR 5.7	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Polypropylene	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 6-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403P-540Q	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 91	Max LPM 344	Max PSI 83	Max BAR 5.7	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Polypropylene	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403P-540S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 91	Max LPM 344	Max PSI 83	Max BAR 5.7	Max RPM 600	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet • 220 x 200 universal flange available (U)	Housing Material Polypropylene	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403P-1000	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 86	Max LPM 326	Max PSI 83	Max BAR 5.7	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Polypropylene	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 21-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403P-1000L	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 86	Max LPM 326	Max PSI 83	Max BAR 5.7	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Polypropylene	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄4" female, 20-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403P-1000S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 86	Max LPM 326	Max PSI 83	Max BAR 5.7	Max RPM 1000	Ports 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Polypropylene	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403S-540	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 540	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Stainless Steel	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 6-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403S-540Q	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 540	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Stainless Steel	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8"" 6-spline quick coupler	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403S-540S	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 540	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Stainless Steel	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaf	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403S-1000	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Stainless Steel	Seal Material 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Max Fluid Temperature 140°F/60°C	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1-3⁄8" female, 21-spline shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
Item # 9403S-1000L	Pump Type Centrifugal	Drive Type 12-groove belt	Max GPM 140	Max LPM 530	Max PSI 104	Max BAR 7.2	Max RPM 1000	Ports 9402 models – 1-1⁄4" NPT inlet, 1" NPT outlet; 9403 models – 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet	Housing Material Stainless Steel	Seal Material Viton®/ceramic standard; Life Guard silicon carbide (B) available	Max Fluid Temperature (U) • Max. fluid temperature:	WEIGHT 40-45 lbs./18.2-20.5 kg	PTO Output 1" (25.4 mm) solid shaft	Impeller Cast Iron models – Nylon; Poly & Stainless Steel models – Polypropylene
