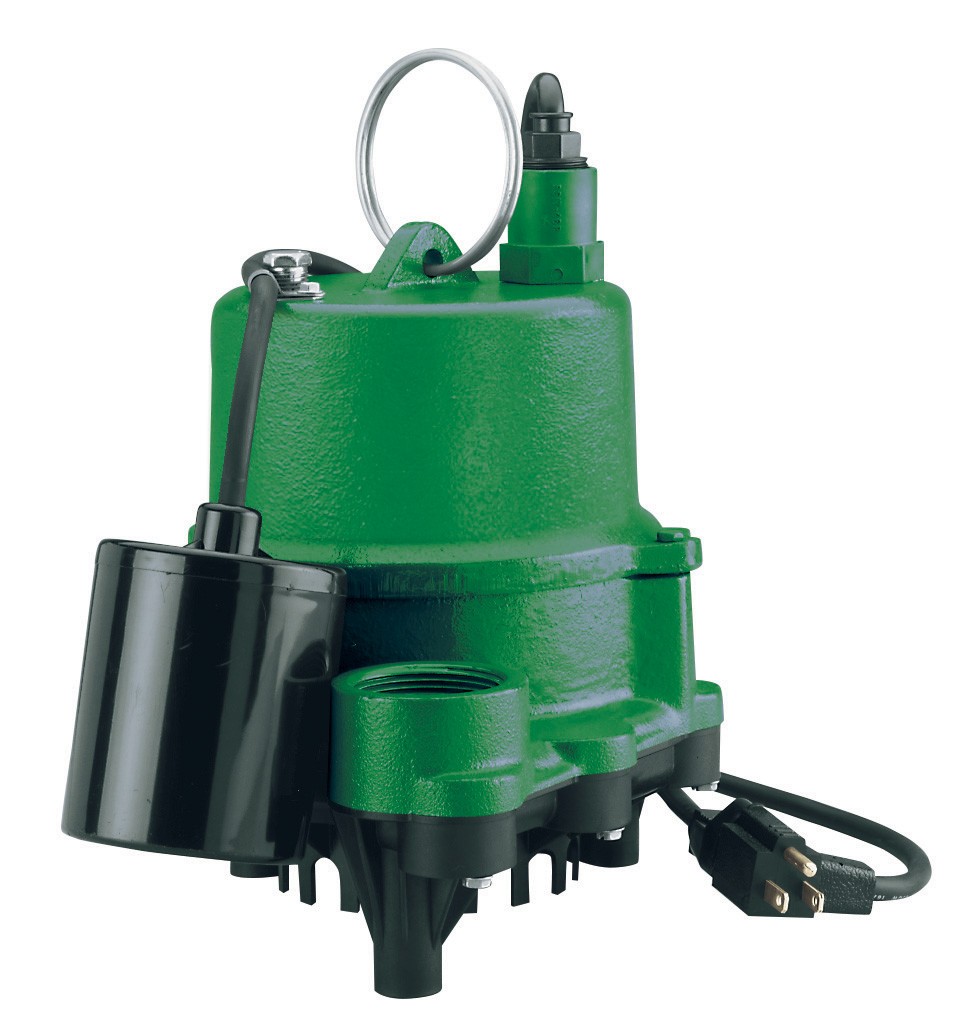

Pentair Myers ME4 Cast Iron Effluent Pumps

This product has been discontinued and replaced by Pentair Myers MDC series cast iron sump pump.

  • Construction – Heavy-duty cast iron motor housing and upper volute. Corrosion-resistant composite base ideal for effluent applications.
  • Bearings and Mechanical Seal – Permanently lubricated for long life.
  • Cord Seal – Prevents oil loss from and protection for motor if cord is damaged.
  • Overload Protection – Built-in thermal overload with automatic reset.
  • Intake – Built-in suction screen.

Specifications

Applications: Septic Tank Effluent Removal, Sump Drainage, and Circulation
Capacities: 62 GPM 235 LPM
Shut-off Head: 32’ 9.8 m
Operation Tethered: On: 14” 355.6 mm | Off: 5” 127.0 mm
Solids Handling: 1/2” spherical capability 12.7 mm
Intermittent Liquid Temp.: 130°F 55°C
Motor: 4/10 HP, 1550 RPM, 115 Volt, 60 Hz. Class B insulation. Oil-filled shaded pole containing built-in thermal overload protection with automatic reset.
Electrical Data: 115 V, 60 Hz, single phase
Acceptable pH Range: 6-8
Shaft Seals: Mechanical carbon/ceramic
Motor Housing: Cast iron
Upper Volute Case: Thermoplastic
Lower Volute Case: Thermoplastic Vortex
Power Cord: 10’ or 20’ water resistant 16-3 gauge, type SJTW-A/SJTW with integrally grounded 3-prong plug.
Discharge, NPT: 1-1/2” 38 mm
Minimum Sump Diameter: Simplex 18” 457 mm | Duplex 30” 762mm
Item #VoltagePhase CyclesCord LengthMechanical Switch TypeSwitch Setting OnSwitch Setting Off
ME40110M1151/6010'Manual--
ME40110T1151/6010'Tethered14"5"
ME40120M1151/6020'Manual--
ME40120T1151/6020'Tethered14"5"
Item #VoltagePhase CyclesCord LengthMechanical Switch TypeSwitch Setting OnSwitch Setting Off
ME40110M1151/6010'Manual--
ME40110T1151/6010'Tethered14"5"
ME40120M1151/6020'Manual--
ME40120T1151/6020'Tethered14"5"
