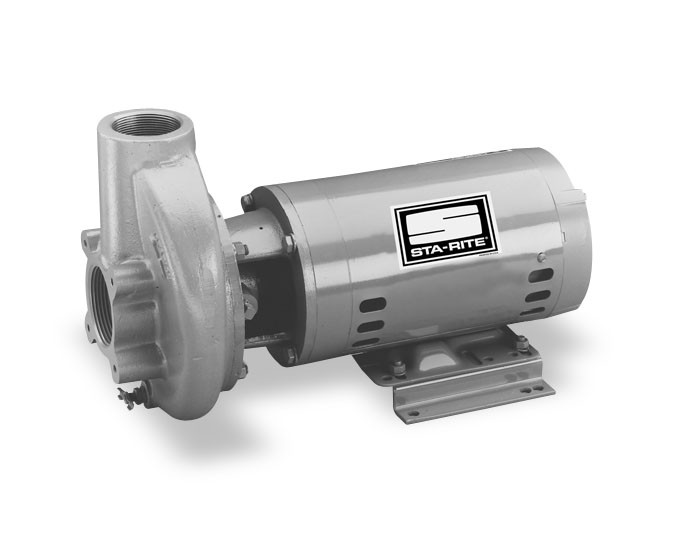

Pentair Sta-Rite CC Series High Head Straight Centrifugal Pumps

The CC Series Pumps are compact and lightweight, but rugged. Choose from 3 or 5 HP high head and medium head models.

Key Features

  • Can be installed where most other 3 and 5 HP pumps will not fit - requires just 11-3/8" x 18-1/2". Complete pumps weigh only 66 to 94 lbs.
  • 4-Position discharge permits installation with discharge horizontal or vertical, to right or left. Volute features drain port which is functional when discharge is vertical.
  • Silicon brass impeller is precision cast and machined. Dynamically balanced for long seal life and quiet operation. Non-overloading. Contains no lead. Silicon brass wear ring is replaceable.
  • Back pull-out design: entire motor may be removed for servicing impeller, seal or motor without disturbing plumbing. Centerline discharge for ease of installation.
  • Mechanical shaft seal with ceramic and carbon seal faces. Stainless steel spring and Buna-N bellows.

Warranty

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves

PerformanceCurves_High Head Straight Centrifugal Pump, 3 & 5 HP, 230V or 460V, 1- or 3-Phase, 2-1/2" Suction, 2" Discharge

Resources

Downloads
Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  Available in 3 or 5HP
MAXIMUM CAPACITY:  222 GPM (model CCHJ or CCHJ3)
FLOW at 10' LIFT and 30 PSI:  98 GPM (model CCHH or CCHH3)
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  40 PSI
MAXIMUM INLET PRESSURE:
MAXIMUM TOTAL PRESSURE:  75 PSI
SUCTION SIZE:  2-1/2" NPT
DISCHARGE SIZE:  2" NPT
VOLTAGE:  230v 1-phase OR 230v/460v 3-phase, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  125°F (52°C)
