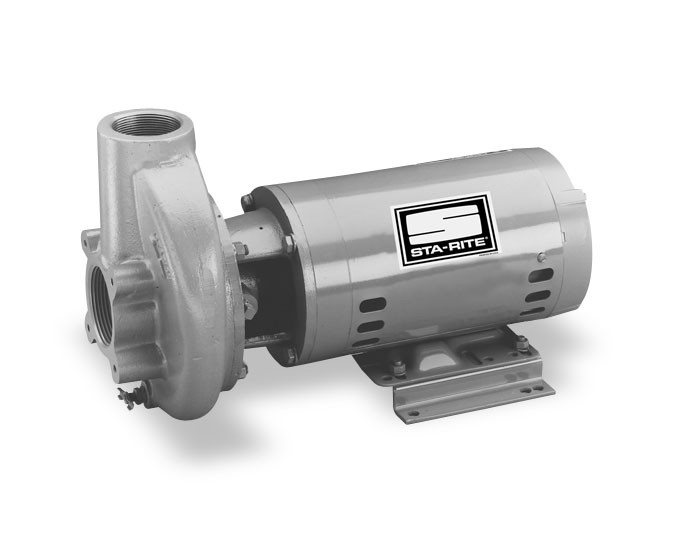

Pentair Sta-Rite CC Series Medium Head Straight Centrifugal Pumps

The CC Series Medium Head Pumps are compact and lightweight, but rugged. Also available in High Head models (see separate listing).

KEY FEATURES

  • Can be installed where most other 3 and 5 HP pumps will not fit… requires just 11-3/8" x 18-1/2".  Complete pumps weigh only 66 to 94 lbs.
  • 4-position discharge permits installation with discharge horizontal or vertical, to right or left. Volute features drain port which is functional when discharge is vertical.
  • Silicon brass impeller is precision cast and machined. Dynamically balanced for long seal life and quiet operation.Non-overloading. Contains no lead. Silicon brass wear ring is replaceable
  • Back pull-out design:  entire motor may be removed for servicing impeller, seal or motor without disturbing plumbing. Centerline discharge for ease of installation.

WARRANTY

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

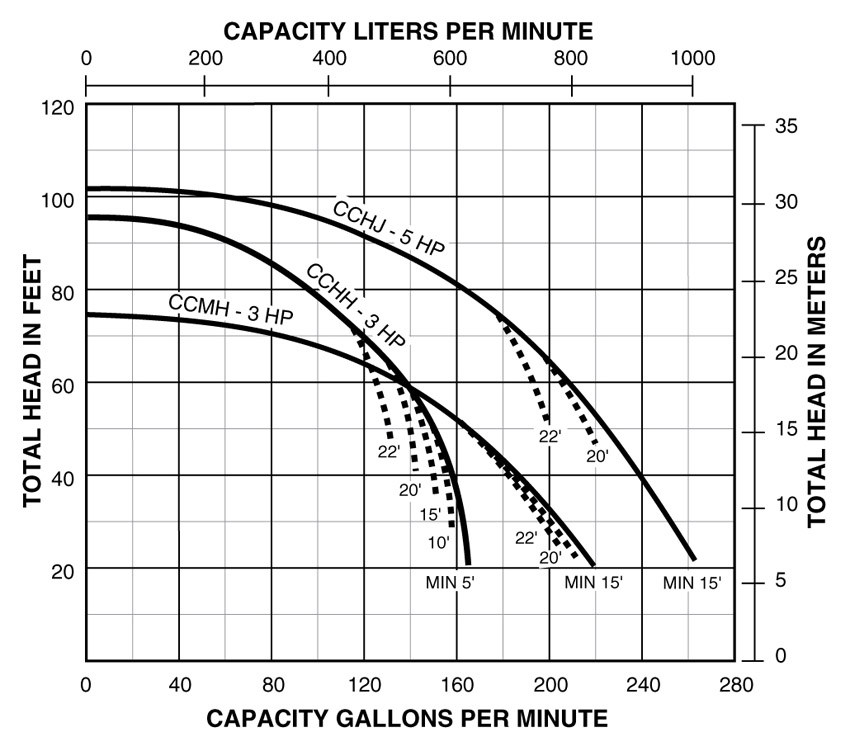

Performance Curves

PerformanceCurves_Medium Head Straight Centrifugal Pump, 3 HP, 165 GPM, 230V or 460V, 1- or 3-Phase, 2-1/2" Suction, 2" Discharge

Resources

Downloads
Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  3 HP
MAXIMUM CAPACITY:  165 GPM
FLOW at 10' LIFT and 30 PSI:  (not capable of 30 psi)
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  14 PSI
MAXIMUM TOTAL PRESSURE:  75 PSI
SUCTION SIZE:  2-1/2" NPT
DISCHARGE SIZE:  2" NPT
VOLTAGE:  230V, 1-phase OR 230v/460v, 3-phase, all 60 Hz
MAXIMUM LIQUID TEMPERATURE:  125°F (52°C)
