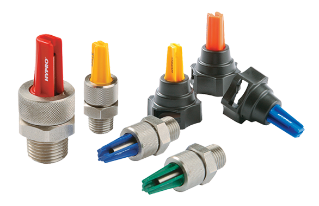

Pentair Hypro Boom X Tender XT
The Boom X Tender is a boomless spray nozzle that is ideal for applications where a conventional boom cannot be used due to obstacles such as, power poles, guardrails, fences, trees, etc.
- Large droplet size reduces spray drift and enhances canopy penetration
- Maintains a consistent spray distribution with an adjustable spray swath up to 16 feet
Specifications
Common Use:
Weeds
Pattern:
Boomless Fan
Technology:
Pre-Orifice
Material:
Stainless Steel or Polyacetal
Spray Angle:
105 Degrees
Pressure Range:
30-60 PSI (2-5 BAR)
| Item # | MNPT Thread | Parts Kits (MNPT Version) | Nozzle Size | Color | Swath (Ft) at 40 PSI(48 In High) | Swath (M) at 2.76 Bar (1.22 M High) |
|---|---|---|---|---|---|---|
| FC-XT010 | XT010 (1/4") | XT010-GIOKIT | 10 | Green | 13 | 3.9 |
| FC-XT020 | XT020 (1/4") | XT020-GIOKIT | 20 | Blue | 15 | 4.8 |
| FC-XT024 | XT024 (1/4") | XT024-GIOKIT | 24 | Yellow | 16 | 4.9 |
| FC-XT043 | XT043 (3/8") | XT043-GIOKIT | 43 | 14 | 4.4 | |
| XT080 | XT080 (1/2") | XT080-GIOKIT | 80 | 13 | 3.9 | |
| XT167 | 3/4" | XT167-GIOKIT | 167 | White | 15 | 4.3 |
| XT215 | XT215 (3/4") | XT215-GIOKIT | 215 | Gray | 16 | 4.9 |
| Item # | MNPT Thread | Parts Kits (MNPT Version) | Nozzle Size | Color | Swath (Ft) at 40 PSI(48 In High) | Swath (M) at 2.76 Bar (1.22 M High) |
|---|---|---|---|---|---|---|
| FC-XT010 | XT010 (1/4") | XT010-GIOKIT | 10 | Green | 13 | 3.9 |
| FC-XT020 | XT020 (1/4") | XT020-GIOKIT | 20 | Blue | 15 | 4.8 |
| FC-XT024 | XT024 (1/4") | XT024-GIOKIT | 24 | Yellow | 16 | 4.9 |
| FC-XT043 | XT043 (3/8") | XT043-GIOKIT | 43 | 14 | 4.4 | |
| XT080 | XT080 (1/2") | XT080-GIOKIT | 80 | 13 | 3.9 | |
| XT167 | 3/4" | XT167-GIOKIT | 167 | White | 15 | 4.3 |
| XT215 | XT215 (3/4") | XT215-GIOKIT | 215 | Gray | 16 | 4.9 |
