Pentair Hypro Variable Pressure Ceramic 120˚ Spray Nozzles

Pentair Hypro Variable Pressure Ceramic spray nozzles are universal flat spray nozzles that offer a finer droplet spectrum.

  • Ideal for applications of contact pesticides
  • Fine to coarse spray droplet spectrum for high coverage applications
  • Extended pressure range
  • Low-drift within the pressure range up to 40 psi
Explore purchase options available for this product.
Where to Buy

Key Features

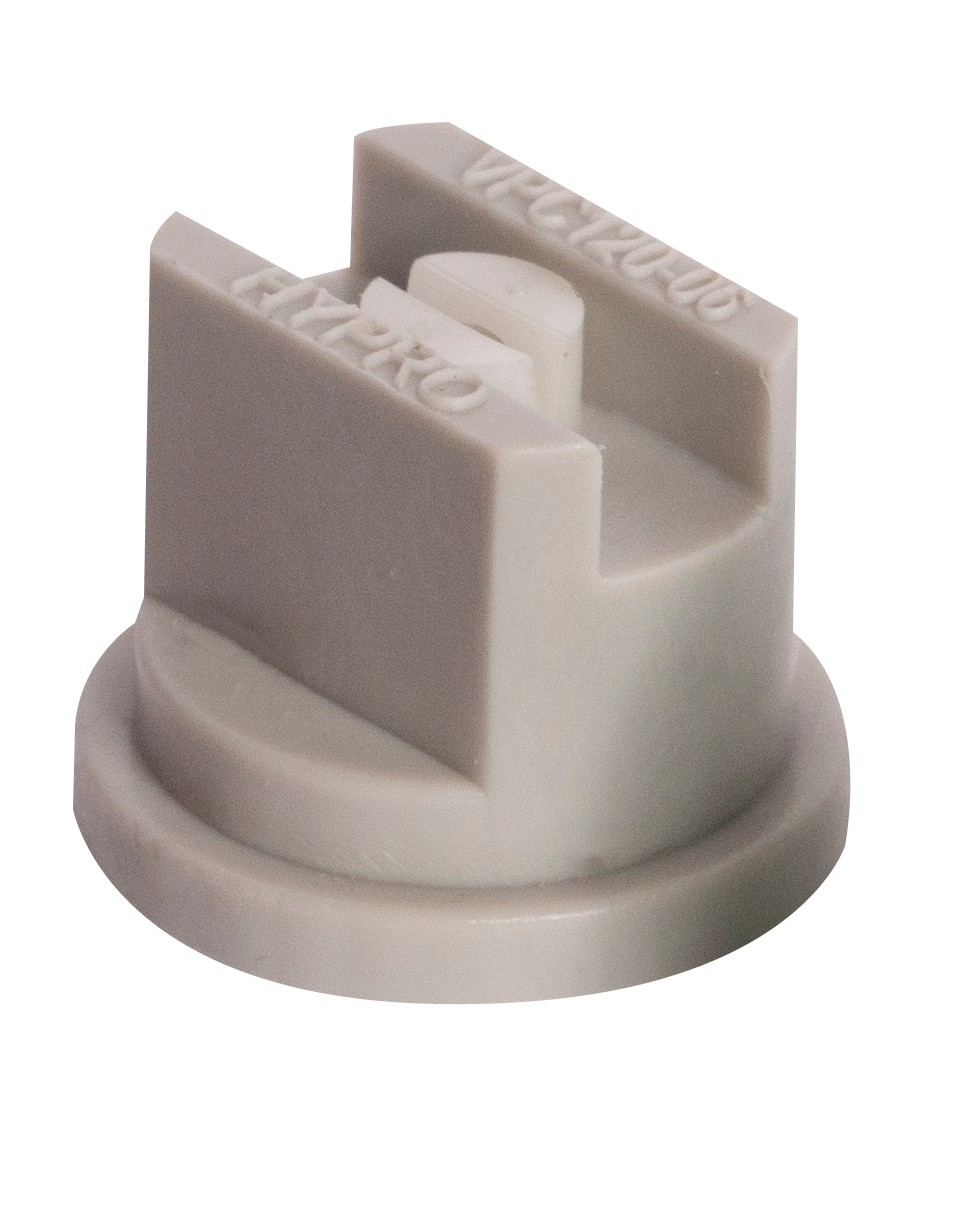

Variable Pressure Ceramic 120˚ Spray Nozzle

Spray pattern imaging

Spray Pattern

High-speed imaging of spray pattern produced by the Pentair Hypro Variable Pressure Ceramic spray nozzles.

Spray pattern imaging

Spray Pattern

High-speed imaging of spray pattern produced by the Pentair Hypro Variable Pressure Ceramic spray nozzles.

0101

Specifications

Common Use: General
Pattern: Tapered Flat Fan
Technology: Elliptical Orifice
Material: Ceramic
Spray Angle: 120˚
Configuration: Tips, FastCap
Item #Nozzle SizeDroplet SizePressure RangeFlow Rate
VPC120-0101F20-75 PSI (1.5-5 BAR)0.10-0.16 GPM (0.28-0.51 LPM)
VPC120-015015F20-75 PSI (1.5-5 BAR)0.16-0.24 (0.42-0.76 LPM)
VPC120-0202F20-75 PSI (1.5-5 BAR)0.21-0.32 GPM (0.56-1.03 LPM)
VPC120-025025F20-75 PSI (1.5-5 BAR)0.21-0.37 GPM (0.70-1.28 LPM)
VPC120-0303M-F20-75 PSI (1.5-5 BAR)0.26-0.44 GPM (0.84-1.53 LPM)
VPC120-0404M-F20-75 PSI (1.5-5 BAR)0.34-0.59 GPM) (1.12-2.04 LPM)
VPC120-0505M20-75 PSI (1.5-5 BAR)0.43-0.74 GPM (1.39-2.55 LPM)
VPC120-0606C-M20-75 PSI (1.5-5 BAR)0.51-0.88 (1.67-3.05 LPM)
VPC120-0808C-M20-75 PSI (1.5-5 BAR)0.88-1.20 GPM (2.23-4.08 LPM)
Item #Nozzle SizeDroplet SizePressure RangeFlow Rate
VPC120-0101F20-75 PSI (1.5-5 BAR)0.10-0.16 GPM (0.28-0.51 LPM)
VPC120-015015F20-75 PSI (1.5-5 BAR)0.16-0.24 (0.42-0.76 LPM)
VPC120-0202F20-75 PSI (1.5-5 BAR)0.21-0.32 GPM (0.56-1.03 LPM)
VPC120-025025F20-75 PSI (1.5-5 BAR)0.21-0.37 GPM (0.70-1.28 LPM)
VPC120-0303M-F20-75 PSI (1.5-5 BAR)0.26-0.44 GPM (0.84-1.53 LPM)
VPC120-0404M-F20-75 PSI (1.5-5 BAR)0.34-0.59 GPM) (1.12-2.04 LPM)
VPC120-0505M20-75 PSI (1.5-5 BAR)0.43-0.74 GPM (1.39-2.55 LPM)
VPC120-0606C-M20-75 PSI (1.5-5 BAR)0.51-0.88 (1.67-3.05 LPM)
VPC120-0808C-M20-75 PSI (1.5-5 BAR)0.88-1.20 GPM (2.23-4.08 LPM)
