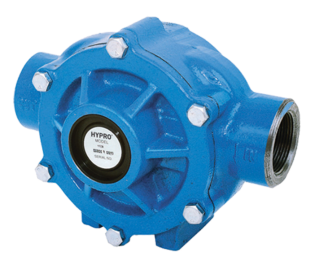

Pentair Hypro 1502 Series 6 Roller Pumps

The 1502 series, 6 roller, pump achieves up to 62 gpm (235 lpm) and 200 psi (13.8 bar). The series includes models 1502C, 1502N, and 1502XL.

  • Shaft rotation: Counter clockwise when looking at the shaft end(Clockwise available)
  • Rollers: Super rollers standard [Poly (T3) available]
  • Recommended PTO Torque Arm Kit 3430-0540
  • Rotor: Cast Iron, Ni-Resist or Silvercast
Explore purchase options available for this product.
Where to Buy

Specifications

Pump Type: Roller Pump
Ports: 1-1/2" NPT (BSP available on 1502C)
Max Fluid Temperature: 140°F/60°C
WEIGHT: 30 lbs./13.6 kg
Shaft Output (US): 15/16"
Shaft Output (Metric): 23.8 mm
Shaft: Solid
Item #Max GPMMax LPMMax PSIMax BARMax RPMHousing MaterialSeal Material
1502C6223520013.81000Cast IronBuna-N standard
1502C-T36223520013.81000Cast IronBuna-N standard
1502C-R6223520013.81000Cast IronBuna-N standard
1502XL6223520013.81000SilvercastViton® standard
1502C-Q 6223520013.81000SilvercastViton® standard
1502XL-R 6223520013.81000SilvercastViton® standard
1502XL-T3 6223520013.81000SilvercastViton® standard
Item #Max GPMMax LPMMax PSIMax BARMax RPMHousing MaterialSeal Material
1502C6223520013.81000Cast IronBuna-N standard
1502C-T36223520013.81000Cast IronBuna-N standard
1502C-R6223520013.81000Cast IronBuna-N standard
1502XL6223520013.81000SilvercastViton® standard
1502C-Q 6223520013.81000SilvercastViton® standard
1502XL-R 6223520013.81000SilvercastViton® standard
1502XL-T3 6223520013.81000SilvercastViton® standard
