WhisperFloXF® High Performance Commercial Pool Pump

The most powerful, efficient WhisperFlo® ever

The new WhisperFloXF® pool pump was developed using the most advanced engineering tools available -- CFD (Computational Fluid Dynamics) and FEA (Finite Element Analysis). The proprietary impeller design delivers a higher level of precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the water flow inside the volute, raising the efficiency even higher. With capabilities in excess of 200 gpm, WhisperFloXF is an ideal choice for many residential and commercial applications; especially those involving water features, negative edges and slides.

  • Drop-in replacement for original WhisperFlo; and optional riser plate enables easy Challenger replacement
  • Modular plumbing system means less need to cut and glue pipe
  • External port threading and tool-free union nuts need only hand-tightening
  • Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection
Explore purchase options available for this product.
Where to Buy


New Product Features

  • New upgraded dual-compartment motor for simplified field wiring
  • New hydraulic isolator separates priming water from pumping water for faster priming, more turbulence-free flow and increased efficiency
  • New union connectors included for connecting directly to 2.5" or 3" plumbing

Slower Is Better for Energy Savings

Pentair WhisperFloXF High Performance Pool Pump is Energy Star rated, high water flow/low energy consumption

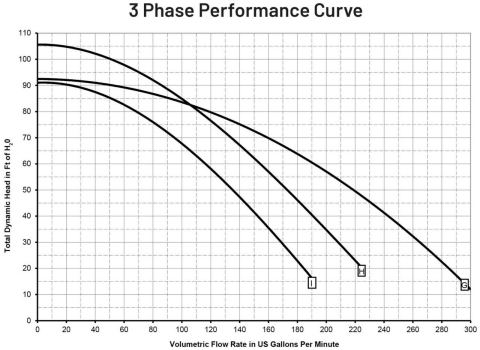

Image | WhisperFloXF 3 Phase Performance Curve

Design Delivers on Precision

Use a high-performing pool pump that uses water efficiently to minimize pump operation costs. The impeller design delivers a high-level of precision concentricity for increased efficiency.

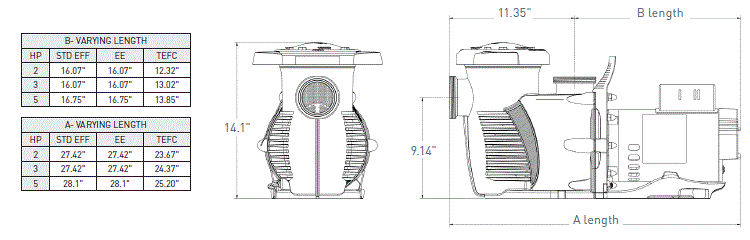

Dimensions

Specifications

Item #ModelDescriptionVoltageFull Load AmpsHPSFSFHPPrimary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs.)Curve Key
022012XF-8WhisperFloXF Standard Single Speed Full Rated Pump208V-230V11.5-11.021.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022034XFET-20WhisperFloXF Commercial Single Speed TEFC Pump208V-230V20.0-18.8515UL, NSF2-1/2 x 2-1/2” OR 3x3”67A
Item #ModelDescriptionVoltageFull Load AmpsHPSFSFHPPrimary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs.)Curve Key
022012XF-8WhisperFloXF Standard Single Speed Full Rated Pump208V-230V11.5-11.021.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022034XFET-20WhisperFloXF Commercial Single Speed TEFC Pump208V-230V20.0-18.8515UL, NSF2-1/2 x 2-1/2” OR 3x3”67A
