Pentair Hypro 1542P Series Transfer Pump

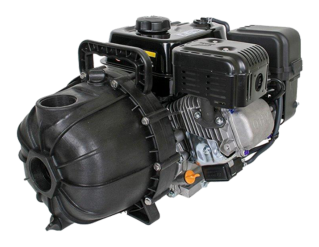

The Hypro 1542P high-powered, self-priming transfer pumps deliver industry leading performance.
- Proven Hypro PowerPro and Honda® engines
- Connection Ports available in 2" x 2" NPT or 2" Universal Flange
- Elastomers: EPDM standard, Viton optional
- Poly impeller with stainless steel insert (3”); Nylon impeller (2”)
- Suction Lift: 25 ft./7.62 m
- Available with or without frame
Specifications
Pump Type:
Transfer
Drive Type:
Gas Engine
Housing Material:
Polypropylene
Seal Material:
EPDM Mechanical
Ports:
2" x 2" NPT
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Impeller | Engine Manufacturer & HP |
|---|---|---|---|---|---|---|
| 1542P-65SP | 200 | 757 | 58 | 4.0 | 5 Vane | PowerPro 6.5 hp |
| 1542P-65SPM | 200 | 757 | 58 | 4.0 | 5 Vane | PowerPro 6.5 hp with frame |
| 1542P-65ESP | 200 | 757 | 58 | 4.0 | 5 Vane | PowerPro 6.5 hp with electric start |
| 1542P-160HSP | 200 | 757 | 58 | 4.0 | 5 Vane | Honda GX160 |
| 1542P-200HSP | 200 | 757 | 58 | 4.0 | 5 Vane | Honda GX200 |
| 1542P-950BSP | 200 | 757 | 58 | 4.0 | 5 Vane | Briggs & Stratton 950 |
| 1542P-55SP | 150 | 568 | 58 | 4.0 | 3 Vane | PowerPro 6.5 hp |
| 1542P-550BSP | 150 | 568 | 58 | 4.0 | 3 Vane | Briggs & Stratton 550 |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Impeller | Engine Manufacturer & HP |
|---|---|---|---|---|---|---|
| 1542P-65SP | 200 | 757 | 58 | 4.0 | 5 Vane | PowerPro 6.5 hp |
| 1542P-65SPM | 200 | 757 | 58 | 4.0 | 5 Vane | PowerPro 6.5 hp with frame |
| 1542P-65ESP | 200 | 757 | 58 | 4.0 | 5 Vane | PowerPro 6.5 hp with electric start |
| 1542P-160HSP | 200 | 757 | 58 | 4.0 | 5 Vane | Honda GX160 |
| 1542P-200HSP | 200 | 757 | 58 | 4.0 | 5 Vane | Honda GX200 |
| 1542P-950BSP | 200 | 757 | 58 | 4.0 | 5 Vane | Briggs & Stratton 950 |
| 1542P-55SP | 150 | 568 | 58 | 4.0 | 3 Vane | PowerPro 6.5 hp |
| 1542P-550BSP | 150 | 568 | 58 | 4.0 | 3 Vane | Briggs & Stratton 550 |
