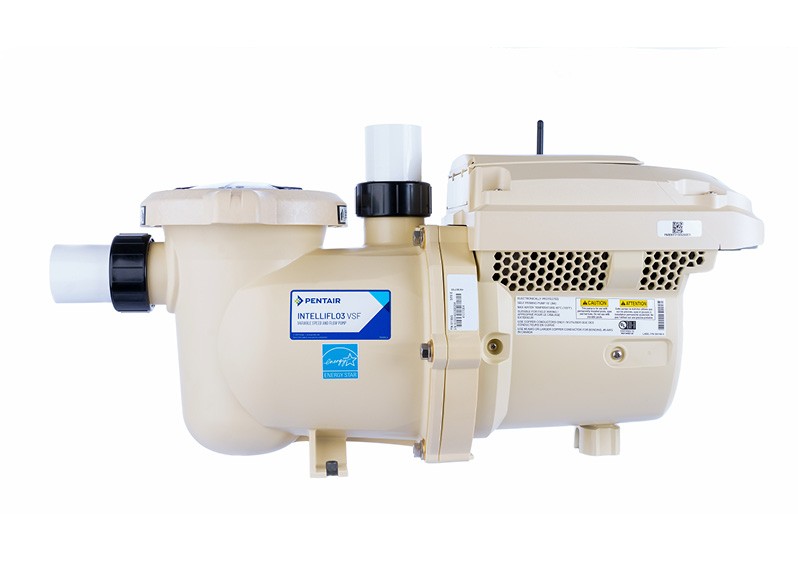

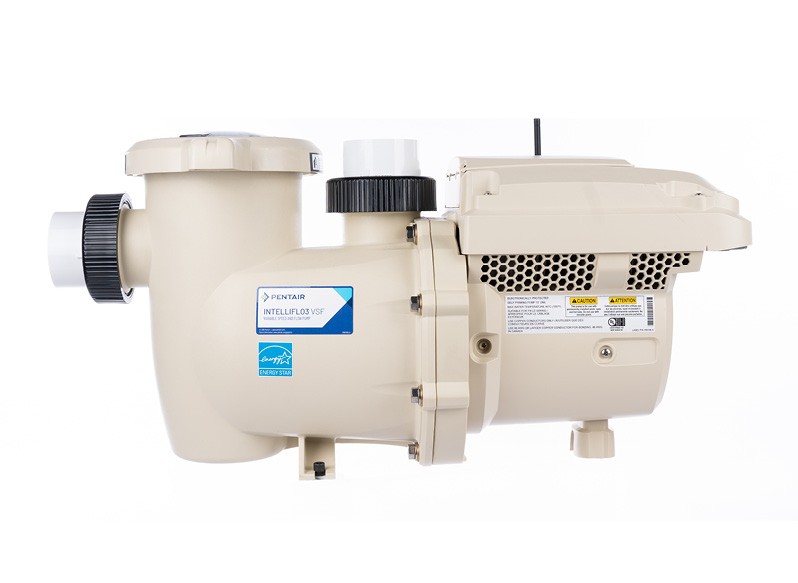

IntelliFlo3® VSF Pool Pump

The Ultimate Award-Winning Pool Pump

The IntelliFlo3 VSF Pool Pump is designed to be versatile and smart, allowing you to control pool lighting and more. It operates quietly and is available in two horsepower models: 1.5HP and 3.0HP to suit your pool's needs. The pump has received accolades for its unparalleled efficiency, quality, and technology, and is designed to take the pool industry to the next level.

App Connectivity: Get real-time status information, alerts, and notifications in the Pentair Home app or on the pump touchscreen. You can connect the pump to Wi-Fi to keep the software current with over-the-air (OTA) updates.
Automation: Optional entry-level automation allows you to connect your pump to two additional pieces of pool equipment, such as pool lighting, for easy control from anywhere, anytime - using the Pentair Home app. The pump has received accolades for its unparalleled efficiency, quality, and technology, and is designed to take the pool industry to the next level. Including the most advanced pump-based automation system with seamless Wi-Fi control, so you can monitor the pump from anywhere.
Flow Control: The pump features built-in sensorless flow control for effortless optimal flow. It automatically adjusts to the pool's needs to keep it clean and running smoothly. It turns up after a storm or party or down when the pool is not in full-use mode.
Energy Savings: The combination of variable speed and sensorless flow saves you up to 90%* on energy consumption. Slower speed and regulated flow save energy for pool owners.
Quiet Design: This VSF pool pump offers unparalleled performance without the noise.

Specifications:

Available in 3.0HP and 1.5HP
WEF 7.1 THP 3.0
WEF 9.4 THP 1.5

Explore purchase options available for this product.

Where to Buy

Resources for Pros

See the Pump in Action

Learn more about the pump that does so much more! From patented flow technology to the ability to manage your lights! See the pump in action.

Explore IF3 VSF

Key Features

Maintain optimum flow

Even with a high filter load from a big storm or party, your pump adjusts to pool conditions keeping your pool performing at its best.

Give the utility bill a break

The combination of variable speed and sensorless flow saves you up to 90%*

Put your pool on autopilot

The Pentair Home app gives seamless WiFi or Bluetooth® wireless technology control, so you can monitor the pump or change the flow rate from anywhere. Add the optional built-in automation to control up to two other pool devices.

Maintain optimum flow

Even with a high filter load from a big storm or party, your pump adjusts to pool conditions keeping your pool performing at its best.

Give the utility bill a break

The combination of variable speed and sensorless flow saves you up to 90%*

Put your pool on autopilot

0101

It's Easy to Own a Pool When it's Connected

With the Pentair Home app, simply adjust speed, flow, temp, heat, and timers from a smart device to avoid the trip to the pool pad.

Our Pentair connected products give you a completely intuitive and connected experience for all your connected Pentair products. From product control to monitoring to real-time alerts, the Pentair Home App delivers convenience and peace of mind.

A Pump that Knows Your Pool's Flow

The IntelliFlo3 gives you confidence and peace of mind in every swim moment. The power to self-adjust to even the most demanding pool features gives you more time to love all the good things about being a pool owner.

Why Flow Matters

Variable speed and flow technology provide the ultimate system performance, crystal clear water, and energy savings.

Learn More

Resources

Brochures

Sell Sheets

Manuals

Brochure | IntelliFlo3 VSF Pool PumpBrochure | IntelliFlo3 VSF Pool Pump

Brochure | Pentair Pump FamilyBrochure | Pentair Pump Family

Sell Sheet | IntelliFlo3 VSF Pool PumpSell Sheet | IntelliFlo3 VSF Pool Pump

Specifications

Item #	DESCRIPTION	THP	WEF	Max Input Voltage	FREQUENCY	Full Load Amps	Port Size (NPT)	Weight (LBS)	CERTIFICATIONS
011075	IntelliFlo3 VSF 3.0HP	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011076	IntelliFlo3 VSF 3.0HP with I/O board	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011077	IntelliFlo3 VSF 3.0HP with touchscreen	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011078	IntelliFlo3 VSF 3.0HP with touchscreen and I/O board	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011065	IntelliFlo3 VSF 1.5HP	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011066	IntelliFlo3 VSF 1.5HP with I/O board	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011067	IntelliFlo3 VSF 1.5HP with touchscreen	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011068	IntelliFlo3 VSF 1.5HP with touchscreen and I/O board	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
356159Z	IntelliFlo3 VSF Touchscreen Universal Add On	3 & 1.5
356365Z	IntelliFlo3 VSF optional universal relay board kit	3 & 1.5

Item #	DESCRIPTION	THP	WEF	Max Input Voltage	FREQUENCY	Full Load Amps	Port Size (NPT)	Weight (LBS)	CERTIFICATIONS
011075	IntelliFlo3 VSF 3.0HP	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011076	IntelliFlo3 VSF 3.0HP with I/O board	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011077	IntelliFlo3 VSF 3.0HP with touchscreen	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011078	IntelliFlo3 VSF 3.0HP with touchscreen and I/O board	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011065	IntelliFlo3 VSF 1.5HP	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011066	IntelliFlo3 VSF 1.5HP with I/O board	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011067	IntelliFlo3 VSF 1.5HP with touchscreen	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011068	IntelliFlo3 VSF 1.5HP with touchscreen and I/O board	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
356159Z	IntelliFlo3 VSF Touchscreen Universal Add On	3 & 1.5
356365Z	IntelliFlo3 VSF optional universal relay board kit	3 & 1.5
357831Z	IntelliFlo3 VSF Riser Base Kit	1.5
357832Z	IntelliFlo3 VSF Riser Base Kit	1.5
357833Z	IntelliFlo3 VSF Riser Base Kit	3.0

Show less

Item #	DESCRIPTION	THP	WEF	Max Input Voltage	FREQUENCY	Full Load Amps	Port Size (NPT)	Weight (LBS)	CERTIFICATIONS
011075	IntelliFlo3 VSF 3.0HP	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011076	IntelliFlo3 VSF 3.0HP with I/O board	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011077	IntelliFlo3 VSF 3.0HP with touchscreen	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011078	IntelliFlo3 VSF 3.0HP with touchscreen and I/O board	3	7.1	208-230	50/60	12.4-11.2	2" x 2" or 2.5" x 2.5" or 3" x 3"	55	UL‡, NSF/ANSI 50§
011065	IntelliFlo3 VSF 1.5HP	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011066	IntelliFlo3 VSF 1.5HP with I/O board	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011067	IntelliFlo3 VSF 1.5HP with touchscreen	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
011068	IntelliFlo3 VSF 1.5HP with touchscreen and I/O board	1.5	9.4	115/208-230	50/60	12/6.4-5.9	1.5" x 1.5" or 2" x 2"	48	UL‡, NSF/ANSI 50§
356159Z	IntelliFlo3 VSF Touchscreen Universal Add On	3 & 1.5
356365Z	IntelliFlo3 VSF optional universal relay board kit	3 & 1.5
357831Z	IntelliFlo3 VSF Riser Base Kit	1.5
357832Z	IntelliFlo3 VSF Riser Base Kit	1.5
357833Z	IntelliFlo3 VSF Riser Base Kit	3.0

Show less

_{‡ ‘UL’ indicates that the pump bears a UL mark, and/or a cUL mark, signifying evaluation to UL 1081, the US Standard for Safety of Swimming Pools Pumps, Filters, and Chlorinators, and/or to CSA C22.2 No. 108, the Canadian Standard for Liquid Pumps.}

_{§ ‘NSF/ANSI 50’ indicates that the pump bears a mark signifying evaluation to NSF/ANSI/CAN 50, the Standard for Equipment and Chemicals for Swimming Pools, Spas, Hot Tubs, and Other Recreational Water Facilities.}

Support & Resource Tools

Know Your Water. Own Your Water.

Have Questions About This Product?

We have answers! Visit the Help Center for expert insights from Pentair Pool.

Search the Help Center

*Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh In a 20,000-gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm. plumbing size and length, pump model, service factor and other hydraulic factors. Individual Weighted Energy Factor (WEF) scores and savings may vary by model.
