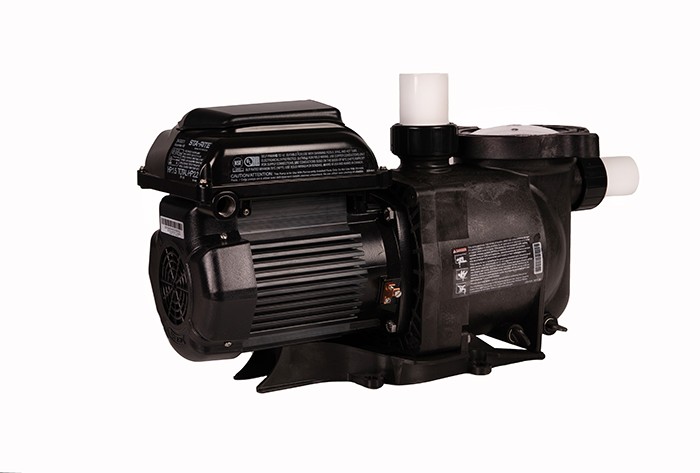

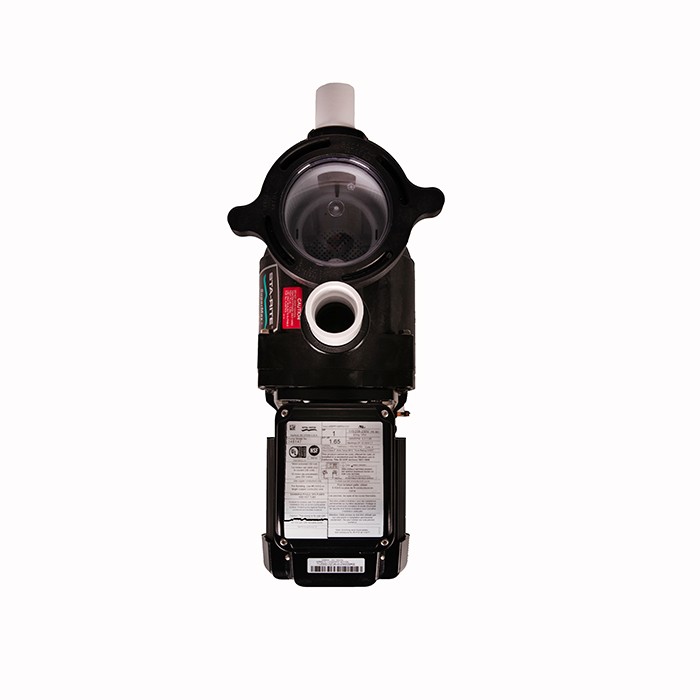

SuperMax® VS Variable Speed Pump

A Variable Speed Pool Pump with Energy Cost Savings of Up to 80%*

For pool owners who want to step-up to the cost savings of variable speed technology, the SuperMax VS pump is the wise choice. SuperMax VS pump is engineered for easy installation,simple operation, and trouble-free service.

  • Variable speed technology costs significantly less to operate
  • Ideal for standard pools requiring up to 1.5 hp pump
  • 110/230V and 50/60 Hz capability
  • Real-time clock with 24-hour memory retention
  • Simple, intuitive user interface is easy to program and operate
  • Easy to access electrical connections for simple installation
  • Three operating speed settings plus override capability
  • SuperMax pump by Pentair is a direct replacement for the Hayward® Super Pump® **
  • WEF 9.0 THP 2.2
  • Can be controlled remotely using digital inputs or RS485
Explore purchase options available for this product.
Where to Buy
EcoSelect logo
TradeGrade Logo in Blue

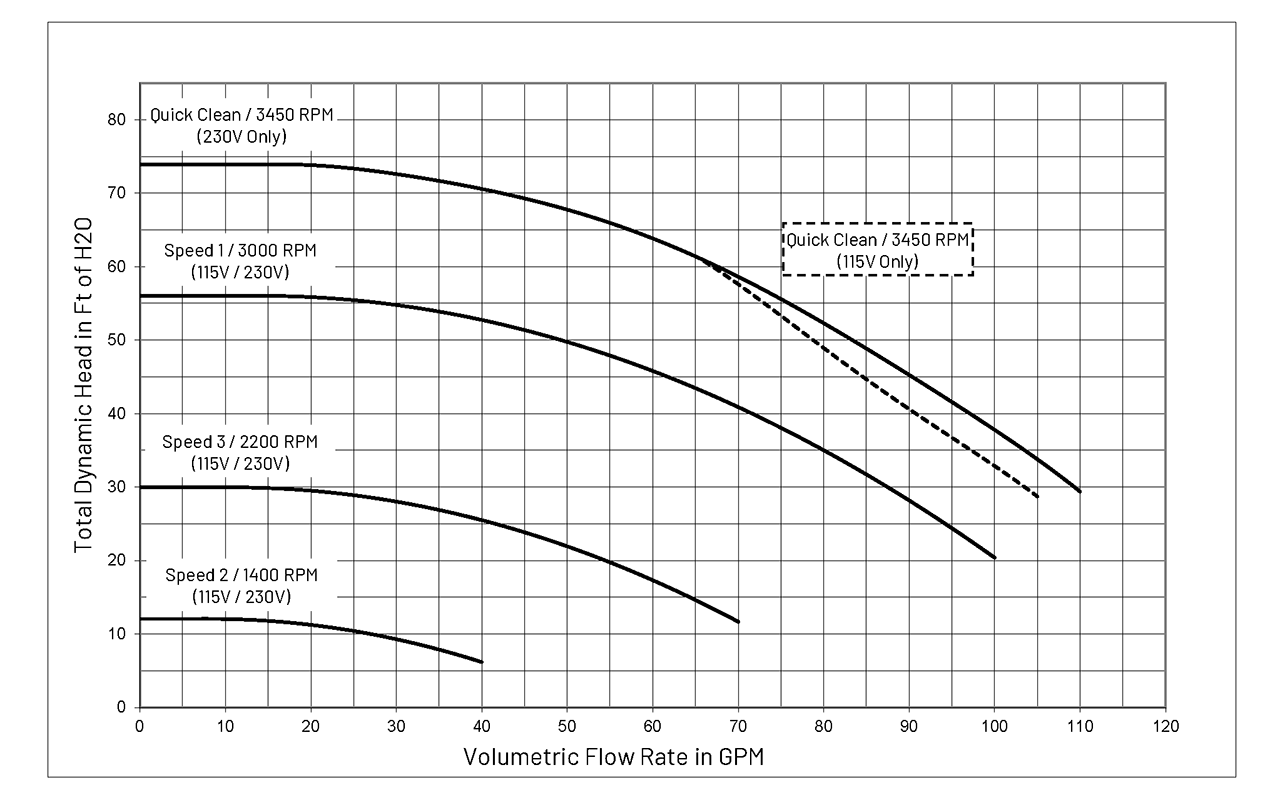

Performance Curves

true

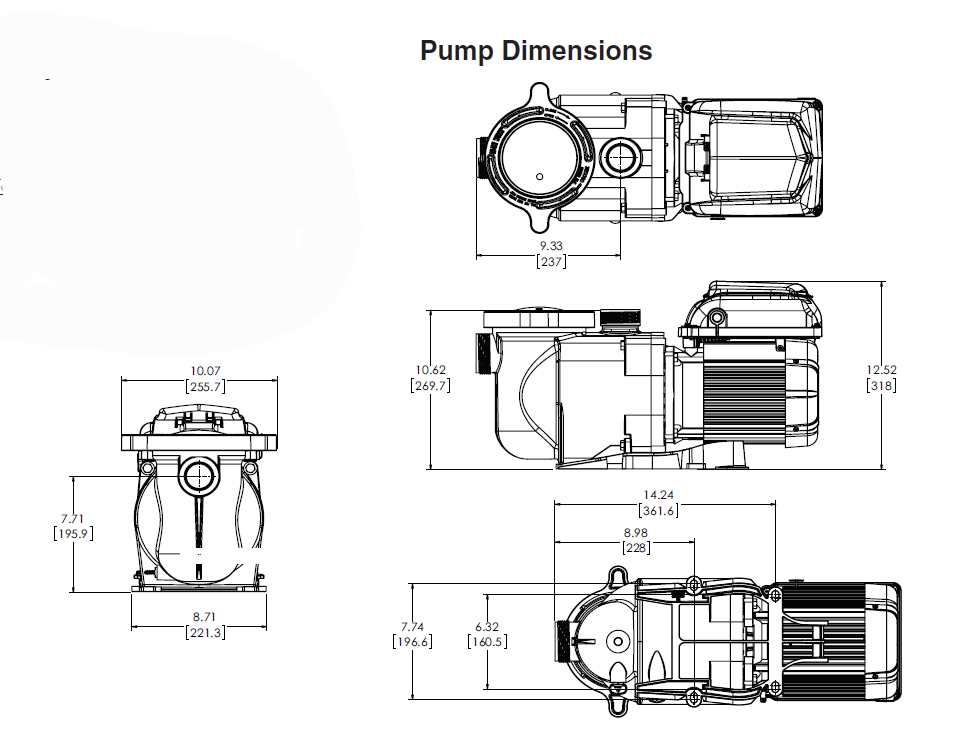

Dimensional Drawings

SuperMax VS Pump Dimension Drawings
blue-pure-water-wave-splash-white-background-horizontal-7500x5000-image-file-652635500

Energy Star Certified

The SuperMax VS pump features some of the smartest pump technology available. This results in increased energy savings over conventional single- or two-speed pumps, up to 80%.*

specifications

Item #modelTHPWEFService FactorHHPVoltageFull Load AmpsSFHPPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)Purchase Options
343001SuperMax VS Variable Speed2.29.01.01.08115/208-23013.2/12.0-11.52.2UL‡, NSF/ANSI 50§, APSP1-1/2 in.53Available Through Dealer
Item #modelTHPWEFService FactorHHPVoltageFull Load AmpsSFHPPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)Purchase Options
343001SuperMax VS Variable Speed2.29.01.01.08115/208-23013.2/12.0-11.52.2UL‡, NSF/ANSI 50§, APSP1-1/2 in.53Available Through Dealer

‡ ‘UL’ indicates that the pump bears a UL mark, and/or a cUL mark, signifying evaluation to UL 1081, the US Standard for Safety of Swimming Pools Pumps, Filters, and Chlorinators, and/or to CSA C22.2 No. 108, the Canadian Standard for Liquid Pumps.

§ ‘NSF/ANSI 50’ indicates that the pump bears a mark signifying evaluation to NSF/ANSI/CAN 50, the Standard for Equipment and Chemicals for Swimming Pools, Spas, Hot Tubs, and Other Recreational Water Facilities.

Underwater shot of the swimming pool with bubbles

*Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool. Actual savings may vary based on local utility. rates, pool size, pump run time, pump horsepower, pump rpm, plumbing size and length, pump model, service factor and other hydraulic factors

**Hayward® and Super Pump® are registered trademarks of Hayward Industries, Inc.
