IntelliPro VS+SVRS Variable Speed Pump

IntelliPro VS+SVRS Variable Speed Pump

The Energy-saving Sta-Rite® Variable-speed Pump With a Built-in Safety Vacuum Release System

IntelliPro pumps combine variable speed technology, onboard digital intelligence and permanent magnet motors (used in hybrid cars) to reduce pump-related energy costs by up to 90%* The IntelliPro VS+SVRS pump models were the first swimming pool pumps to feature a built-in Safety Vacuum Release System that detects drain blockage and automatically shuts the pump off.

Ability to program exact pump speeds for specific operations – filtering, heating, cleaning, spa jets, water features and more
SVRS complies with Virginia Graeme Baker Safety Act
Built-in diagnostics protect the IntelliPro pump from the most common causes of premature failure –overheating, freezing, and voltage irregularities.
Includes priming protection. No SVRS calibrations needed. Built-in SVRS cannot be turned off.
Safety lock-out feature (password protected) prevents pump speed settings from being changed by unauthorized personnel
Ability to set minimum and maximum speeds so pump will only operate within the ranges set to help assure safe operation and long life
Compatible with Pentair Automation Systems
Compliant with the current ASME A112.19.17 standard for Safety Vacuum Release Systems (SVRS)
WEF 6.9 THP 3.95

Explore purchase options available for this product.

Where to Buy

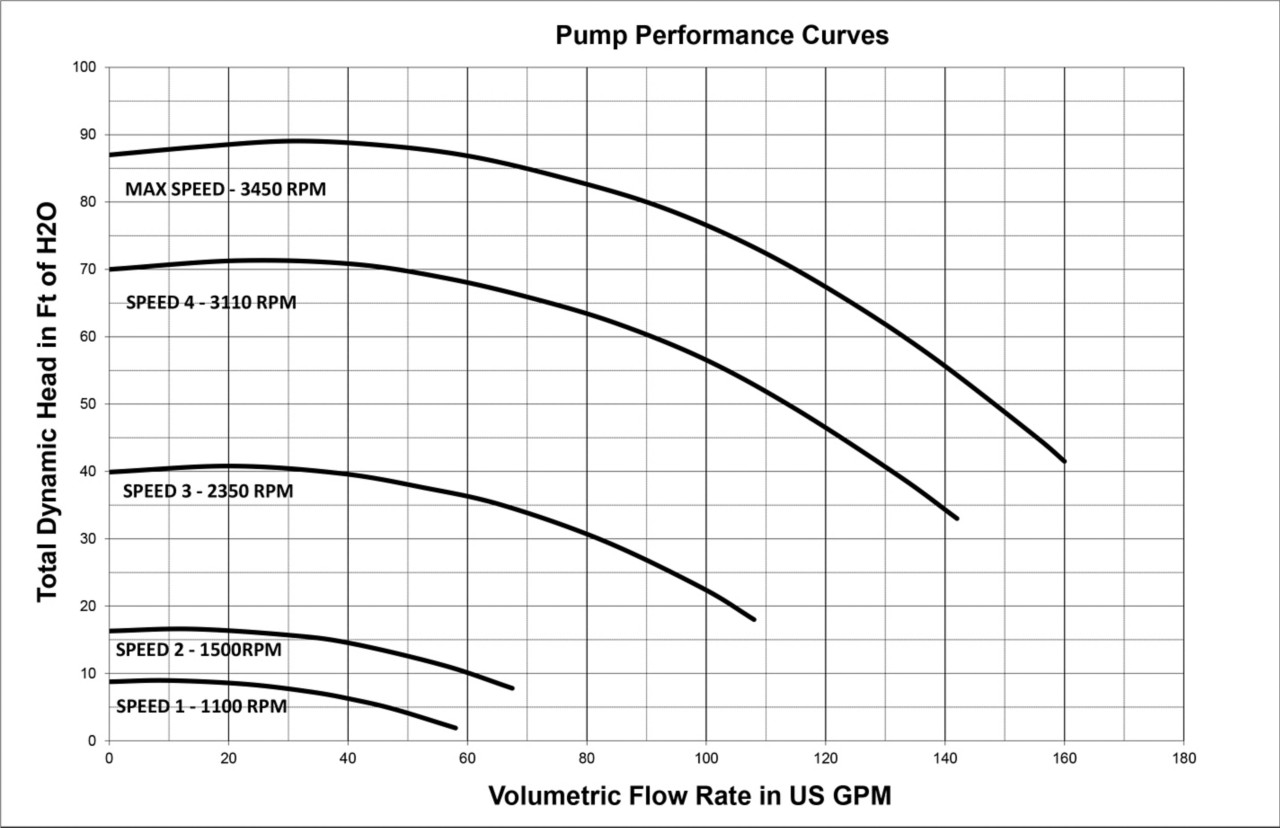

Performance Curves

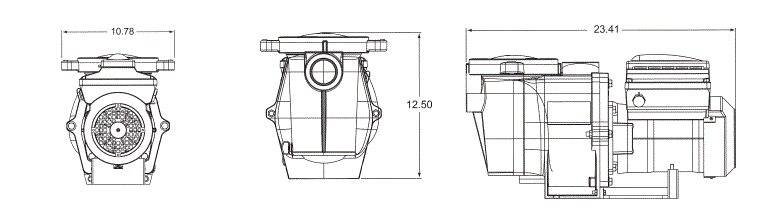

Dimensional Drawing

Energy Star Certified

The IntelliPro Variable Speed inground pool pumps feature some of the smartest pump technology available and has received an ENERGY STAR® Certification. You can expect increased energy savings over conventional single- or two-speed pumps, up to 90%.*

Calculate Your Savings

IntelliPro Video

See more of how the IntelliPro Variable Speed High Performance Pool Pump stacks up.

Homeowner and Pro Resources

Brochures

Manuals

REPLACEMENT PARTS

Certifications

Specifications

Item #	THP	WEF	Service Factor	HHP	Voltage	Full Load Amps	kW	SFHP	FREQUENCY	Primary Listings and Certifications	Port Size (NPT)	Carton Wt. (Lbs)	Purchase Options
013002	4.0	6.9	1.0	1.88	230	16	3.2	3.95	50/60 Hz	UL‡, NSF/ANSI 50§, CSA, ASME, ETL APSP	2 in. x 2 in.	55	Available Through Dealer

Item #	THP	WEF	Service Factor	HHP	Voltage	Full Load Amps	kW	SFHP	FREQUENCY	Primary Listings and Certifications	Port Size (NPT)	Carton Wt. (Lbs)	Purchase Options
013002	4.0	6.9	1.0	1.88	230	16	3.2	3.95	50/60 Hz	UL‡, NSF/ANSI 50§, CSA, ASME, ETL APSP	2 in. x 2 in.	55	Available Through Dealer

Show less

Item #	THP	WEF	Service Factor	HHP	Voltage	Full Load Amps	kW	SFHP	FREQUENCY	Primary Listings and Certifications	Port Size (NPT)	Carton Wt. (Lbs)	Purchase Options
013002	4.0	6.9	1.0	1.88	230	16	3.2	3.95	50/60 Hz	UL‡, NSF/ANSI 50§, CSA, ASME, ETL APSP	2 in. x 2 in.	55	Available Through Dealer

Show less

_{‡ ‘UL’ indicates that the pump bears a UL mark, and/or a cUL mark, signifying evaluation to UL 1081, the US Standard for Safety of Swimming Pools Pumps, Filters, and Chlorinators, and/or to CSA C22.2 No. 108, the Canadian Standard for Liquid Pumps.}

_{§ ‘NSF/ANSI 50’ indicates that the pump bears a mark signifying evaluation to NSF/ANSI/CAN 50, the Standard for Equipment and Chemicals for Swimming Pools, Spas, Hot Tubs, and Other Recreational Water Facilities.}

Support & Resource Tools

Know Your Water. Own Your Water.

Have Questions About This Product?

We have answers! Visit the Help Center for expert insights from Pentair Pool.

Search the Help Center

* Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm, plumbing size and length, pump model, service factor and other hydraulic factors.
