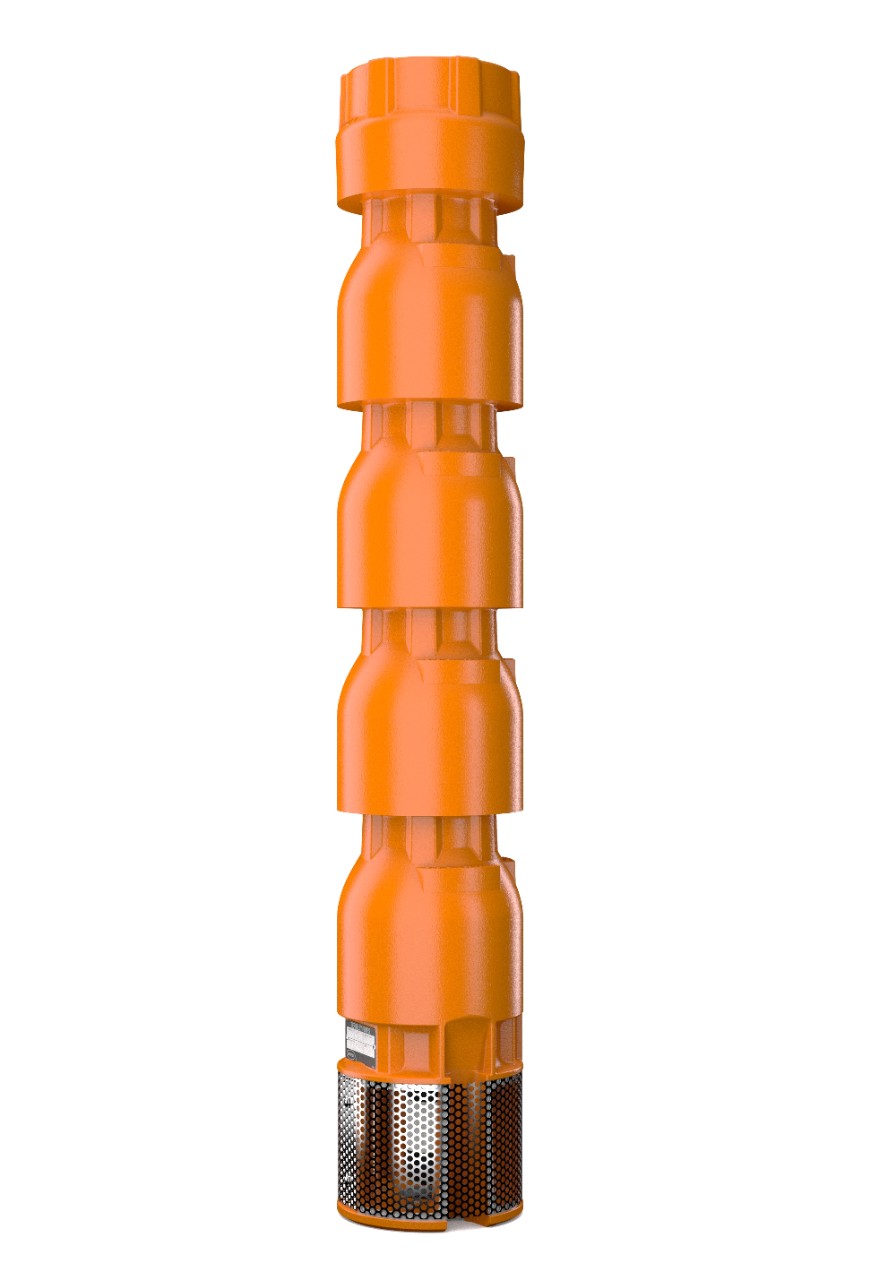

Pentair Berkeley 6TMH Submersible Turbine Pumps

The 6TMH pump series features abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions, and delivers industry-leading efficiencies and head per stage.
  • Factory pre-set upthrust screw is retained by a stainless steel lockout, providing maximum upthrust protection
  • Threaded discharge with large wrench flats and sized for the pumps flow range
  • Low friction discharge bearing, no water swell, long life. Specific for water-immersed applications, clean or dirty
  • Precision ground and polished shaft for reduced running friction and increased service life
  • Smooth and efficient impeller provides performance and long life
  • Heavy-walled bowls incorporate precision hydraulic design for maximum efficiency and performance.
  • Lead guard protects the motor leads across the full length of the pump
  • Uniquely designed isolator bearings channel abrasives away from the stainless steel shaft bearing journal
  • Suction bracket machined for both 4 and 6 motor registers. Designed to effectively divert debris away from the spline engagement area, maximizing durability
  • Form fitted suction screen provides corrosion resistance, and prevents particulates larger than .19 (4.8 mm) from entering the pump
  • Fully machined motor coupling for positive fit; highly corrosion resistant
Explore purchase options available for this product.
Where to Buy

Resources

Downloads

Specifications

Item #MOTOR COUPLINGBOWLSIMPELLER & SUCTION SCREENUPTHRUST SCREW & NUTLEAD GUARDMOTOR BRACKET & DISCHARGESAND BOOTISOLATOR BEARINGSDISCHARGE BEARINGPrimary Product AttributesPrimary Product Attributes
6TMH
Item #MOTOR COUPLINGBOWLSIMPELLER & SUCTION SCREENUPTHRUST SCREW & NUTLEAD GUARDMOTOR BRACKET & DISCHARGESAND BOOTISOLATOR BEARINGSDISCHARGE BEARINGPrimary Product AttributesPrimary Product Attributes
6TMH
