Pentair Shurflo 1100 Series Diaphragm Pumps
Main Content Starts Here

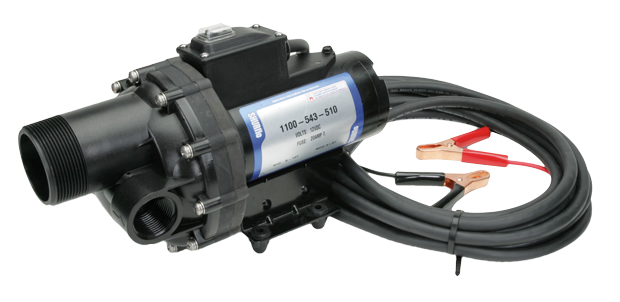

Pentair Shurflo 1100 Series Diaphragm Pumps
The Shurflo® 1100 Series General Utility Transfer Pump is a highly-efficient, 12 VDC, Positive displacement pump. This Self-Priming, Chemically-Resistant pump offers 10+ GPM flow with a surprisingly low amp draw. The 1100 Series features a 5-Chamber design with Co-Molded Pistons for increased durability, and is equipped with a 12 Power Cord with Inline Fuse and Battery Clips for maximum flexibility. For a high-flow, transfer pump that can efficiently handle a wide range of viscosities, the 1100 Series is the pump of choice.
- Self-Priming up to 12 Feet [3.7M]
- Available in Both EPDM and Viton® Versions
- Easily Field Repairable
- Splash-Proof On/Off Switch
- Internal Bypass for Pump Protection
- Ability to Handle Low to High Viscosity Liquids
Specifications
Port Sizes:
2" NPT-M Inlet; 1" NPT-F Outlet
Motor Wiring:
12' Cord W/ Battery Clips
Housing Material:
Polypropylene
Item # | Voltage | Open Flow GPM | Amps (Max) | Control Pressure | Control Type | Valve Material |
---|---|---|---|---|---|---|
1100-543-510 | 12 VDC | 10 | 15 | 20 | Bypass | Viton |
1100-743-510 | 12 VDC | 10 | 15 | 20 | Bypass | EPDM |
1100-743-519 | 12 VDC | 10 | 15 | 20 | Bypass | EPDM |
1100-753-519 | 24 VDC | 10 | 7.5 | 20 | Bypass | EPDM |
Item # | Voltage | Open Flow GPM | Amps (Max) | Control Pressure | Control Type | Valve Material |
---|---|---|---|---|---|---|
1100-543-510 | 12 VDC | 10 | 15 | 20 | Bypass | Viton |
1100-743-510 | 12 VDC | 10 | 15 | 20 | Bypass | EPDM |
1100-743-519 | 12 VDC | 10 | 15 | 20 | Bypass | EPDM |
1100-753-519 | 24 VDC | 10 | 7.5 | 20 | Bypass | EPDM |
