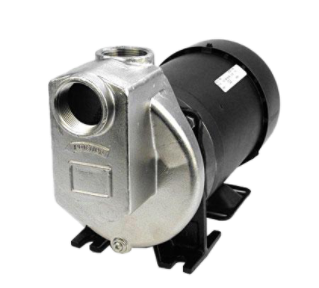

The Shurflo® self-priming close-coupled 316 stainless steel centrifugal pumps produce high flow rates under low head conditions. Designed for continuous low pressure circulation and transfer of non-flammable liquids, water circulation, irrigation, spraying systems, jockey pump service, aggressive liquid applications and other general-purpose pumping compatible with pump component materials where suction lift is required. L-4068 OIPM L-4077 Motor Manual L-4071 Seal Information

• Capacities to 130 GPM, Heads to 63 ft
• 3/4 to 2 HP AC NEMA 56J Frame Single and Three-Phase TEFC Motors
• Pumps Self-Prime to 6 Feet and Handle Liquids with Entrapped Gases
• Designed to Handle Specific Gravities up to 1.3 on 3/4 and 1 1⁄2 HP Models
• On 2 HP Models Fluids with Specific Gravity of 1.1 can be Handled
• Clog-Resistant Semi-Open Impellers Handle Solids to 3/8" Diameter
• Maximum Viscosity to 100 SSU
• Maximum Torque Allowed is 65 in.-lbs
• Maximum Casing Working Pressure is 75 PSI
• 1 1⁄2" Female NPT Inlet and Outlet Port
• Handles Temperatures to 250° F
• Pumps are Equipped with a Carbon Ceramic Viton® Mechanical Seal Having 316 Stainless Steel Components
