Pentair Simer 3985C Pre-Plumbed 1/2 HP Sump Pump / Basin System

Main Content Starts Here

Pentair Simer 3985C Pre-Plumbed 1/2 HP Sump Pump / Basin System

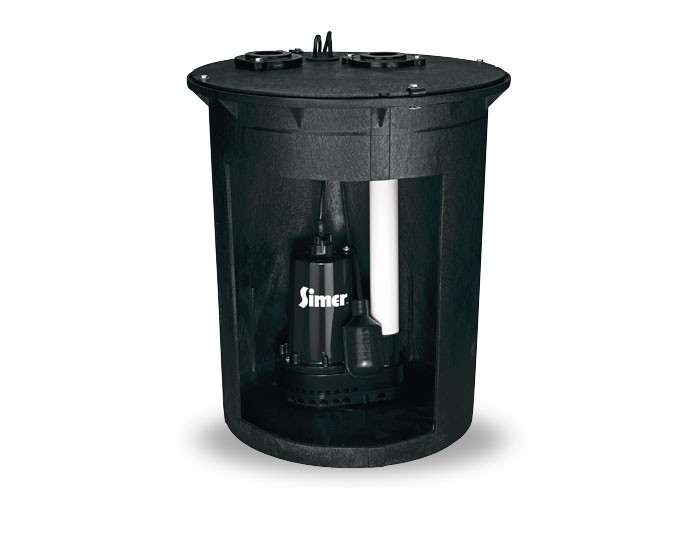

The Simer® Sump Pump System, Model Number 3985C, is ideal for basement and cellar installations. It includes a submersible sump pump and a corrosion-resistant sump basin and lid. The pump features a flush-mount system for maximum discharge of the basin. All components of the sump pump system are preassembled at the factory for easy installation.

Key Features

  • Convenient package includes most everything you need
  • The supplied hardware kit includes a rubber inlet hub and a cord grommet
  • Kit includes powerful 1/2 HP pump

Warranty

1-year limited warranty

Performance Curves

PerformanceCurves_Pre-Plumbed 1/2 HP Sump Pump / Basin System

Specifications

BODY CONSTRUCTION:  Thermoplastic pump, Structural Foam Basin & Lid

HORSEPOWER:  1/2 HP

MAXIMUM HEAD:  28'

MAXIMUM CAPACITY:  2580 GPH

FLOW AT 10' LIFT:  1800 GPH

SWITCH TYPE:  Vertical

SWITCH ON LEVEL:  7-1/2"

SWITCH OFF LEVEL:  3"

BASIN DIAMETER:

BASIN DEPTH:

DISCHARGE PIPE SIZE:  1-1/2"

MINIMUM PIPE SIZE:  1-1/4'

MAXIMUM SOLIDS HANDLING:  1/4"

AMP DRAW:  9.5 amps at max load

CORD LENGTH:

VOLTAGE:  115v AC, 60 Hz

RECOMMENDED BREAKER:  15 amps

MAXIMUM LIQUID TEMPERATURE:  120°F (50°C)
