Pentair Simer 4190 1 HP Zinc Body Submersible High Output Sump Pump

From our most highly engineered sump pump line, our 1 HP pump is the highest performer, moving over 6,600 gallons per hour! Choose this pump and relax knowing your home is protected

KEY FEATURES

  • Corrosion Resistant Zinc Construction - Dissipates heat quickly and extends motor life
  • Uni-Body Motor Housing - Eliminates leak points and maximizes pump life
  • Stainless Steel Fasteners and Hardware - Superior quality
  • Quadra SealTM Technology - Provides superior motor protection over single seal designs
  • Smooth Flow Hydraulics - Deliver high performance for demanding applications
  • Vertical Float Switch - Operates in 10” basins or larger

WARRANTY

3-year limited warranty

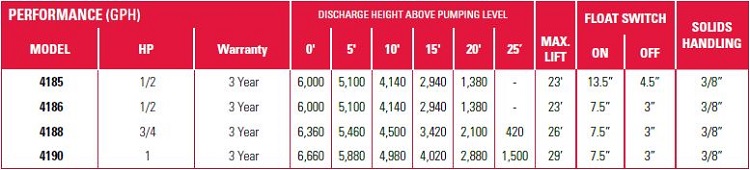

Performance Curves

PerformanceCurves_1 HP Zinc Body Submersible High Output Sump Pump, Vertical Switch

Specifications

BODY CONSTRUCTION:  Zinc
SWITCH TYPE:  Vertical Float
CORD LENGTH:  8'
SWITCH 'ON' LEVEL:  7-1/2"
MAXIMUM CAPACITY:  6,660 GPH
BODY CONSTRUCTION:  4,980 GPH
SWITCH 'OFF' LEVEL:  3"
VOLTAGE:  115 VAC, 60 Hz
MINIMUM SUMP DIAMETER:  10"
DISCHARGE PIPE SIZE:  1 1/2” NPT
HORSEPOWER:  1
