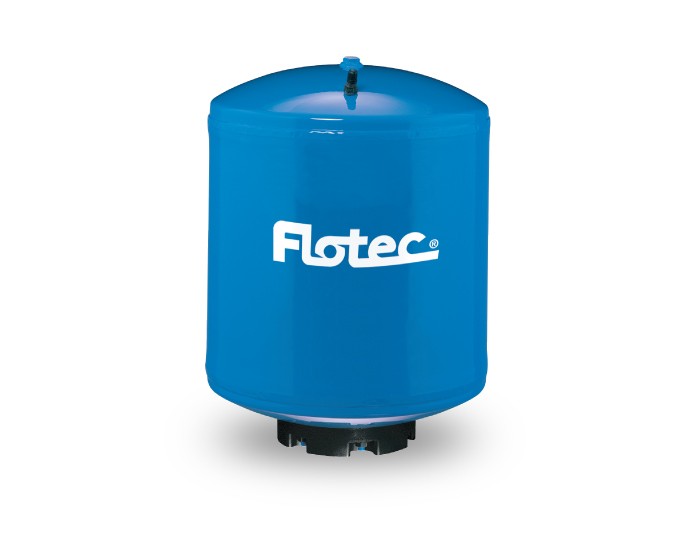

Pentair Flotec FP7105 6 Gallon Pre-Charged Pressure Tank (Vertical)

Pre-charged pressure tanks require 50% less space than standard conventional tanks while providing greater water capacity between pump cycles for maximum system life. These very small tanks are great for very small water systems where space is at a premium.

Key Features

  • Tough, appliance-like finish for extended life
  • Heavy gauge steel construction for maximum durability
  • Convenient size is great for low-flow applications and very small water systems.

Warranty

5 year limited warranty

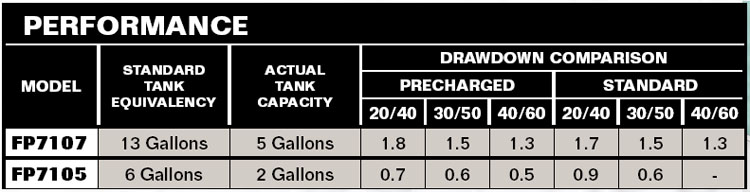

Performance Curves

PerformanceCurves_Pre-Charged Pressure Tank (Vertical) - 6 Gallons

Specifications

POSITION:  Vertical
TYPE:  Pre-charged Diaphragm Style
ACTUAL CAPACITY:  2 gallons
RATED CAPACITY:  6 gallon equivalency
DIMENSIONS (DIA. / HEIGHT):  8" / 13"
PIPE CONNECTION:  3/4" NPT
MAXIMUM PRESSURE RATING:  100 PSI
