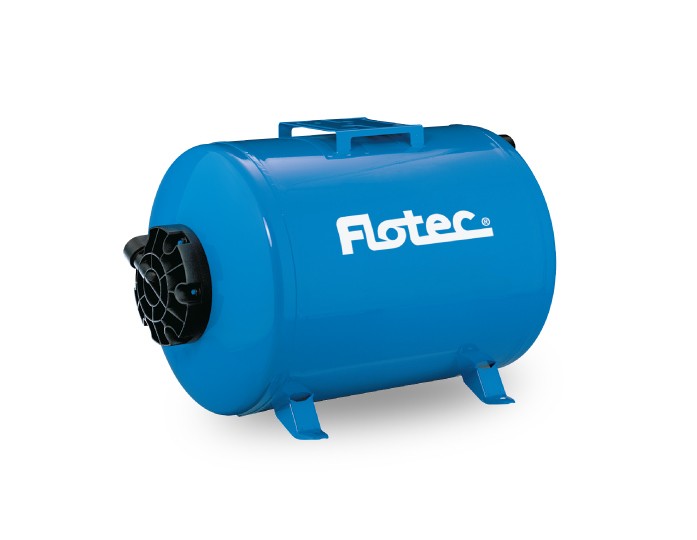

Pentair Flotec FP7110TH 42 Gallon Pre-Charged Pressure Tank (Horizontal)

Main Content Starts Here

Pentair Flotec FP7110TH 42 Gallon Pre-Charged Pressure Tank (Horizontal)

This series of tough, durable Flotec precharged tanks offers efficiency and convenience.

Key Features

  • Convenient size for cabins and summer homes; ideal for continuous use applications such as lawn sprinkling
  • Tough, appliance-like finish for extended life
  • Water never touches metal components
  • Replaceable air/water separator for easy maintenance

Warranty

5 year limited warranty

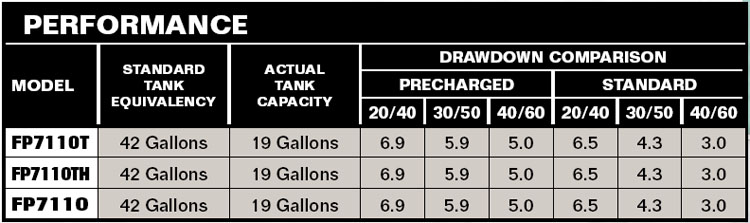

Performance Curves

PerformanceCurves_Pre-Charged Pressure Tank (Horizontal) - 42 Gallons

Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked on Polyester
TANK PRECHARGE:  40 psi Nitrogen-Rich charge
TANK CAPACITY:  19 gal
EQUIVALENCY RATING:  42 gal
DRAWDOWN WITH 20/40 SWITCH:  6.9 gal
DRAWDOWN WITH 30/50 SWITCH:  5.8 gal
DRAWDOWN WITH 40/60 SWITCH:  5.0 gal
BLADDER / WATER CELL:  One Piece Seamless PVC
TANK DIAMETER:  16"
TANK HEIGHT:  18"
FLANGE:  Glass-Filled Polypropylene
PIPE TAP SIZE:  1" NPT
MAXIMUM PRESSURE RATING:  100 PSI
