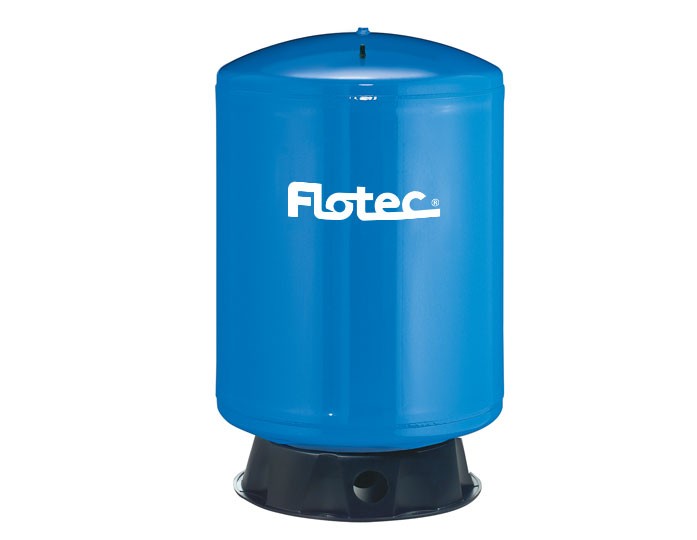

Pentair Flotec FP7130 220 Gallon Pre-Charged Pressure Tank (Vertical)

Main Content Starts Here

Pentair Flotec FP7130 220 Gallon Pre-Charged Pressure Tank (Vertical)

Pre-charged pressure tanks require 50% less space than standard conventional tanks while providing greater water capacity between pump cycles for maximum system life.

Key Features

  • Tough, appliance-like finish for extended life
  • Water never touches metal components
  • Replaceable air/water separator for easy maintenance
  • Convenient air valve location for quick hook up

Warranty

5 year limited warranty

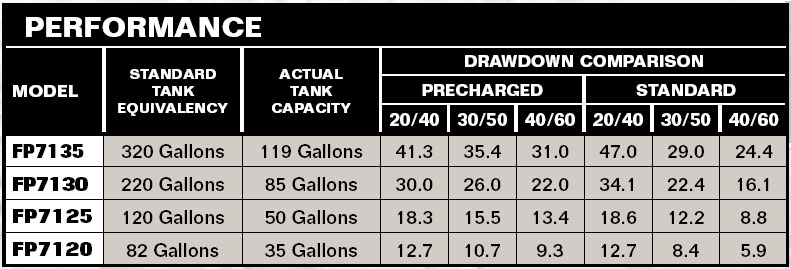

Performance Curves



Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked On Polyester
TANK PRECHARGE:  40 psi Nitrogen-Rich Charge
TANK CAPACITY:  85 gallons
EQUIVALENCY RATING:  220 gallons
DRAWDOWN WITH 20/40 SWITCH:  30 gal
DRAWDOWN WITH 30/50 SWITCH:  26 gal
DRAW DOWN WITH 40/60 SWITCH:  22 gal
BLADDER / WATER CELL:  One-Piece Seamless PVC
TANK DIAMETER:  24"
TANK HEIGHT:  52"
FLANGE:  Glass-Filled Polypropylene
PIPE TAP SIZE:  1-1/4" NPT
MAXIMUM PRESSURE RATING:  100 PSI
