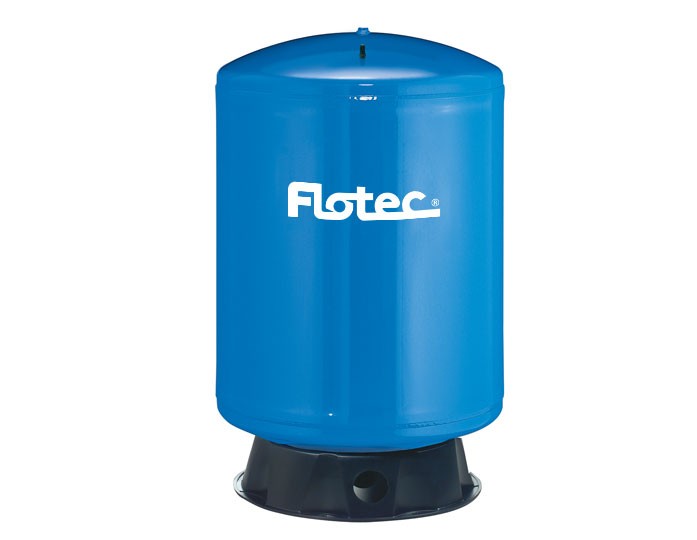

Pentair Flotec FP7135 320 Gallon Pre-Charged Pressure Tank (Vertical)

Pre-charged pressure tanks require 50% less space than standard conventional tanks while providing greater water capacity between pump cycles for maximum system life.

Key Features

  • Tough, appliance-like finish for extended life
  • Water never touches metal components
  • Replaceable air/water separator for easy maintenance
  • Convenient air valve location for quick hook up

Warranty

5 year limited warranty

Performance Curves



Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked on Polyester
TANK PRECHARGE:  40 psi Nitrogen-Rich charge
TANK CAPACITY:  119 gallons
EQUIVALENCY RATING:  320 gallons
DRAWDOWN WITH 20/40 SWITCH:  41.3 gal
DRAWDOWN WITH 30/50 SWITCH:  35.4 gal
DRAWDOWN WITH 40/60 SWITCH:  31 gal
BLADDER / WATER CELL:  One Piece Seamless PVC
TANK DIAMETER:  24"
TANK HEIGHT:  68"
FLANGE:  Glass-Filled Polypropylene
PIPE TAP SIZE:  1-1/4" NPT
MAXIMUM PRESSURE RATING:  100 PSI
