Pentair Flotec FP7200 12 Gallon Air-Over-Water Pressure Tank (Horizontal)

Main Content Starts Here

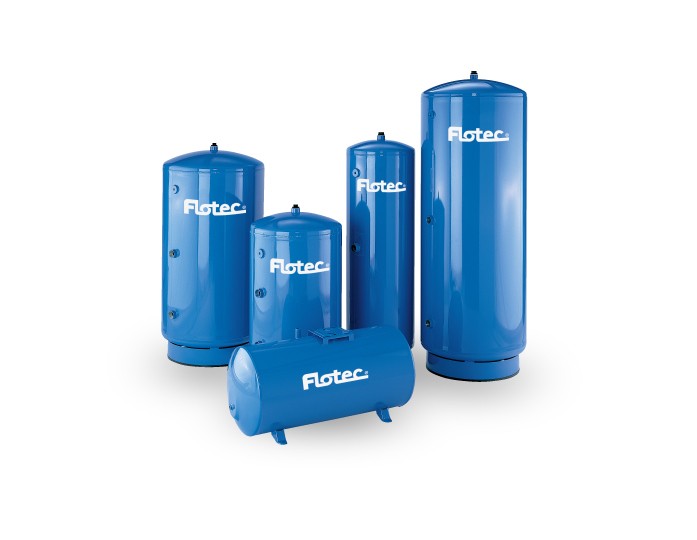

Pentair Flotec FP7200 12 Gallon Air-Over-Water Pressure Tank (Horizontal)

Epoxy-lined standard water tanks are excellent corrosion resistant tanks for home water systems applications such as retention tank, holding tank and pressure tank.

Key Features

  • Replaces any standard galvanized, glass-lined or epoxy-lined tank
  • Precision press fit design minimizes gaps between components, reducing the possibility of corrosion and seam leaks
  • Tough polyester exterior paint
  • Air volume control tap is standard

Warranty

1 year limited warranty

Performance Curves

PerformanceCurves_Air-Over-Water Pressure Tank (Horizontal) - 12 Gallons

Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked on Polyester
TANK CAPACITY:  12 gal
STYLE:  Horizontal
TANK DIAMETER:  12"
TANK HEIGHT:  13-1/2"
LENGTH:  26-1/2"
PIPE TAP SIZE:  3/4"
