Pentair Flotec FP415515H 1/2 HP Cast Iron Shallow Well Jet Pump / Tank Combination

Main Content Starts Here

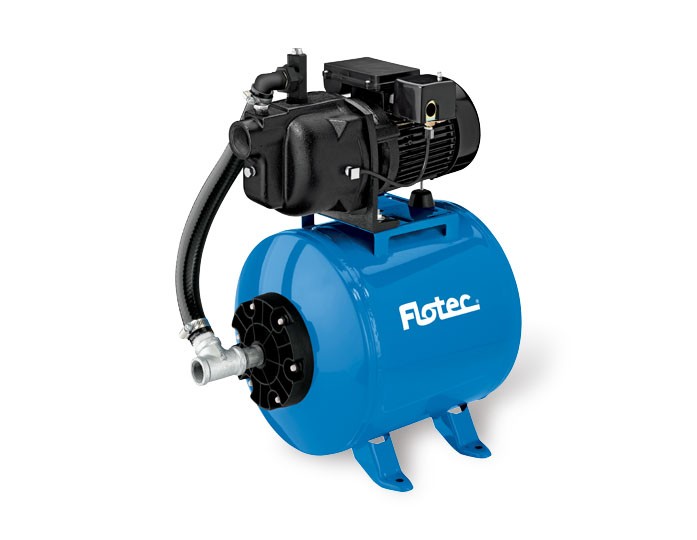

Pentair Flotec FP415515H 1/2 HP Cast Iron Shallow Well Jet Pump / Tank Combination

Convenient pump / tank combination unit is perfect for low-demand use where space is at a premium such as mobile homes, cottages, cabins, or boats. Comes fully assembled -- just connect pipes and electric, prime, and you're set.

KEY FEATURES

  • Compact System -- Complete With All Connectors From Pump to Tank
  • Heavy-Duty Dual Voltage Motor -- Runs on 115v or 230v  (factory preset to 115v)
  • Durable Construction -- Tough Cast Iron Pump Housing
  • Pre-Charged Pressure Tank -- Corrosion-Resistant Epoxy Coated Steel

WARRANTY

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

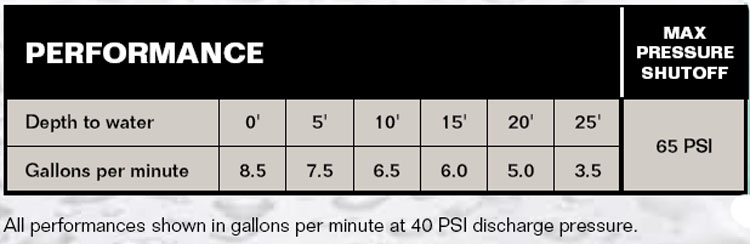

Performance Curves

PerformanceCurves_1/2 HP Cast Iron Shallow Well Jet Pump / Tank Combination

Specifications

Body Construction: Pump: Cast Iron / Tank: Steel Body w/ Vinyl Bladder
MAX LIFT: 25'
PRESSURE SWITCH SETTING: 30/50
SUCTION SIZE: 1-1/4" NPT
DISCHARGE SIZE: 1" NPT
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIST and 40 PSIMAX SHUT-OFF PRESSUREAMP DRAWVoltageRECOMMENDED BREAKER
FP415515H1/2 HP8.5 GPM (32.1 LPM)6.5 GPM (24.6 LPM)65 PSI8.5 amps on 115v / 4.2 amps on 230v115v / 230v AC, 60 Hz (factory preset at 115v)15 amp
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIST and 40 PSIMAX SHUT-OFF PRESSUREAMP DRAWVoltageRECOMMENDED BREAKER
FP415515H1/2 HP8.5 GPM (32.1 LPM)6.5 GPM (24.6 LPM)65 PSI8.5 amps on 115v / 4.2 amps on 230v115v / 230v AC, 60 Hz (factory preset at 115v)15 amp
