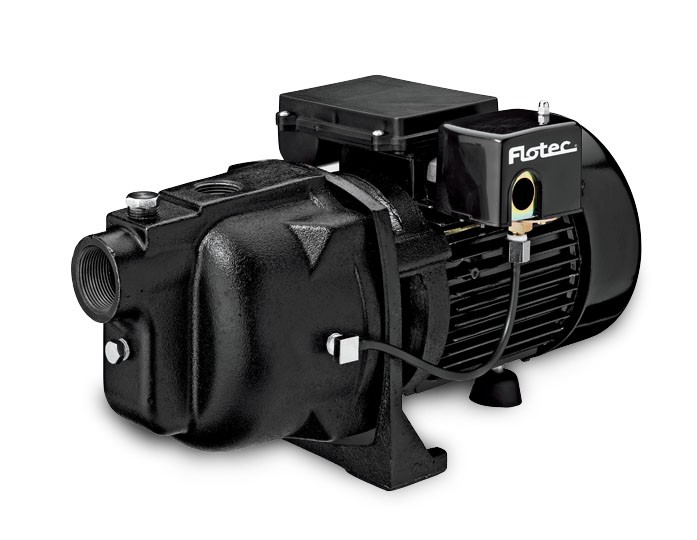

Pentair Flotec FP4157 3/4 HP Cast Iron Shallow Well Jet Pump

Sturdy 3/4 HP cast iron shallow well jet pump is great for homes, camps, trailers, or other places that get water from a shallow well of 25' depth-to-water or less.

KEY FEATURES

  • Durable Cast Iron Construction, Superior Performance Drawing From 25' Depth-to-Water or Less
  • Built-In Prewired Pressure Switch
  • Heavy-Duty Dual Voltage Motor Can Run on 230v or 115v

WARRANTY

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

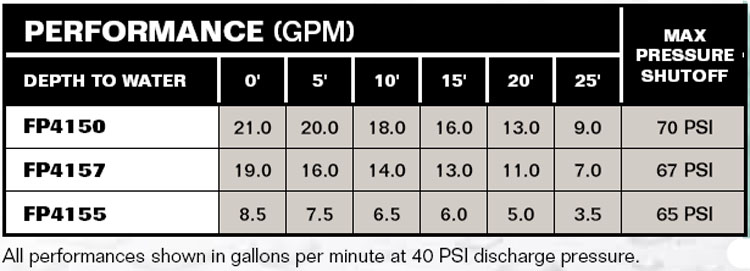

Performance Curves



Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  3/4 HP
MAXIMUM CAPACITY:  19 GPM (71.9 LPM)
FLOW at 10' LIFT and 40 PSI:  14 GPM (52.9 LPM)
MAX LIFT:  25'
MAX SHUT-OFF PRESSURE:  67 PSI
PRESSURE SWITCH SETTING:  30/50
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  11.0 amps on 115v / 5.5 amps on 230v
VOLTAGE:  230v/115v AC, 60 Hz (factory preset to 230v)
RECOMMENDED BREAKER:  15 amp for 230v / 20 amp for 115v
MAXIMUM WATER TEMPERATURE:
