Pentair Flotec FP5172 1.5 HP Thermoplastic Sprinkler Pump

Corrosion-resistant, self priming sprinkler pumps are constructed of rugged, heavy-duty fiberglass-reinforced thermoplastic

KEY FEATURES

  • Superior performance at depths to water of 20' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor (dual voltage)
  • Self-priming after pump housing is initially filled (Check Valve or Foot Valve required)

WARRANTY

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

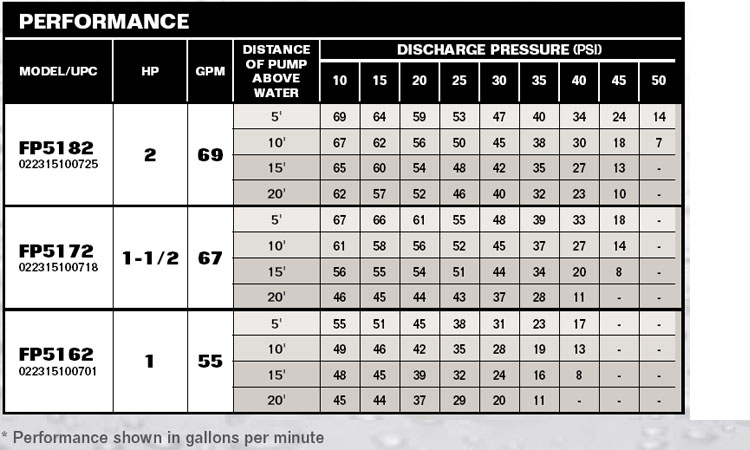

Performance Curves

Performance Curve for FP5182, FP5172, FP5162

Specifications

Item #Horsepower
FP5172-081-1/2
Item #Horsepower
FP5172-081-1/2
Show less

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  1-1/2
MAXIMUM CAPACITY:  67 GPM
FLOW at 10' LIFT and 30 PSI:  45 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  47 psi
SUCTION PIPE SIZE:  1-1/2" NPT
DISCHARGE PIPE SIZE:  1-1/2" NPT
AMP DRAW (full load):  9.6 amps on 230v / 19.2 amps on 115v
VOLTAGE:  230v / 115v , 60 Hz
RECOMMENDED BREAKER:  15 amp for 230v / 25 amp for 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
