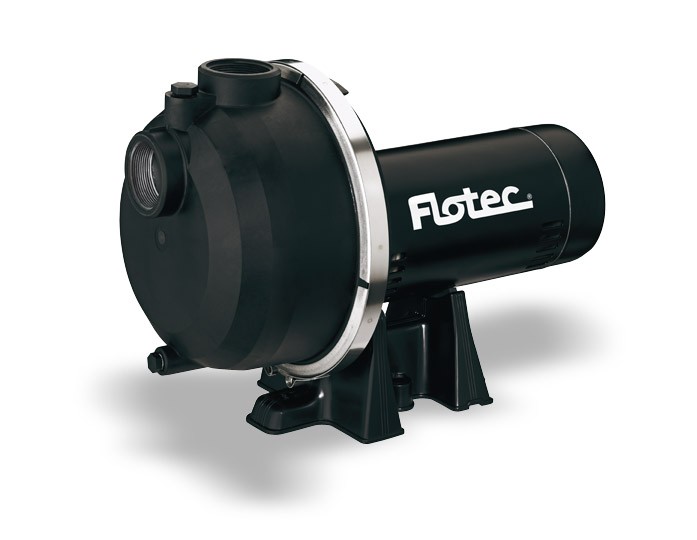

- Pentair Flotec FP5182 2 HP Thermoplastic Sprinkler Pump

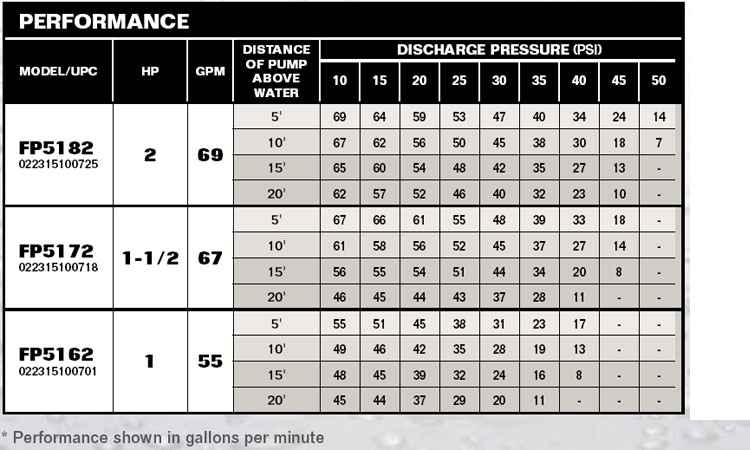

PERFORMANCE CURVES
Specifications
BODY CONSTRUCTION: Thermoplastic
HORSEPOWER: 2
MAXIMUM CAPACITY: 69 GPM
FLOW AT 10' LIFT and 30 PSI: 45 GPM
MAX LIFT: 25'
MAXIMUM PRESSURE: 50 psi
SUCTION PIPE SIZE: 2" NPT
DISCHARGE PIPE SIZE: 2" NPT
AMP DRAW: 12 amps on 230v / 24 amps on 115v
VOLTAGE: 230v / 115v, 60 Hz
RECOMMENDED BREAKER: 15 amp for 230v / 30 amp for 115v
MAXIMUM WATER TEMPERATURE: 140 °F (60 °C)
