Pentair Simer 2800-01 1/2 HP Cast Iron Shallow Well Jet Pump

Main Content Starts Here

Pentair Simer 2800-01 1/2 HP Cast Iron Shallow Well Jet Pump

Cast iron shallow well jet pump draws water from max of 25' for home water, sprinkling, etc.

Key Features

  • Heavy duty cast iron construction
  • Great performance

Warranty

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

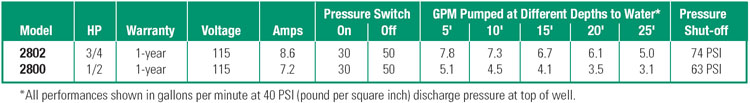

Performance Curves

PerformanceCurves_1/2 HP Cast Iron Shallow Well Jet Pump

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  5.1 GPM
FLOW AT 10' LIFT AND 40 PSI:  4.5 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  63 PSI
MAXIMUM INLET PRESSURE:
PRESSURE SWITCH SETTINGS:  30-50 PSI
SUCTION SIZE:  1" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  7.2 Amps
VOLTAGE:  115V AC, 60 Hz
RECOMMENDED BREAKER:  15 Amps
