Pentair Simer 3415P 1-1/2 HP Thermoplastic Sprinkler System Pump

With a combination of good flow and good pressure, these pumps are perfect for your in-ground sprinkler system.

Key Features

  • Superior performance at depths to water of 20' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor (dual voltage)
  • Self-priming after pump housing is initially filled (Check Valve or Foot Valve required)

Warranty

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

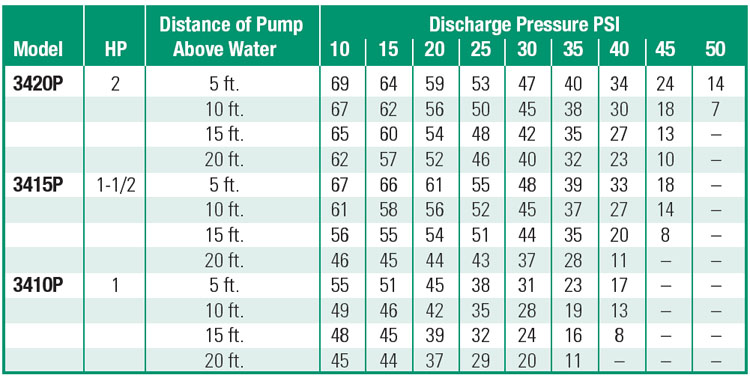

Performance Curve

PerformanceCurve_1-1/2 HP Thermoplastic Sprinkler System Pump

Specifications

Item #Horsepower
3415P1-1/2
Item #Horsepower
3415P1-1/2
Show less

BODY CONSTRUCTION:  Thermoplastic
MAXIMUM CAPACITY:  67 GPM
FLOW AT 10' LIFT AND 30 PSI:  45 GPM
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  50 PSI
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure):  67 PSI
SUCTION SIZE:  1 ½" NPT (female)
DISCHARGE SIZE:  1 ½" NPT (female)
AMP DRAW (full load):  9.6 amps on 230v / 19.2 amps on 115v
VOLTAGE:  230V / 115V 60 Hz
MAXIMUM WATER TEMPERATURE:  140°F (60°C)
